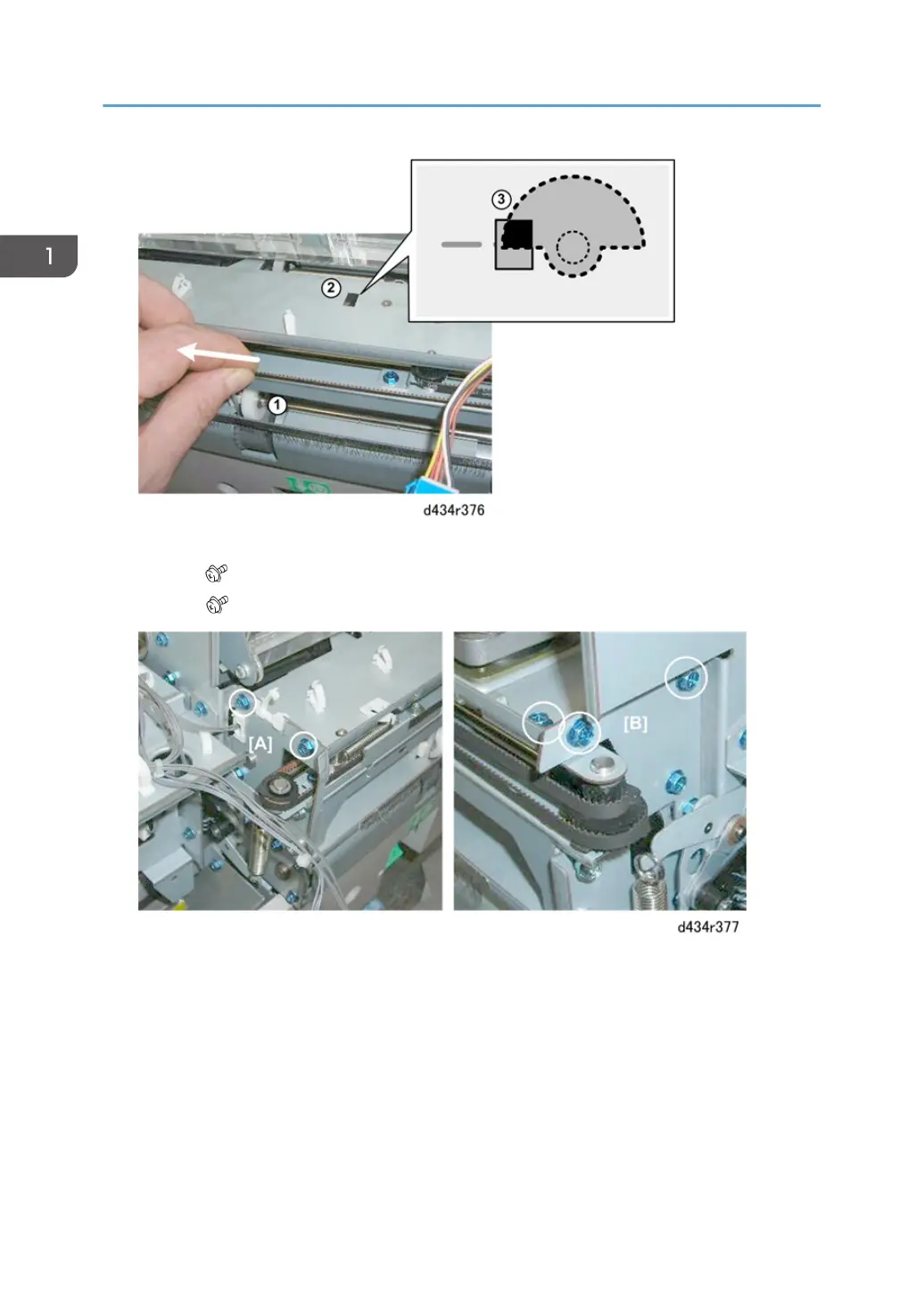

5. Remove:
[A] Rear ( x2)
[B] Front ( x3)
6. Remove base plate [A].
7. Remove end-piece [B].
1. Replacement and Adjustment
146
