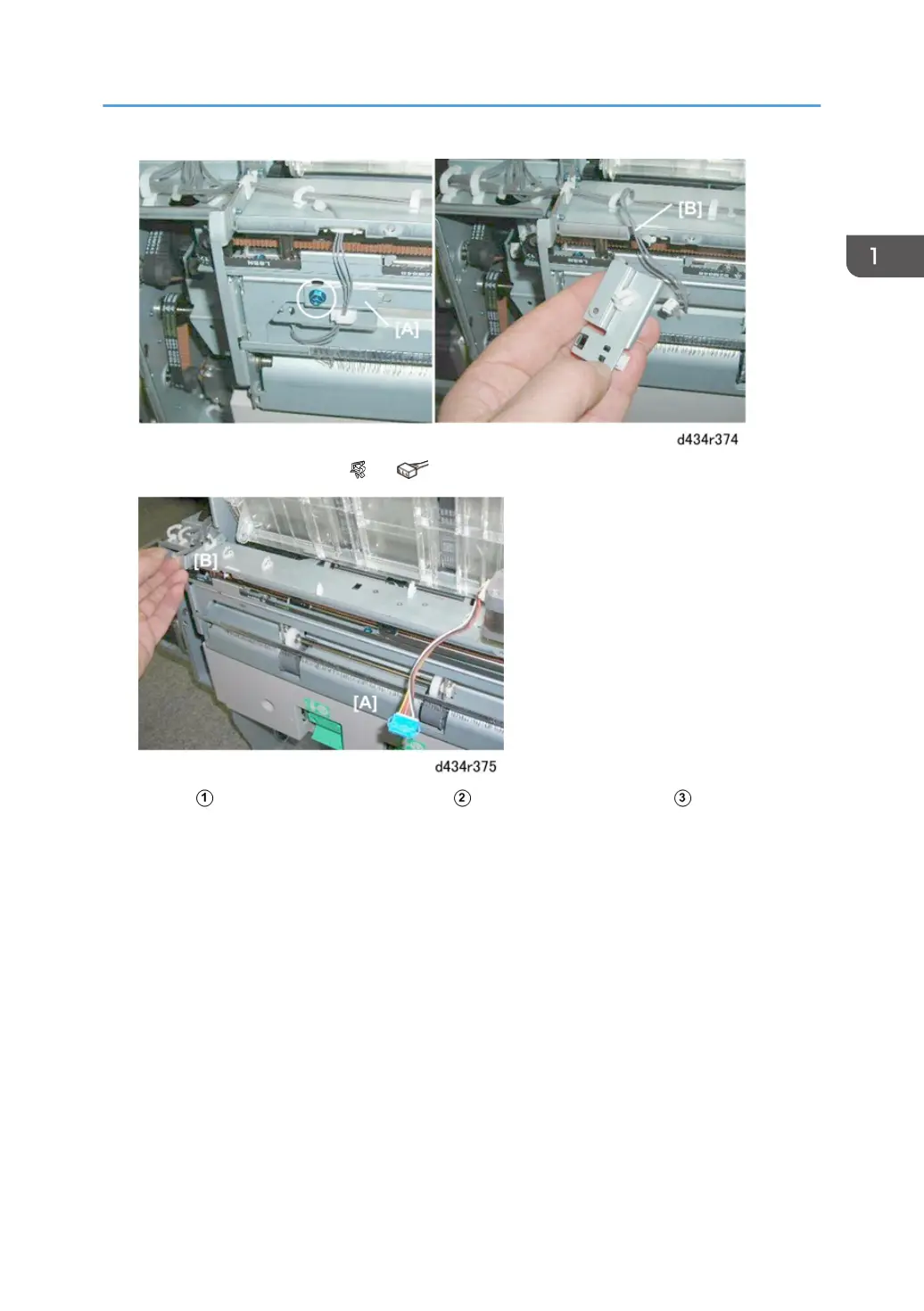

3. Disconnect motor harness [A] ( x6, x1).
4. Pull belt until you can see through the hole that the edge of the actuator below the hole is
aligned as shown.
• The edge of the actuator and the line on the left side of the hole must be aligned.
• This releases the clamp roller so that there is no pressure on the base plate.
