User’s Guide for DM3058
To Measure DC Voltage
DM3058 Multimeter enables to measure DC Voltage up to 1000V. For the details
about how to connect and measure please refer to the following steps.
Operating Steps:
1. Connecting the red lead (Test leads) to Terminal Input-HI (tested circuit) and
black lead to Terminal Input-LO as shown in Figure 2-4.

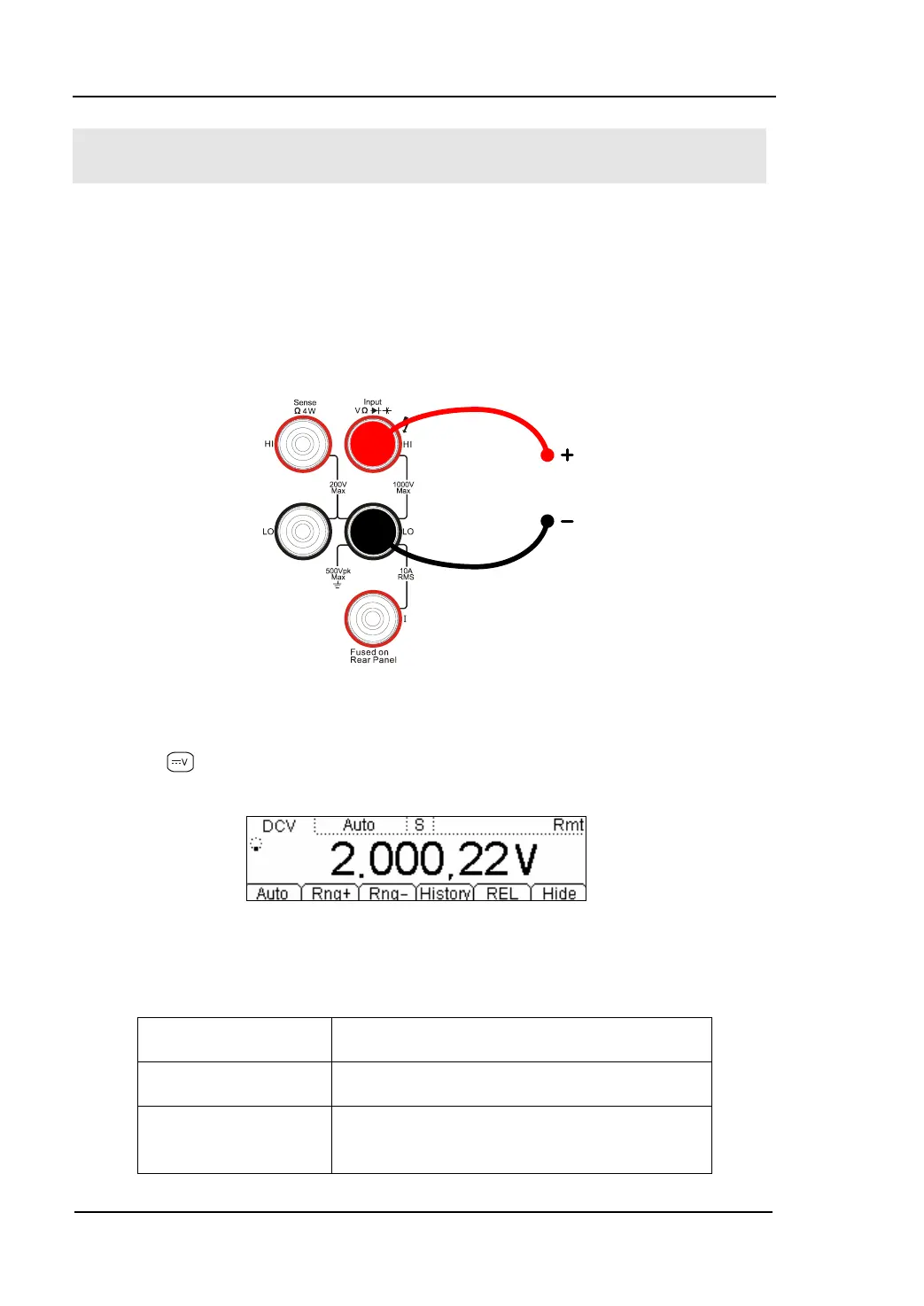

Figure 2-4 Sketch map for connecting
2. Press on the Front Panel to enter into the DC Voltage Measurement
interface.
Figure 2-5 DC Voltage Measurement Interface
3. Choose a proper Voltage range according to the measured circuit
Table 2-1 Measurement Characteristics of DC Voltage
200mV, 2V, 20V, 200V, 1000V
1000V on all ranges (HI Terminal)
Range, DC input impedance, Null value
To Next Page
