RIGOL
User’s Guide for DM3058
To Test Continuity
When the measured resistance in circuit is lower than selected one, it is considered
being connected by instrument. Next, we will introduce you how to test continuity
for circuit by using DM3058 step by step to make you familiar with this technique.
Operating Steps:
1. Connect test leads as shown in figure 2-26. Red lead connects with HI
Terminal; Black lead connects with LO Terminal.

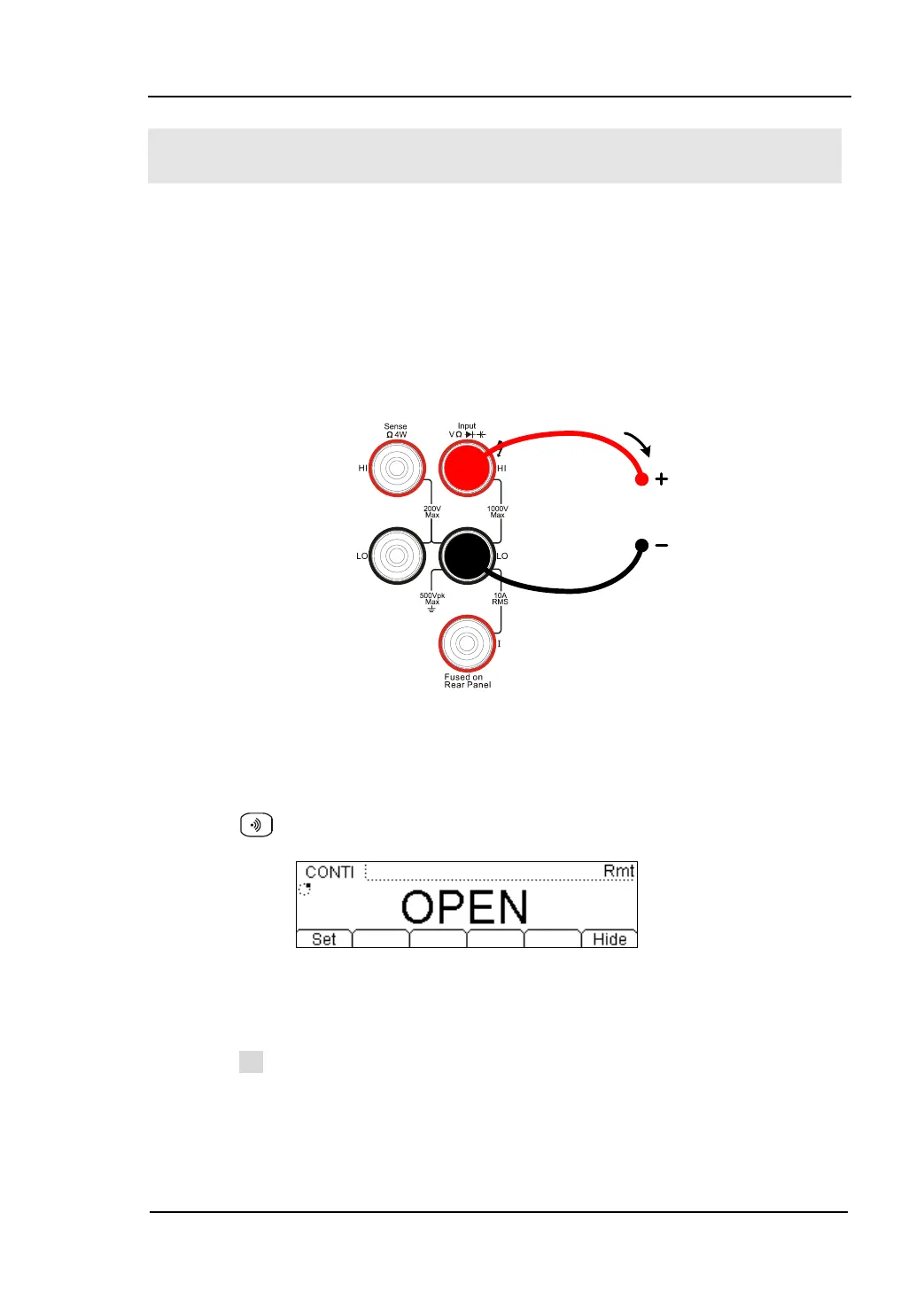

Figure 2-26 Sketch map for testing
2. Press to enter into the following interface.
Figure 2-27 Continuity Testing Interface
3. Set the Short-circuit resistance.
Press set to set up the resistance of short-circuit. The default value is set as
10Ω when leaving factory. Users may carry on the Continuity measurement
directly without modification.
