User’s Guide for DM3058
2-4
To Select Measurement Rate
DM3058 Multimeter provides three types of Measurement Rate: 2.5reading/s,
20reading/s and 120reading/s.
2.5 Reading/s belongs to Slow Rate; the mark of Status Bar is “S” and the rate of
refurbishing shows 2.5Hz.
20 Reading/s belongs to Middle Rate, the mark of Status Bar is “M” and the rate of
refurbishing shows 20Hz.
120 Reading/s belongs to Fast Rate, the mark of Status Bar is “F” and the rate of
refurbishing shows 50Hz.
Measurement Rate could be controlled by Left and Right direction key. Each press
for Left key, one level will be increased for rate, vice versa.

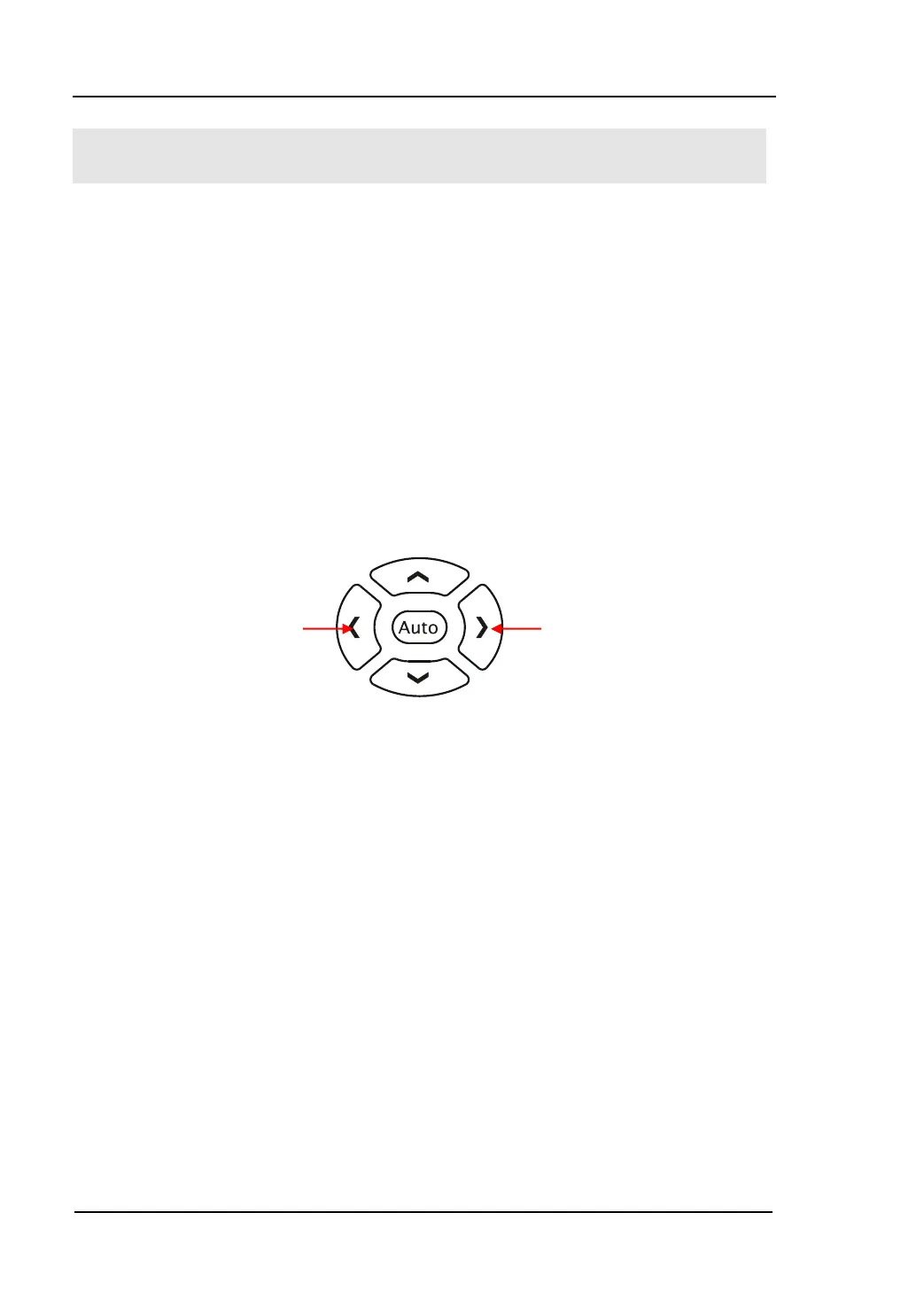

Figure 2-3 Keys for choosing Measurement Rate
Explanations
1. Three Reading rates are available for DCV、ACV、DCI、AC and Ohm
2. To set as linkage for both Reading resolution and Reading (measurement) rate.
2.5 Reading/s belongs to 5.5 digits resolution.
 Both 20 Reading/s and 120 Reading/s belong to 4.5 digits resolution.
 Sensor shows 5.5 digits as a fixation, both “M” and “S” Rate can be chosen.
 Both Diode and Continuity are fixed as 4.5 digits resolution and “Fast” Rate to
show or select.
 Freq function is fixed as 5.5 digits resolution to show, “Slow” Rage.
 Cap function is fixed to 3.5 digits resolution to show, “Slow” Rage.
Reduce speed
Increase
speed

Rigol DM3058 Specifications

General

Diode test	Yes
Product type	Digital multimeter
Frequency range	0.02 - 1000 kHz
AC current range	0.02 - 10 A
AC voltage range	0.2 - 750 V
DC current range	0.0002 - 10 A
DC voltage range	0.2 - 1000 V
Resistance range	200 - 100000000 Ω
Capacitance range	2 - 10000000 nF
Measuring category	CAT III 300V
Basic accuracy (frequency)	0.01 + 0.003
Basic accuracy (DC current)	0.055 + 0.005
Basic accuracy (DC voltage)	0.015 + 0.003
Basic accuracy (resistance)	0.020 + 0.003
Basic accuracy (capacitance)	1 + 0.5
Display digits	5.5 digits
Display size (HxV)	256 x 64 mm
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	107 mm
Width	231.6 mm
Height	290.5 mm
Weight	2500 g
