RIGOL
User’s Guide for DM3058
To Measure AC Voltage
DM3058 Multimeter enables to measure AC Voltage up to 750V. For the details
about how to connect and measure please refer to the following steps.
Operating Steps:
1. Connecting the red lead (Test leads) to Terminal Input-HI (tested circuit) and
black lead to Terminal Input-LO as shown in Figure 2-7.

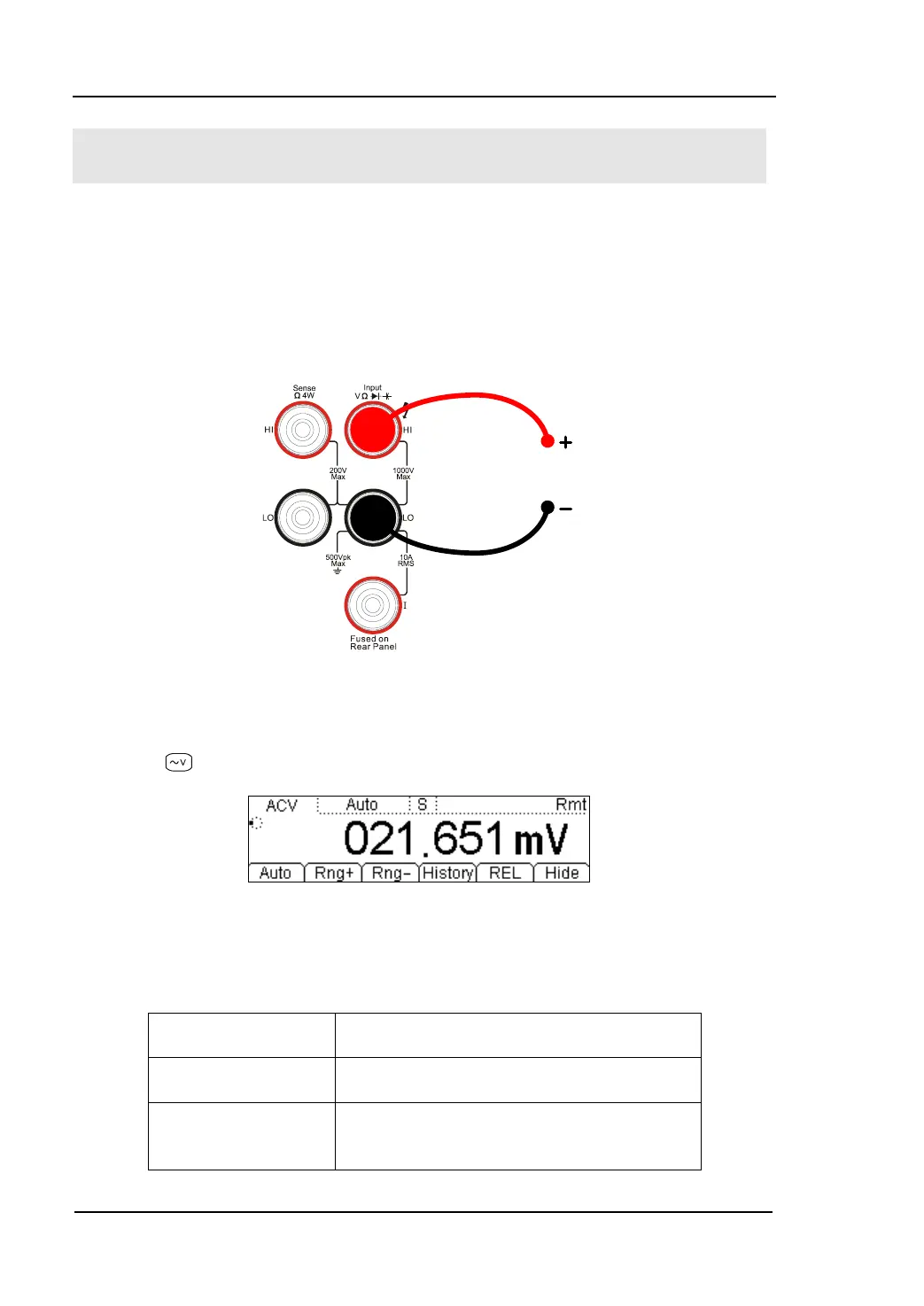

Figure 2-7 Sketch map for connecting
2. Press to enter into the AC Voltage Measurement interface.
Figure 2-8 AC Voltage Measurement Interface
3. Choose a proper Voltage range according to the measured circuit
Table 2-2 Measurement Characteristics of AC Voltage
200mV, 2V, 20V, 200V, 750V
750VRMS on all ranges (HI Terminal)
Range, DC impedance, Null value
