User’s Guide for DM3058
To Measure Resistance
The following shows the system connections and selection of measurement
functions. The practice provides a guide for getting familiar with the Resistance
measurement technique. Resistance measurement methods include 2-Wire
Resistance Measurement and 4-Wire Resistance Measurement, and will be
introduced separately.
2-Wire Resistance Measurement
Operating Steps：
1. Connecting the red lead (Test leads) to Terminal Input-HI (tested circuit) and
black lead to Terminal Input-LO as shown in Figure 2-17.

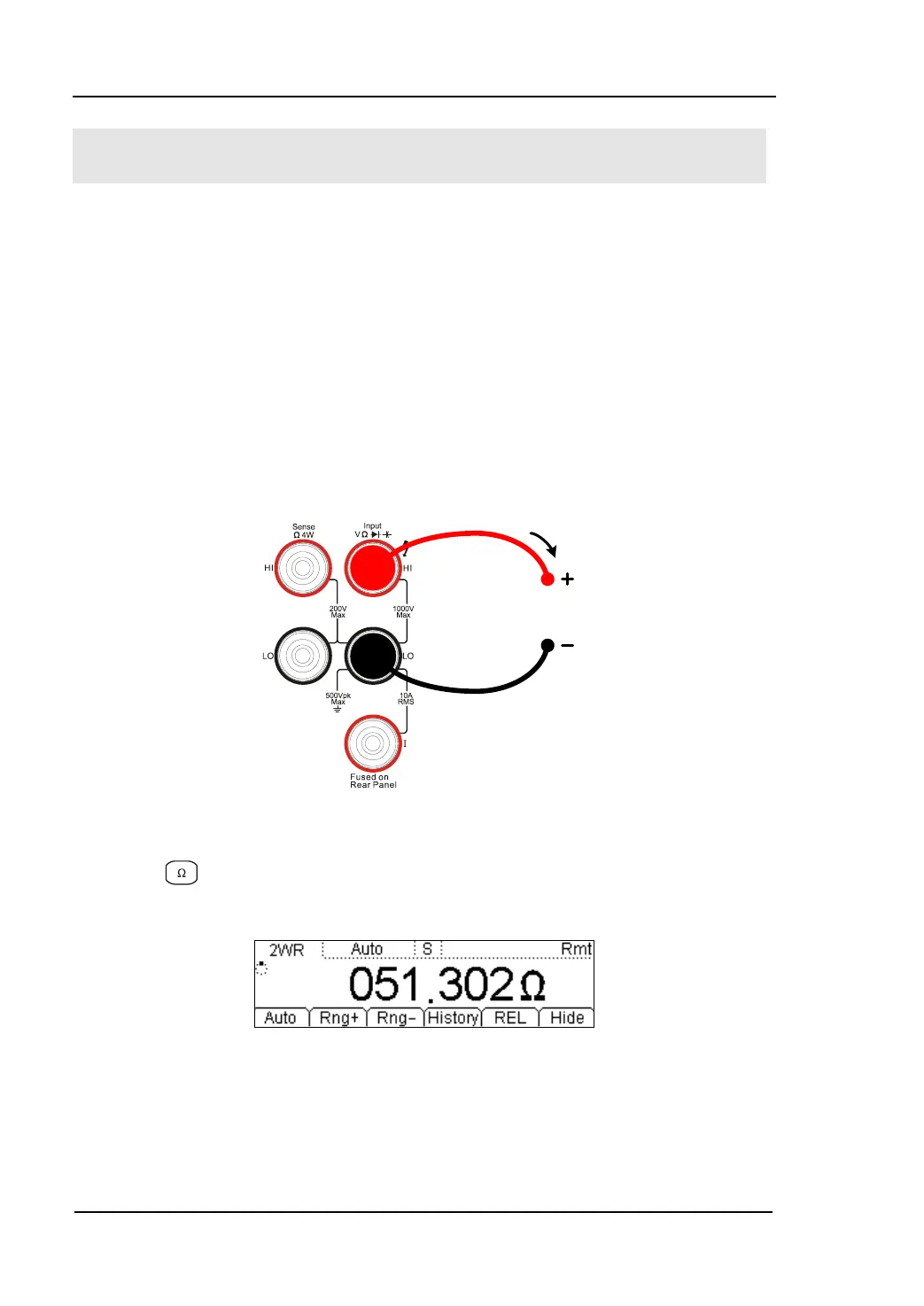

Figure 2-17 Sketch map for connecting
2. Press and select 2-Wire Resistance Measurement Mode to enter following
interface.
Figure 2-18
2-Wire Resistance Measurement Interface
3. Choose a proper Resistance range according to its scope.
