Rigol DM3058

RIGOL
User’s Guide for DM3058
2-23
To Check Diodes
Operating Steps:

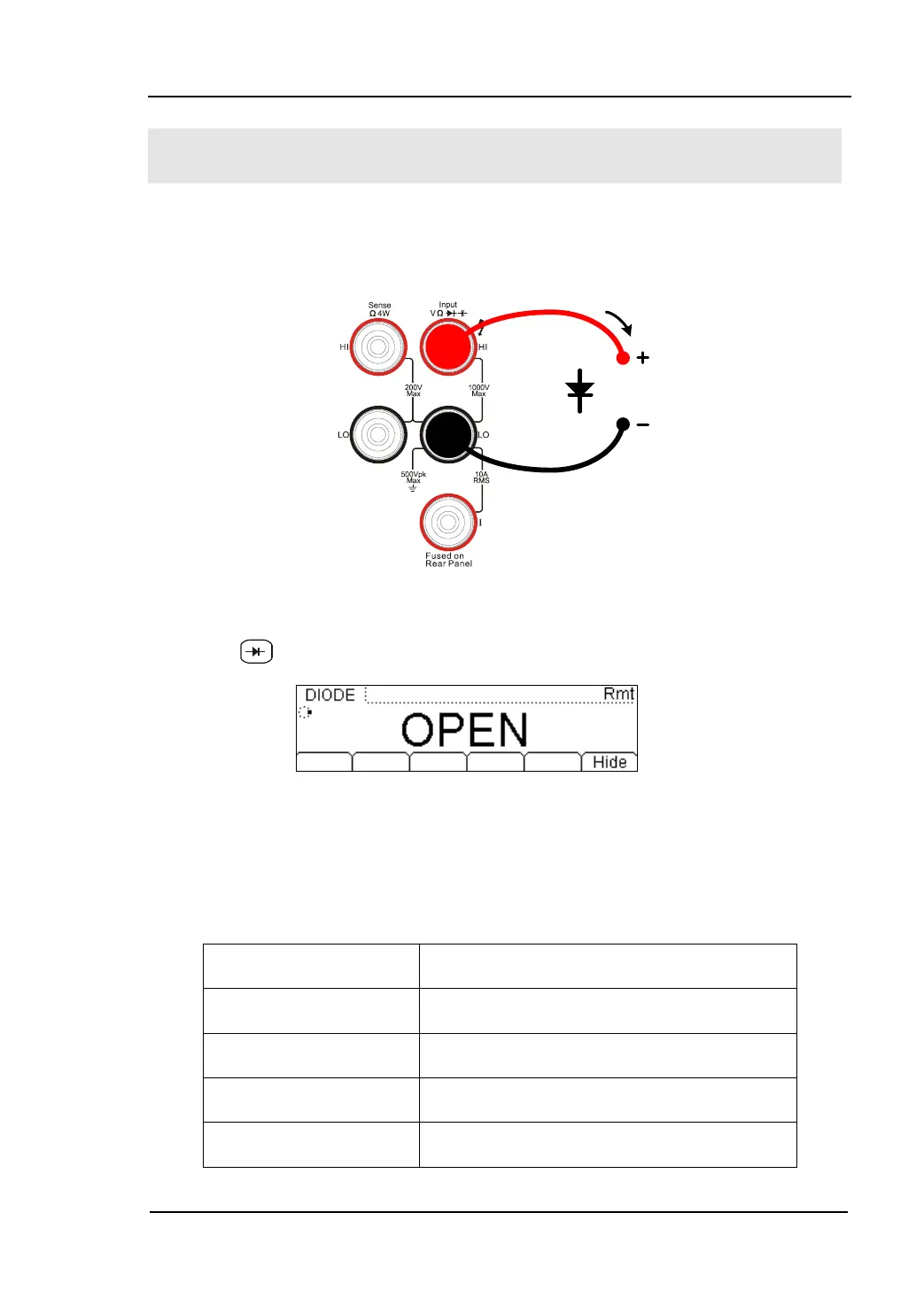

1. Connect test leads as shown in Figure2-28, red lead connects with Terminal HI,
black lead connects with Terminal LO.
Figure 2-28 Sketch map for connecting
2. Press to enter into the following interface.
Figure 2-29 Testing interface of Diodes
3. Check the connection state of Diodes.
When connecting, the instrument will beep one time (If Sound is open, refer to
“System Settings”).
Table 2-9 Check Diodes Characteristics
Test Current
1mA
Range
2.0V immovable
Open-circuit Voltage
<8V
Input Protection
1000V (HI Terminal)
Beep Condition
0.1V≤V
measured
≤2.0V
Forward Bias
I
