2. To set Output
In External Trigger Mode, the instrument could output a pulse signal through
the six pin of RS232 interface on the Real Panel after finishing sampling data.
By the way, the polarity and output pulse width of this signal could be
adjusted.
Press  VMC, the display shows:

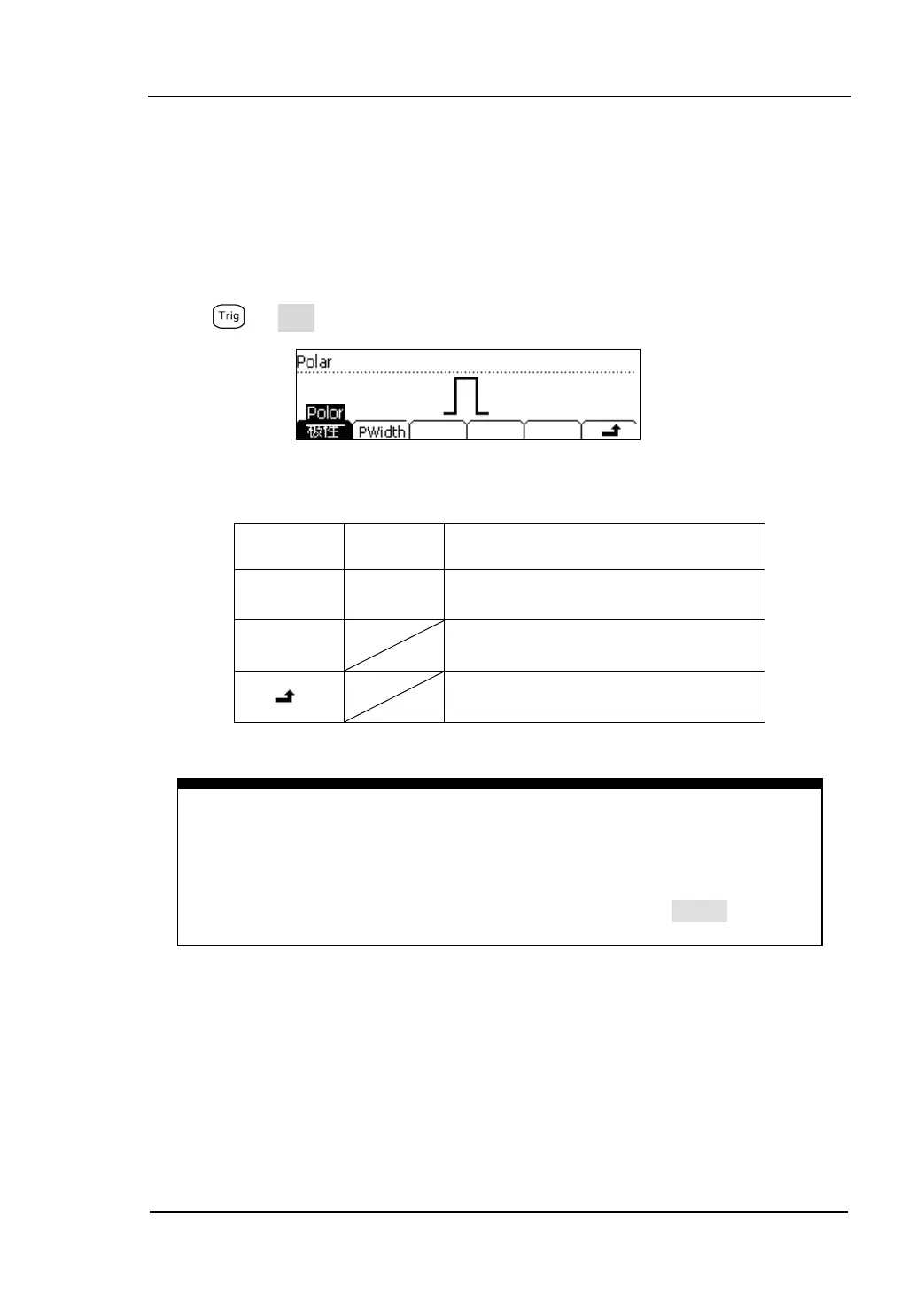

Figure 2-71 Set Parameter of Output Pulse Trigger
Table 2-25 The Explanation of the External Triggering (polarity: positive)
Function
Menu
Settings
Explanation
Polar
Pos
Neg
Setting the pulse signal’s polarity.
Width
Setting the pulse width.
Store the changing and back to the
higher menu.
The VMC function output
 At external triggering mode, when the data sampling is over, the
instrument will output a pulse signal to indicate operation completed.
 At external triggering mode, when operating math P/Fed value, the
instrument will export a pulse signal to indicate out of P/Fs detected.
