7. Output Terminals

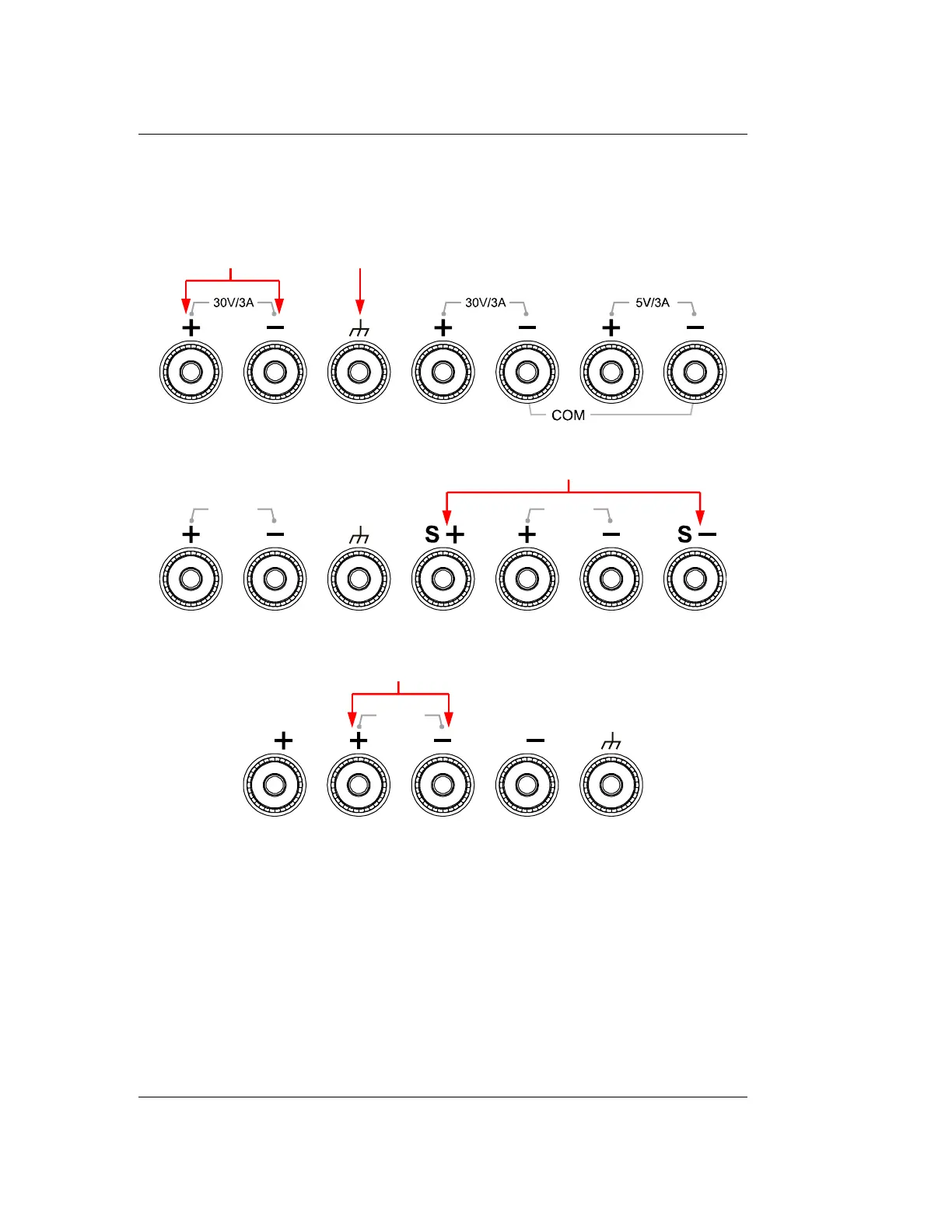

The output terminals of different models of DP800 series are different.
DP832:
DP822/DP821:
8V/10A60V/1A
DP813/DP811:
S S
Ou
tpu
t
(1) Channel output terminals: used to output the voltage and current of the
channel.
(2) Ground terminal: this terminal is connected to the instrument chassis and
ground wire (the ground terminal of the power cord) and is in grounded
state.
(3) Sense terminals: used to detect the actual voltage at the load terminal to
compensate for the voltage drop caused by the load lead.
(1)
(3)
(1) (2)
