To Set the Delay Parameters
Press Timer  Delay Set to enter the delay parameter setting interface as shown
in the figure below. The channel currently selected is displayed in the status bar.
Press the channel selection keys on the front panel to switch the channel currently
selected. This interface provides delay parameter preview. Users can view the values
on the current page of the delay parameter list (high level indicates turning on the
output and low level indicates turning off the output).

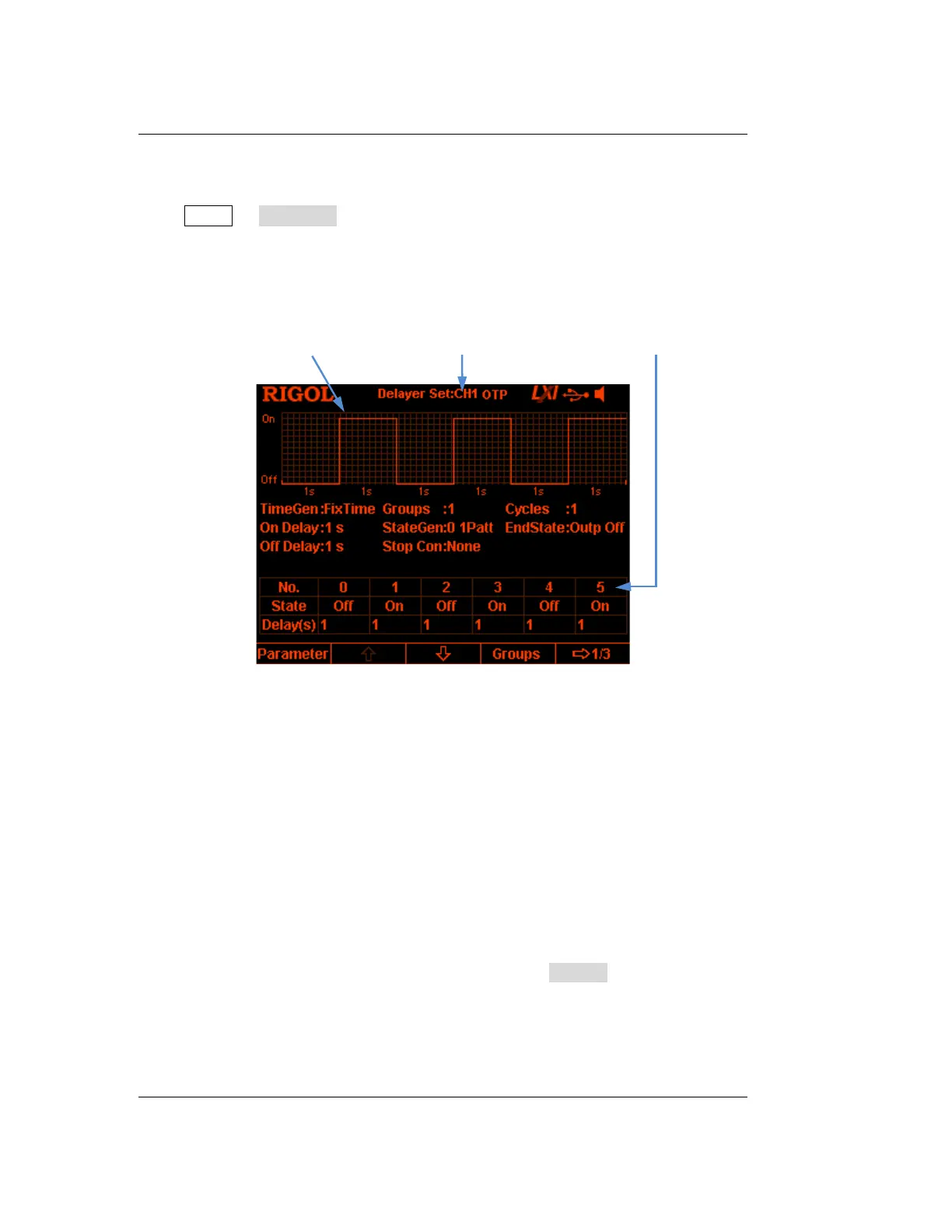

Figure 2-4 Delay Parameter Setting Interface
You can set the delay parameters in the delay parameter setting interface following
the steps below.
1. To Set the Number of Output Groups
2. To Set the Number of Cycles
3. To Set the End State
4. To Edit the Delay Parameters
5. To Set the Stop Condition
6. To Save and Read the Delay File
To Set the Number of Output Groups
The number of output groups refers to the number of times that the instrument turns
on or off the output according to the preset state. Press Groups; use the numeric
keyboard or the left/right arrow key and knob to input the desired value. The range is
from 1 to 2048.
