I/O Configuration
DP800 supports USB, LAN (option), RS232 (option) and GPIB (option, extended
using the USB to GPIB interface converter) interfaces, via which you can control
DP800 remotely. When the LAN, RS232 or GPIB interface is selected, please first set
the interface parameters.
Press Utility I/O Config to open the interface setting menu to set the LAN,
RS232 and GPIB interface parameters.
To Set the LAN Parameters
Before using the LAN interface, use the network cable to connect the instrument to
the PC or to the network of the PC.
Press Utility I/O Config LAN to open the LAN parameter setting interface as
shown in the figure below. You can view the network status and configure the
network parameters.

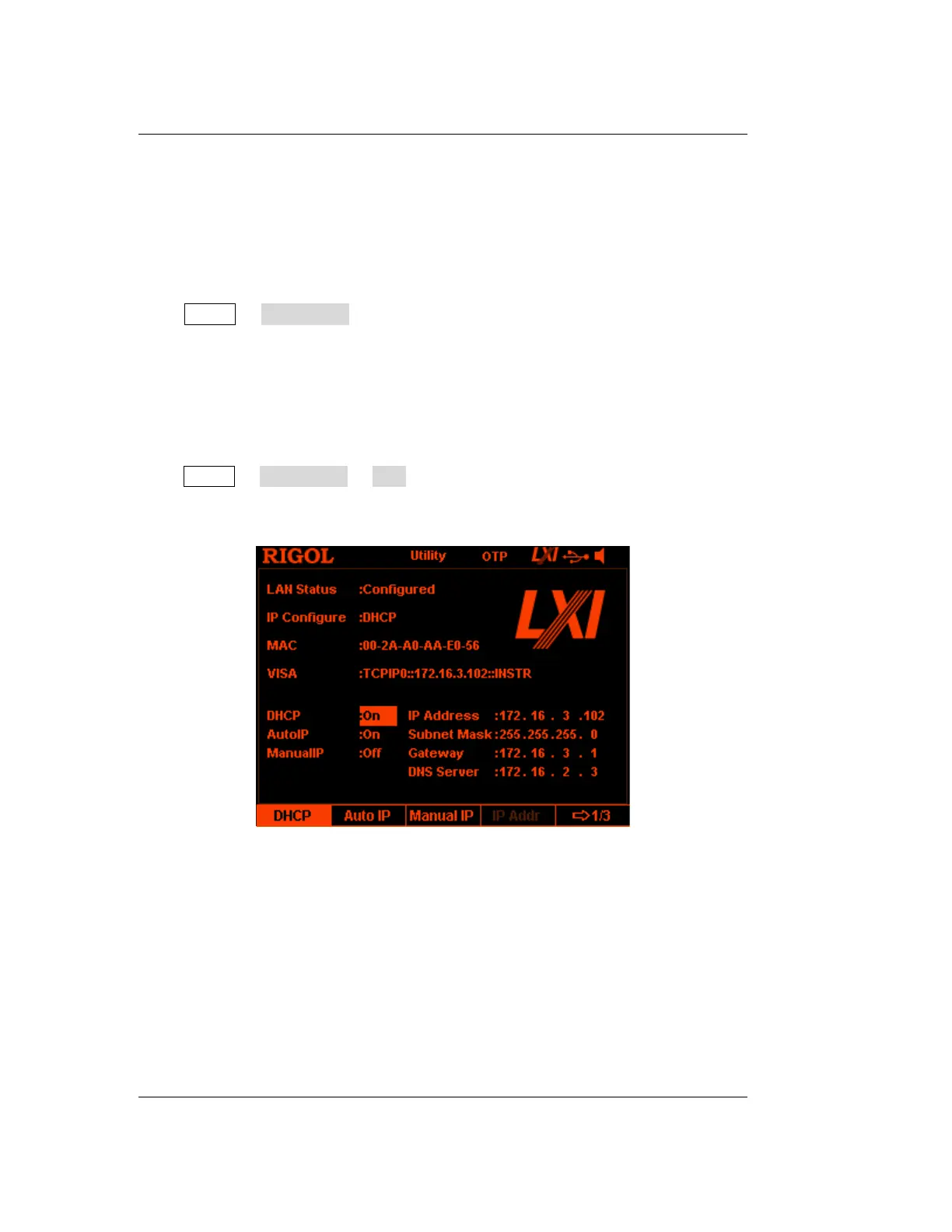

Figure 2-14 LAN Parameter Setting Interface
1. LAN Status
Configured: the network is successfully connected.
Disconnect: the network is not connected or the network connection fails.
2. IP Configuration Mode
There are three IP configuration modes: DHCP, Auto IP and Manual IP. If the
current LAN status is "Disconnect", nothing is displayed behind "IP Configure:".
In different IP configuration mode, the configuration mode of the network
parameters (such as the IP address) is different.
