To Set the Timer Parameters
Press Timer  Timer Set to enter the timer parameter setting interface as shown
in the figure below. The channel currently selected is displayed in the status bar. You
can press the channel selection keys on the front panel to switch the channel
currently selected. This interface provides timer parameter preview; users can view
the values on the current page of the timer parameter list (the horizontal axis
denotes time and the vertical axis denotes voltage and current).

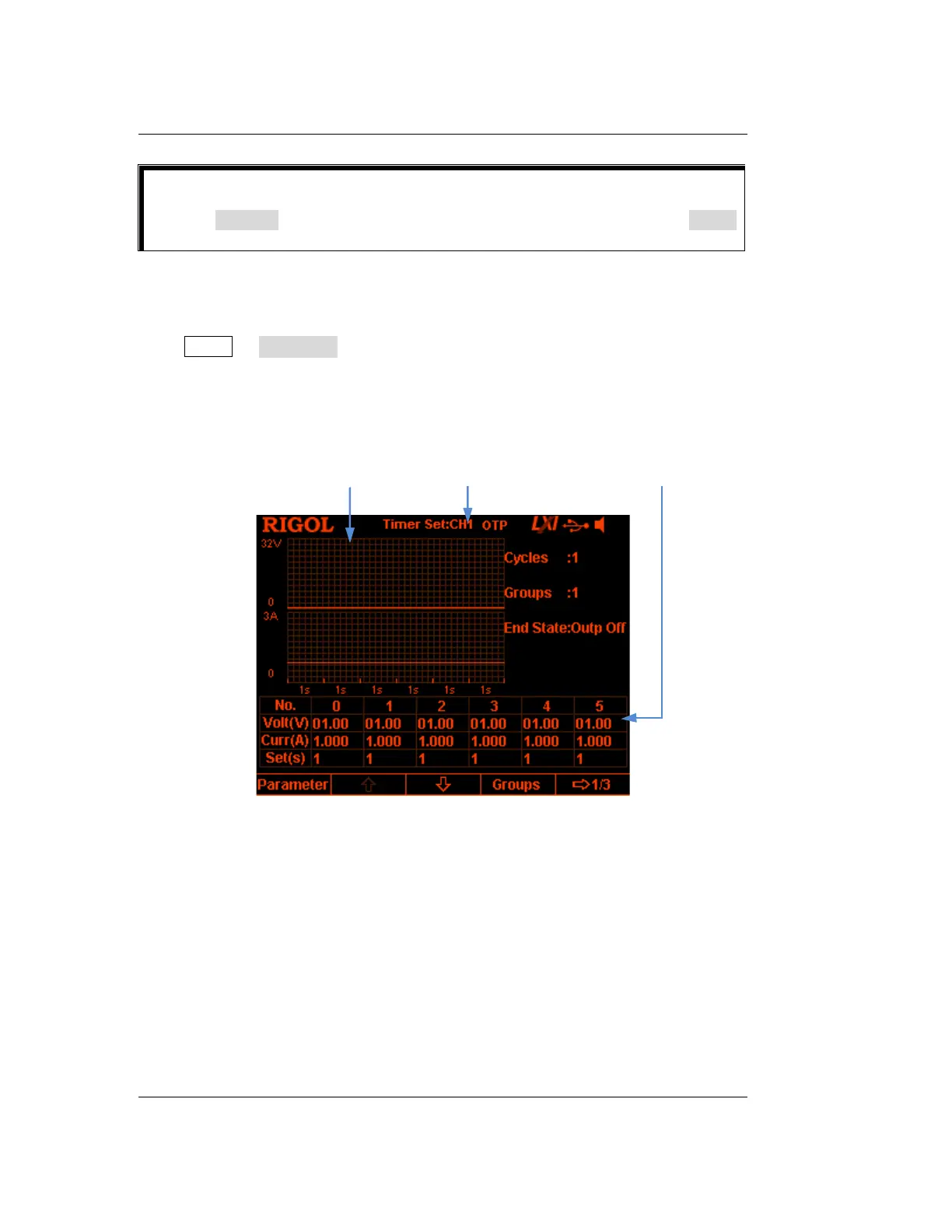

Figure 2-2 Timer Parameter Setting Interface
You can set the timer parameters in the timer parameter setting interface following
the steps below.
1. To Set the Number of Output Groups
2. To Set the Number of Cycles
3. To Set the End State
4. To Edit the Timer Parameters
5. To Save and Read the Timer File
Tip
The timer function and delayer function are mutually exclusive. When the timer is
enabled, Delayer is grayed out and disabled; when the delayer is enabled, Timer
is grayed out and disabled.
