RIGOL Chapter 2 Front Panel Operations
2-66 DP800 User Guide
To Recall the User-defined Setting
In the interface as shown in Figure 2-15, press Preset Key to select the specified
user-defined setting (take user-defined setting 1 as an example) to enter the
user-defined setting interface (the current user-defined setting is displayed in the
interface) as shown in Figure 2-16
. At this point, pressing Preset on the front panel
will recall the corresponding user-defined setting.

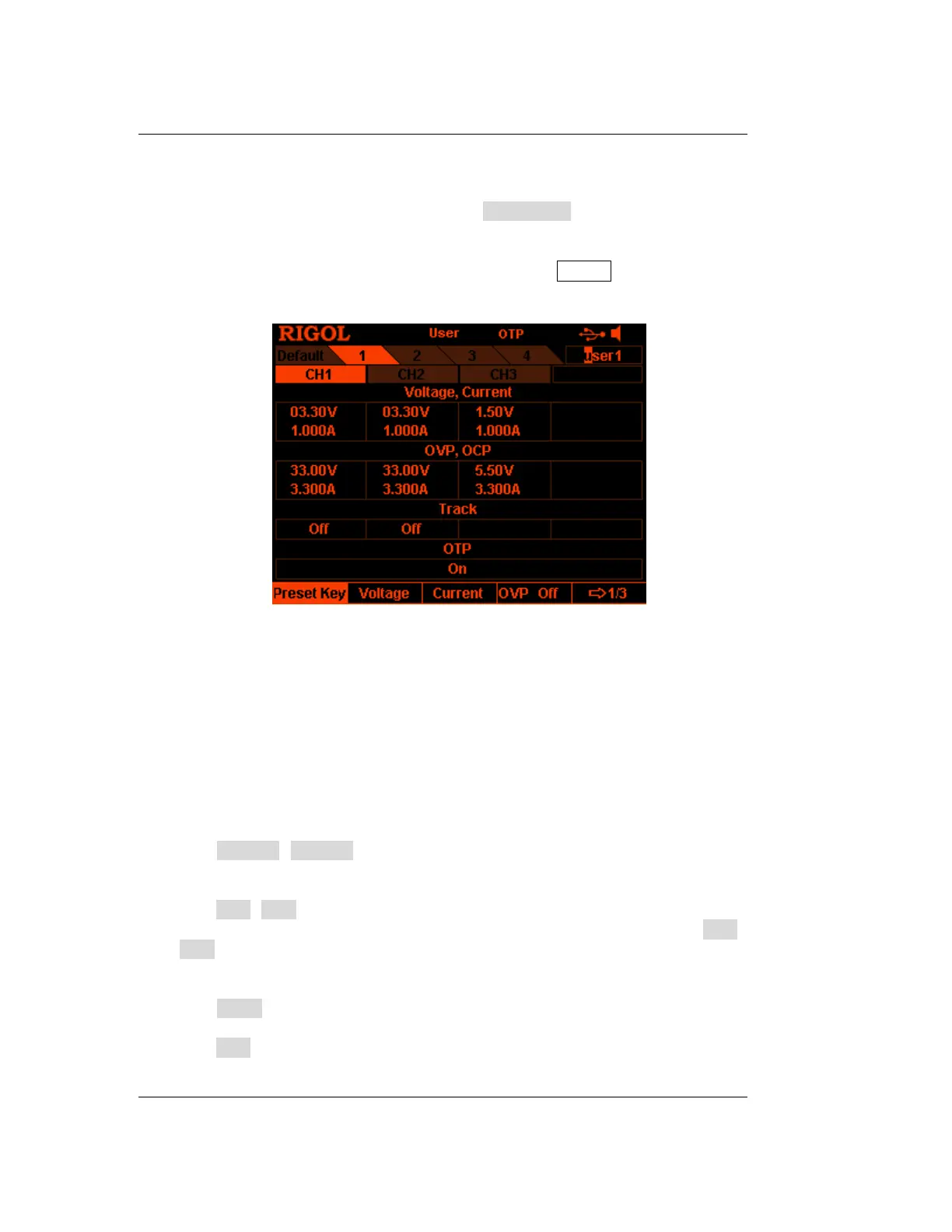

Figure 2-16 User-defined Setting Interface
You can set the user-defined setting currently selected according to the steps below
in the interface as shown in Figure 2-16.
1. Use the left/right arrow key and knob to edit the name of the current
user-defined setting (the default names of the 4 user-defined settings are user1,
user2, user3 and user4 respectively).
2. Press the channel selection keys on the front panel to select the desired channel
(the channel currently selected is highlighted).
3. Press Voltage (Current) and use the numeric keyboard or the left/right arrow
key and knob to set the voltage (current) of the channel currently selected.
4. Press OVP (OCP) and use the numeric keyboard or the left/right arrow key and
knob to set the OVP (OCP) value of the channel currently selected. Press OVP
(OCP) repeatedly to enable or disable the OVP (OCP) function of the channel
currently selected.
5. Press Track repeatedly to enable or disable the track function of the channel
currently selected.
6. Press OTP repeatedly to enable or disable the over-temperature function of the
