Store and Recall
DP800 allows users to store various kinds of files in internal or external memory and
recall the files stored when required.
DP800 provides an internal non-volatile memory (C disk) and an external memory (D
disk, only available when a USB storage device is detected at the USB HOST interface
on the rear panel).
Note: DP800 only supports the flash memory USB storage device of FAT32 format.
1. C Disk
Provide 10 state file storage locations (STATE 1 to STATE 10), 10 record file
storage locations (REC 1 to REC 10), 10 timer file storage locations (TIMER 1 to
TIMER 10) and 10 delay file storage locations (DELAY 1 and DELAY 10). Users
can store the state file, record file, timer file and delay file in C disk.
2. D Disk
Only available when a USB storage device is detected at the USB HOST interface
on the rear panel. Users can store state file, record file, timer file and delay file in
the USB storage device and copy the files in C disk to the USB storage device.
The number of files can be stored depends on the storage space of the USB
storage device.
Besides, you can store the specified BMP file in a USB storage device and define
the start-up interface according to the introduction in "User-defined Start-up
Interface".
Press Store on the front panel to enter the interface as shown in the figure below.

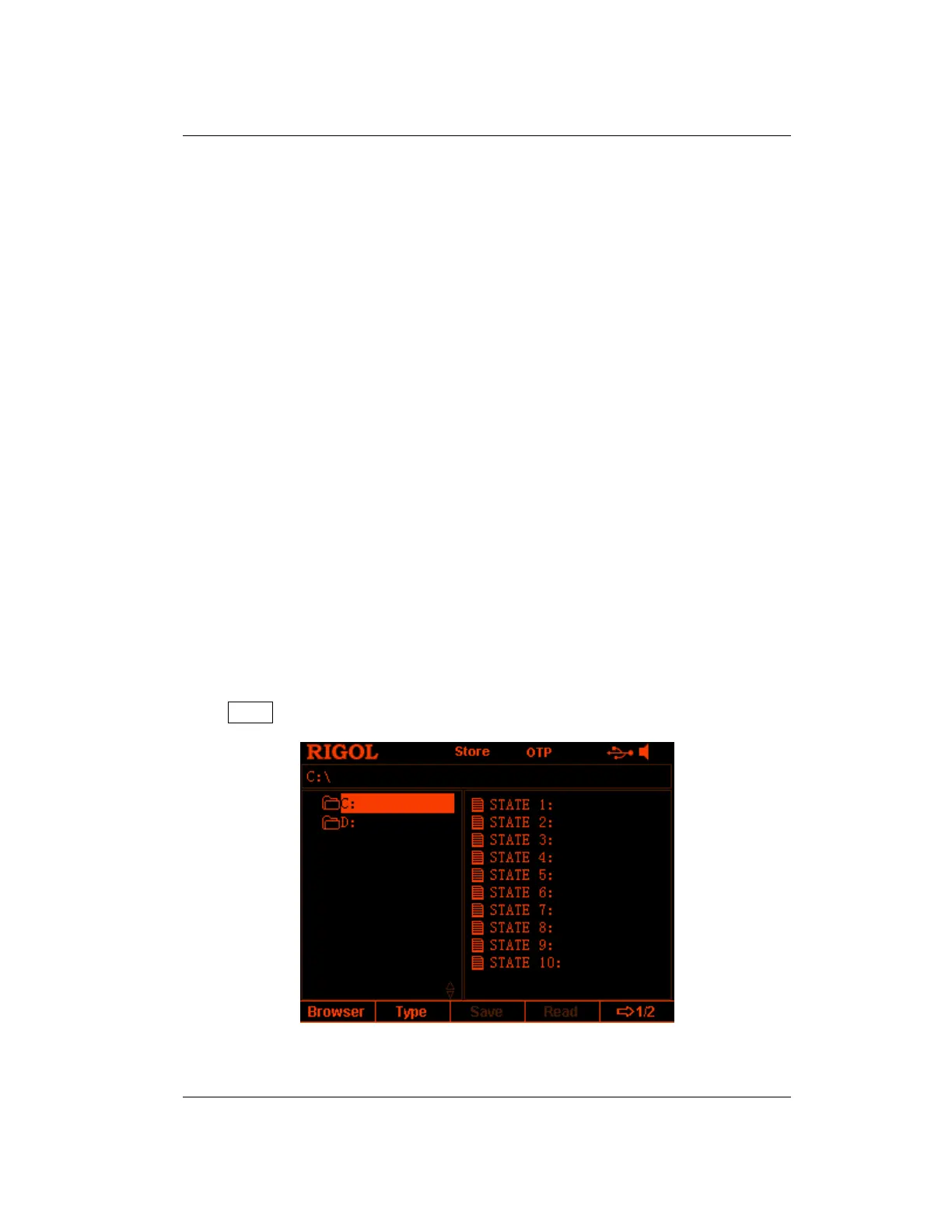

Figure 2-10 Store and Recall Interface
