RIGOL Chapter 6 MATH and Measurements
6-10 DS2000E User’s Guide
Press MATH  Operate to select "Logic":
 Press Formula to select the desired logic formula and the default is "AND".
 Press Source A and Source B respectively to select the desired channels (CH1
or CH2).
 Press and use to adjust the vertical position of the operation results.
 Press
and use to adjust the vertical scale of the operation results.
 Press Invert to turn the inverted display of the operation results on or off.
 Press Threshold A and use to set the threshold of source A in logic
operation.
 Press Threshold B and use to set the threshold of source B in logic
operation.
 Press Label to define a label for the operation results. For the details, please
refer to "
MATH Label".
 HORIZONTAL
POSITION and HORIZONTAL SCALE can also be
used to adjust the horizontal position and scale of the operation results.
Advanced Operation
DS2000E provides advanced operation function that allows users to define operation
functions. Press MATH  Operate  "Advanced"  Expression  "ON" and the
editing window as shown in the figure below is displayed.

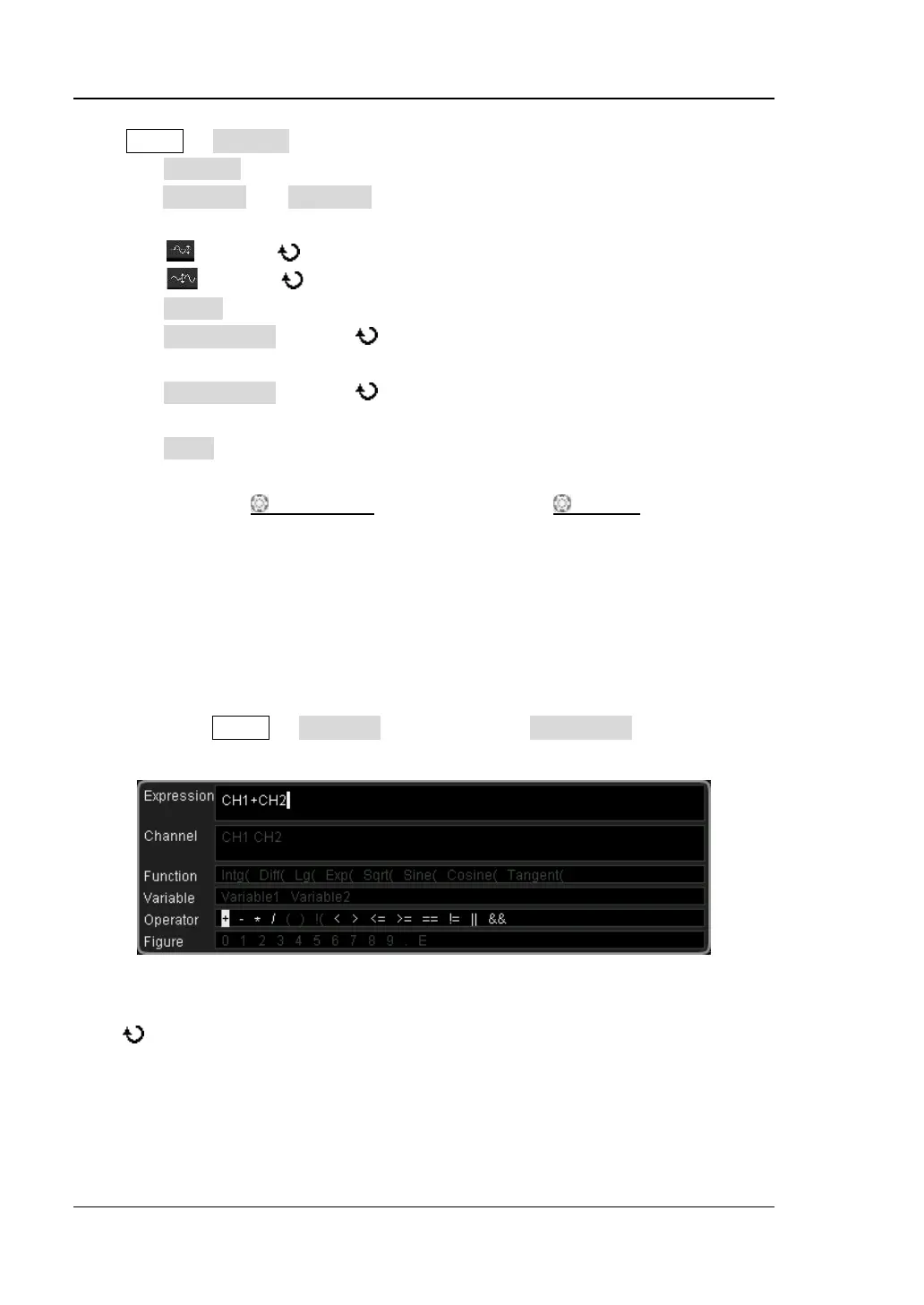

Figure 6-2 Advanced Operation Editing Window
Turn
to select any item in "Channel", "Function", "Variable", "Operator" and
"Figure" (the items in white can be selected currently and the items in gray cannot be
selected currently), then press down the knob and the item selected will de displayed
in the entry box on the right of the "Expression".
