RIGOL Chapter 9 Pass/Fail Test
9-4 DS2000E User’s Guide

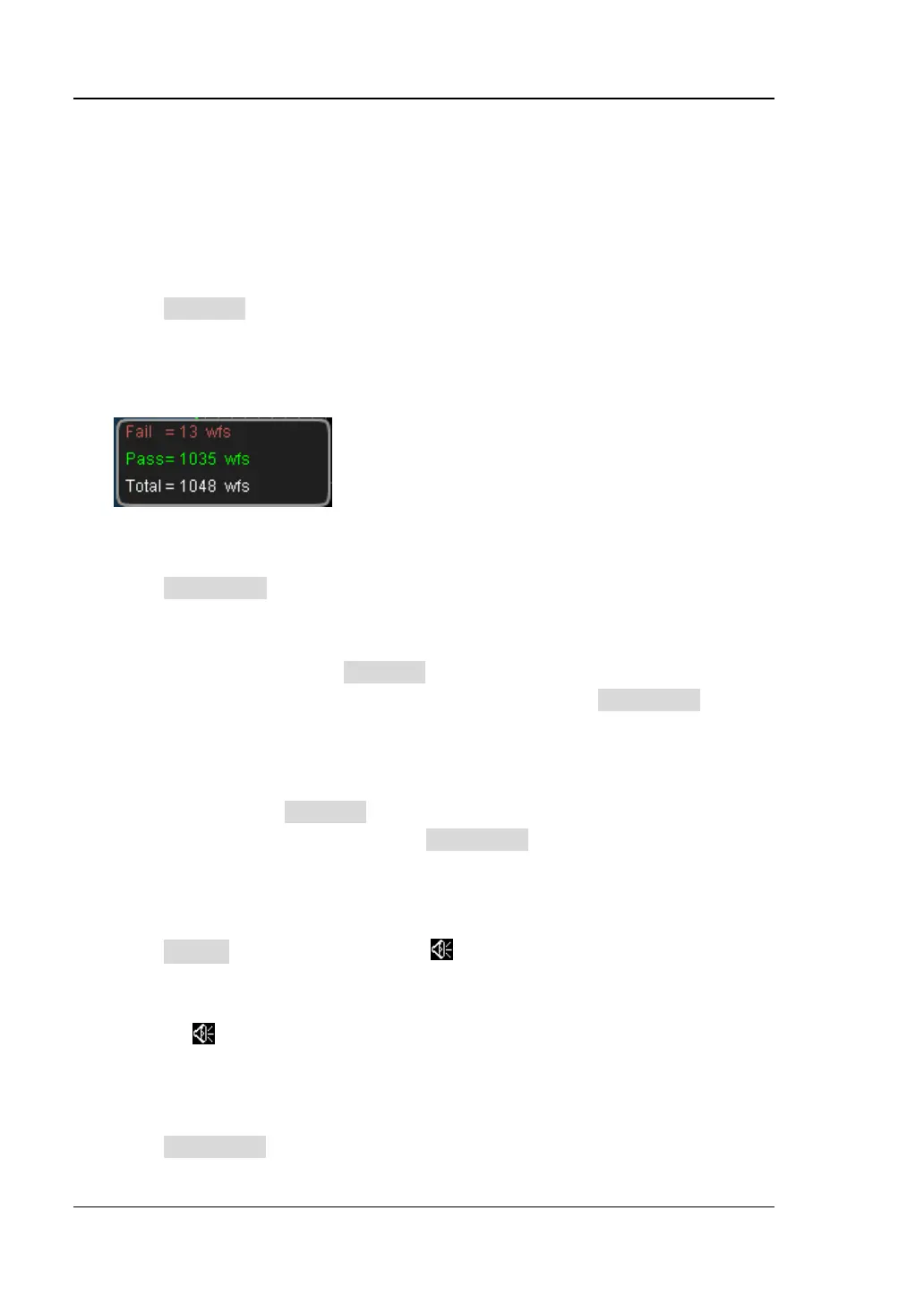

To Set Test Results Output Type
You can set the output type of the test results referring to the following methods.
1. The Statistic Message
Press Message to select "ON" or "OFF". When "ON" is selected, the statistic
message of the test results (including the number of the failed frames, the
passed frames and the total frames) will be displayed at the upper right corner
of the screen, as shown in the figure below.
2. Stop on Fail
Press StopOnFail to select "ON" or "OFF".
ON: when a failed waveform is detected, the oscilloscope will stop the test
and enter the "STOP" state. At this point, the results of the test remain the
same on the screen (if Message is set to "ON") and only one negative
pulse is output from the [Trigger Out] connector (if AuxOutput is set to
"ON") on the rear panel.
OFF: the oscilloscope will continue with the test even though failed
waveforms are detected. The test results on the screen will update
continuously (if Message is set to "ON") and a pulse will be output from
the [Trigger Out] connector (if AuxOutput is set to "ON") on the rear
panel each time a failed waveform is detected.
3. Beeper on Fail
Press Output to select "Fail" or "Fail+ ".
Fail: there is output when a failed waveform is detected; but, the beeper
does not sound.
Fail+
: there is output when a failed waveform is detected and the beeper
sounds (not related to the on/off state of the sound) at the same time.
4. [Trigger Out] Outputs Pulse When Failed
Press AuxOutput to select "ON" or "OFF". If "ON" is selected, the oscilloscope
To Next Page
