Remote Control via LAN
1. Connect the device
Connect the oscilloscope to your LAN using a network cable.
2. Configure network parameters
Configure the network parameters of the oscilloscope according to the
description in "LAN Setting".
3. Search for device resource

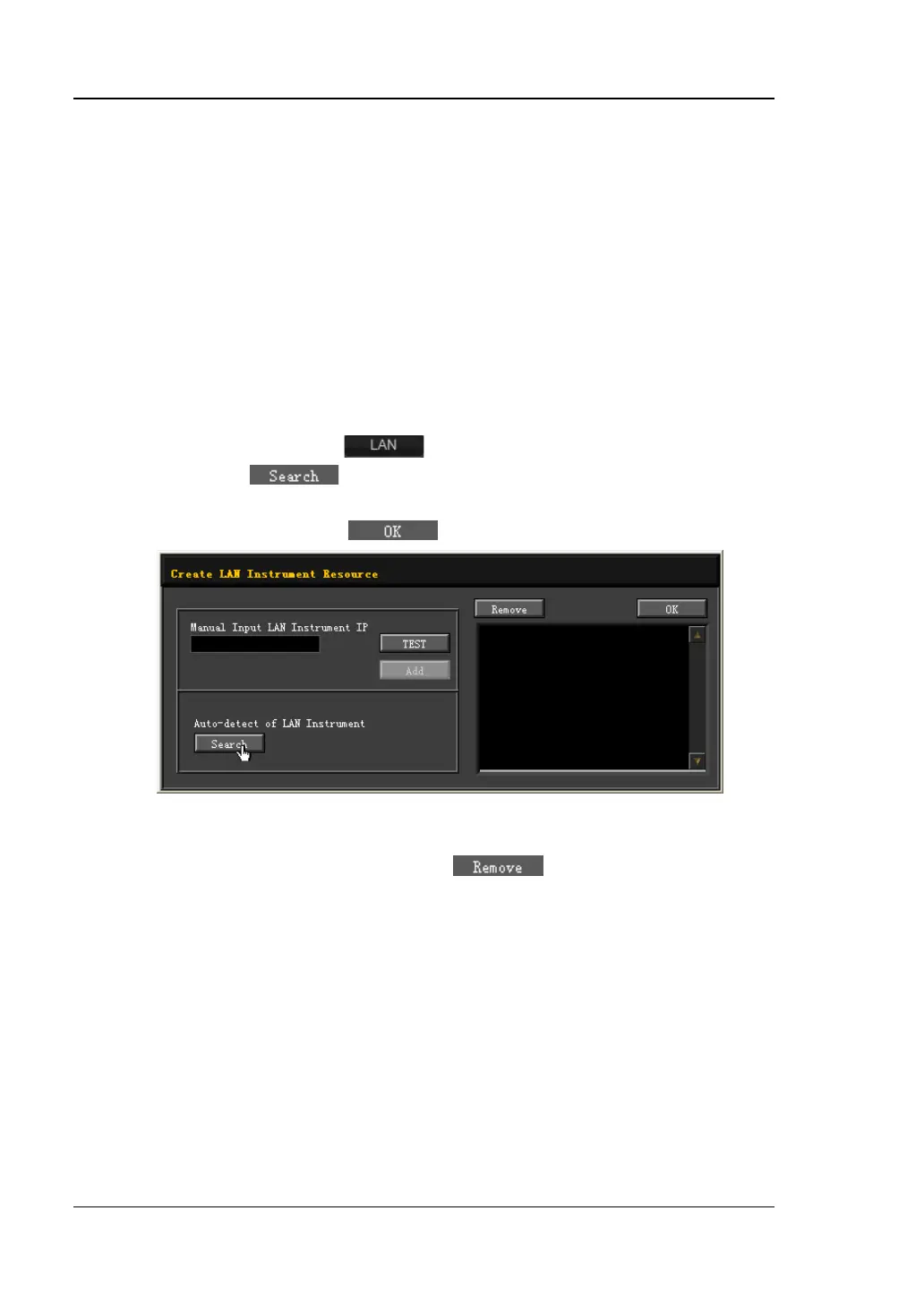

Start the Ultra Sigma, click
and the panel as shown below is
displayed. Click
and the software will search for the instrument
resources currently connected to the LAN; the resources found are displayed at
the right of the panel. Click
to add the resource.
Note: If you want to remove the unwanted resource, click the corresponding
resource name to select it and then click
.
4. View device resource
The resources found will appear under the "RIGOL Online Resource" directory.
For example, DS2202E (TCPIP::172.16.3.83::INSTR).
5. Control the instrument remotely
Right click the resource name "DS2202E (TCPIP::172.16.3.83::INSTR)" to select
"SCPI Panel Control" to turn on the remote command control panel through
which you can send commands and read data.
