RIGOL Chapter 1 Quick Start
1-18 DS2000E User’s Guide

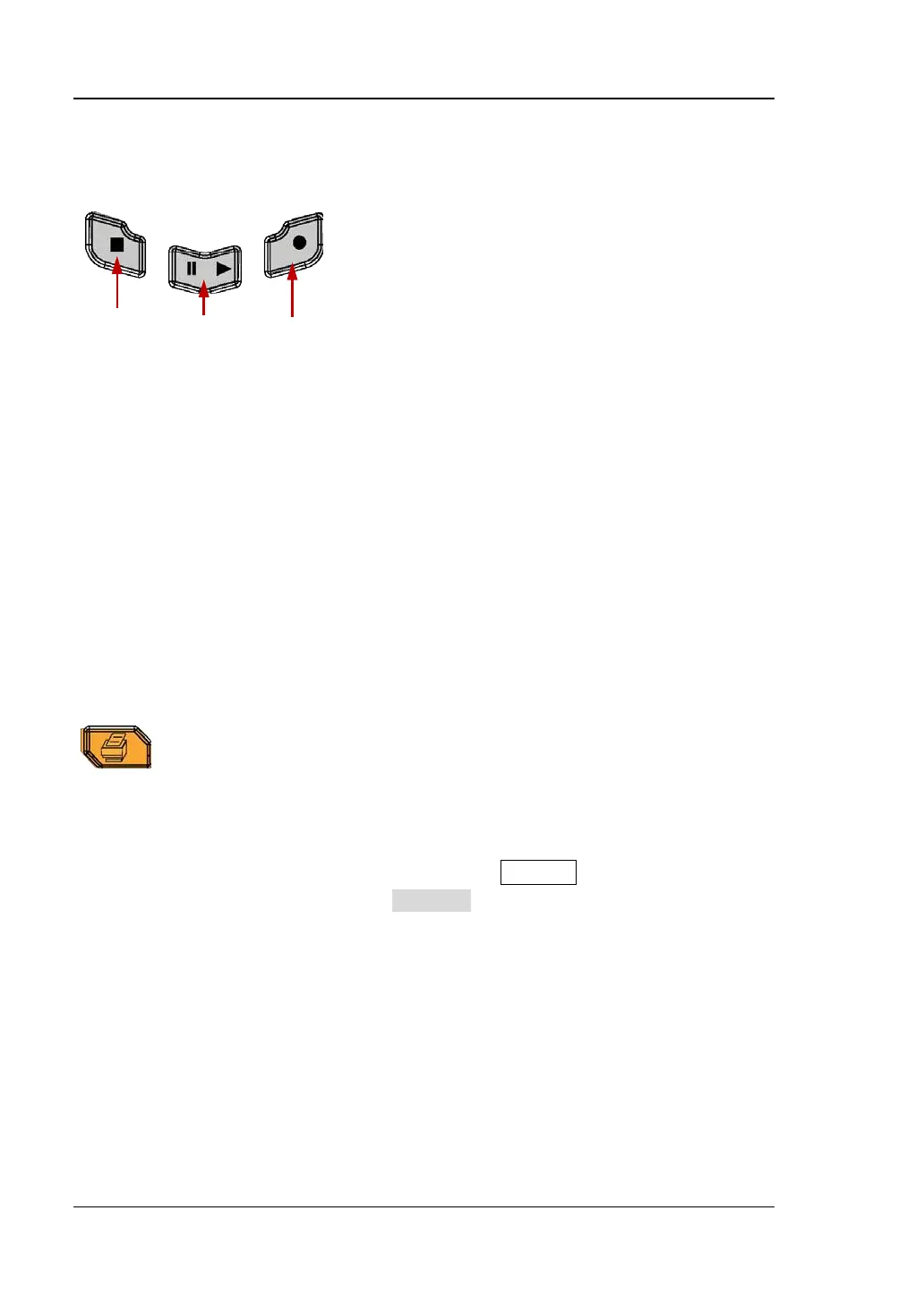

Record
Record: press this key to start recording the waveform. The backlight is illuminated
in red and flashes. Besides, when the record constant on (Open) is enabled, the
backlight will also be illuminated in red and flashes.
Play/Pause: in the stop or pause state, press this key to play back the waveform
and press again to pause the play. The backlight is illuminated in yellow.
Stop: press this key to stop the waveform being recorded or being played back. The
backlight is illuminated in orange.
Print
Press this key to execute the print function or save the content
displayed in the screen in the USB storage device in an image file.
If a PictBridge printer is currently connected and the printer is in
idle state, pressing this key will execute the print function. If no
printer but a USB storage device is currently connected, pressing
this key will save the screen content to the USB storage device in
".png" format. You can also press Storage to set the storage type
to picture and press Pic Type to store the screen image in the
specified picture format (bmp, png, jpeg or tiff). When a printer
and a USB storage device are connected at the same time, the
printer enjoys a higher priority.
