RIGOL Chapter 1 Quick Start
1-4 DS2000E User’s Guide
To Prepare the Oscilloscope for Use
To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as better operation and
observation.

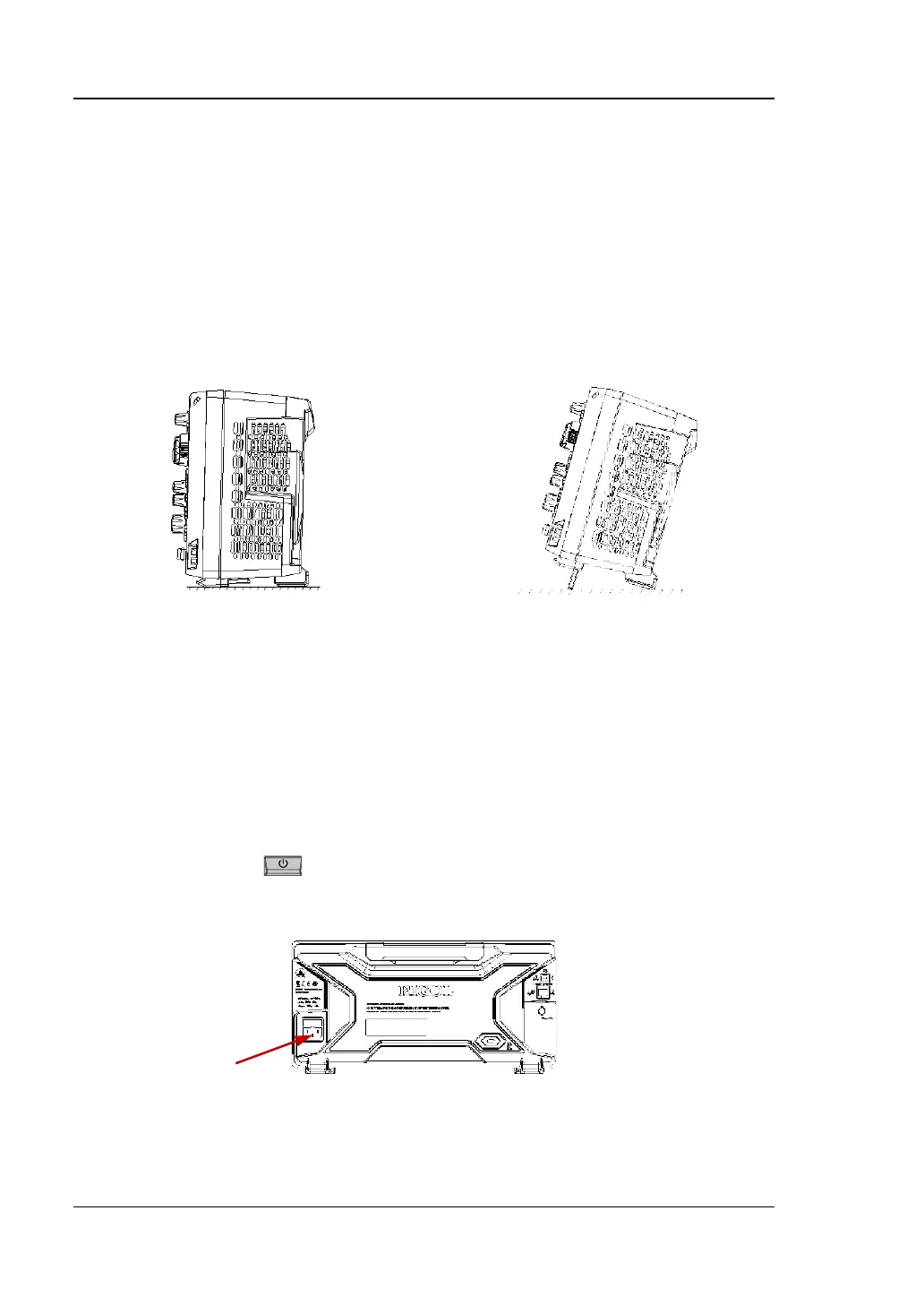

Figure 1-3 To Adjust the Supporting Legs
To Connect to AC Power
The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please use
the power cord provided in the accessories to connect the oscilloscope to the AC
power source, as shown in the figure below. When the oscilloscope is connected to
power, the Power key
located at the lower-left corner of the front panel is
blinking.
Figure 1-4 To Connect to AC Power
Power Cord Connector
