Rigol DS2000E Series User Manual

RIGOL Chapter 13 System Function Setting
DS2000E User’s Guide
13-2
Remote Interface Configuration
DS2000E can communicate with PC via LAN, USB, or GPIB (with the USB-GPIB
interface converter provided by RIGOL) bus. Please refer to the introduction below
to configure the corresponding interface before using the remote interfaces.
LAN Setting
Press Utility  IO Setting  LAN Set to turn on the LAN setting interface. You
can view the network connection status and configure the network parameters.

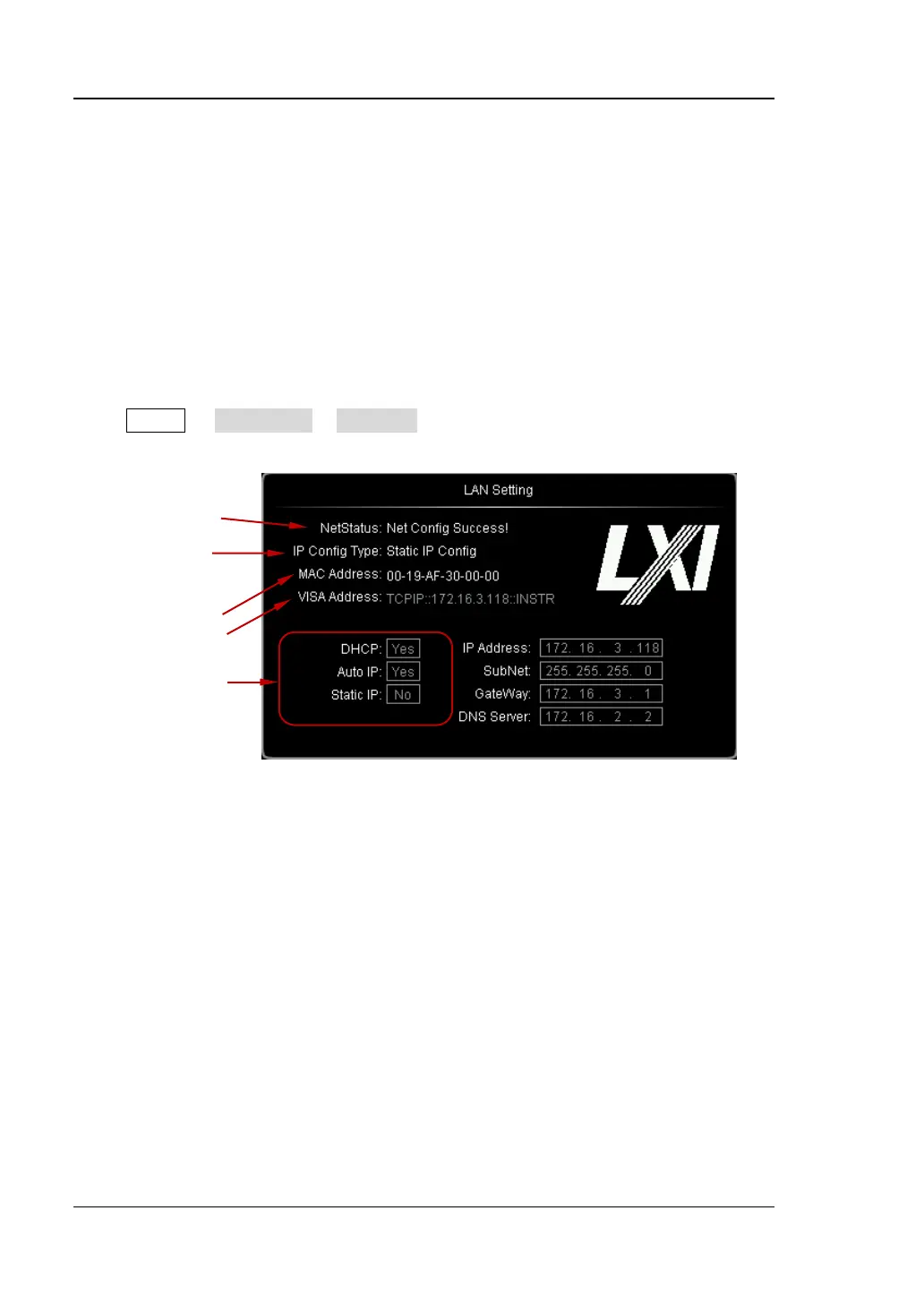

Figure 13-1 LAN Setting Interface
Network Status
Connect the oscilloscope to your local area network using the network cable. The
network interface of the oscilloscope is on the rear panel. The oscilloscope will give
different prompts according to the current network connection status.
 Net Config Success!
 Acquire IP…
 IP Conflict!
 Unconnected!
 DHCP Fail!
 Read Status Fail!
Network Status
Current IP
Config. Type
MAC Address
VISA Address
IP Config. Type
Status
