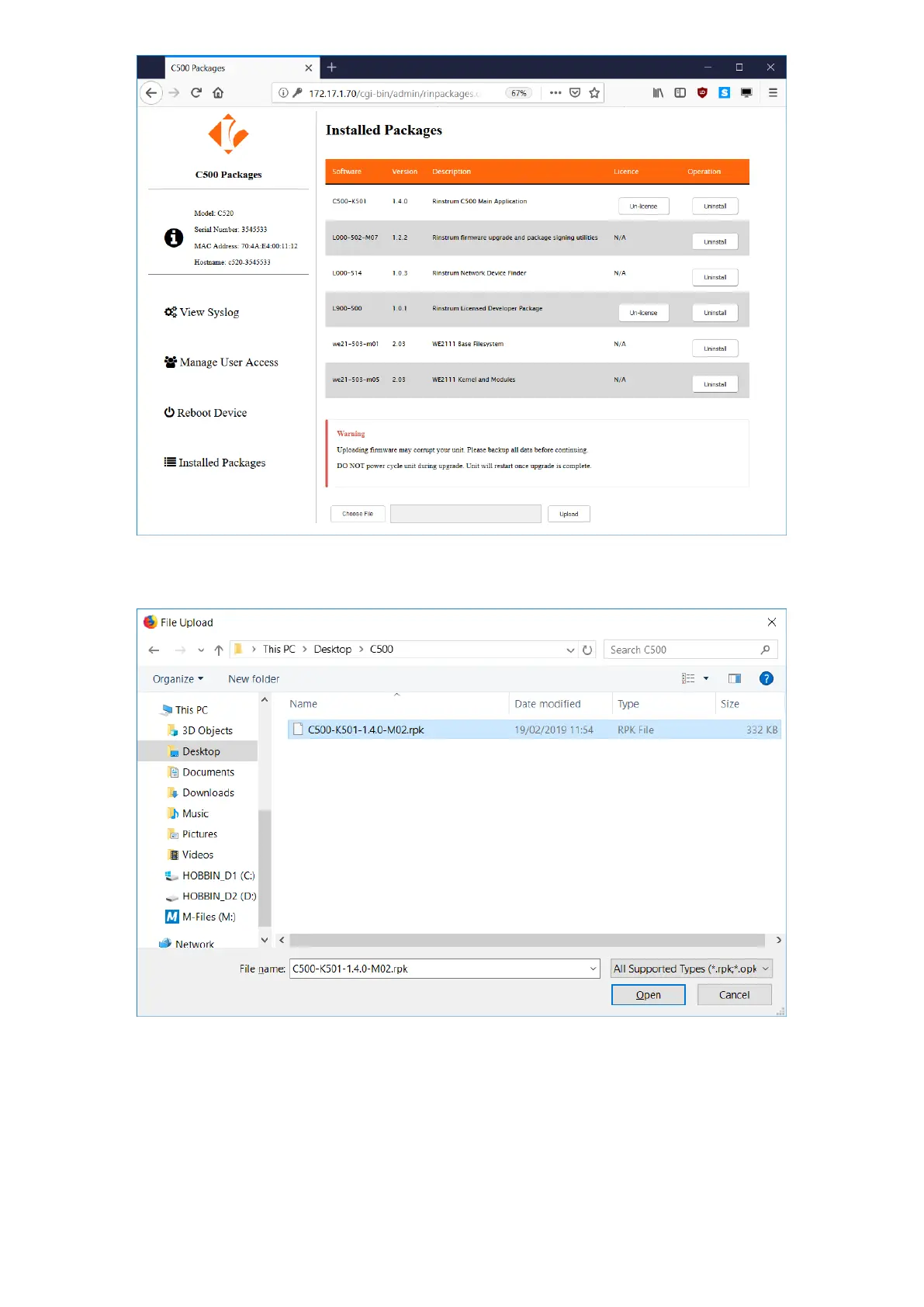

3. Click “Choose File” and select the new ﬁrmware ﬁle to upload. The ﬁle is named as follows: C500-500-

<version>-M02.rpk, for example C500-500-1.0.0-M02.rpk.

4. Click Open, then click the “Upload” button:
