59
Measurement in FFT Mode

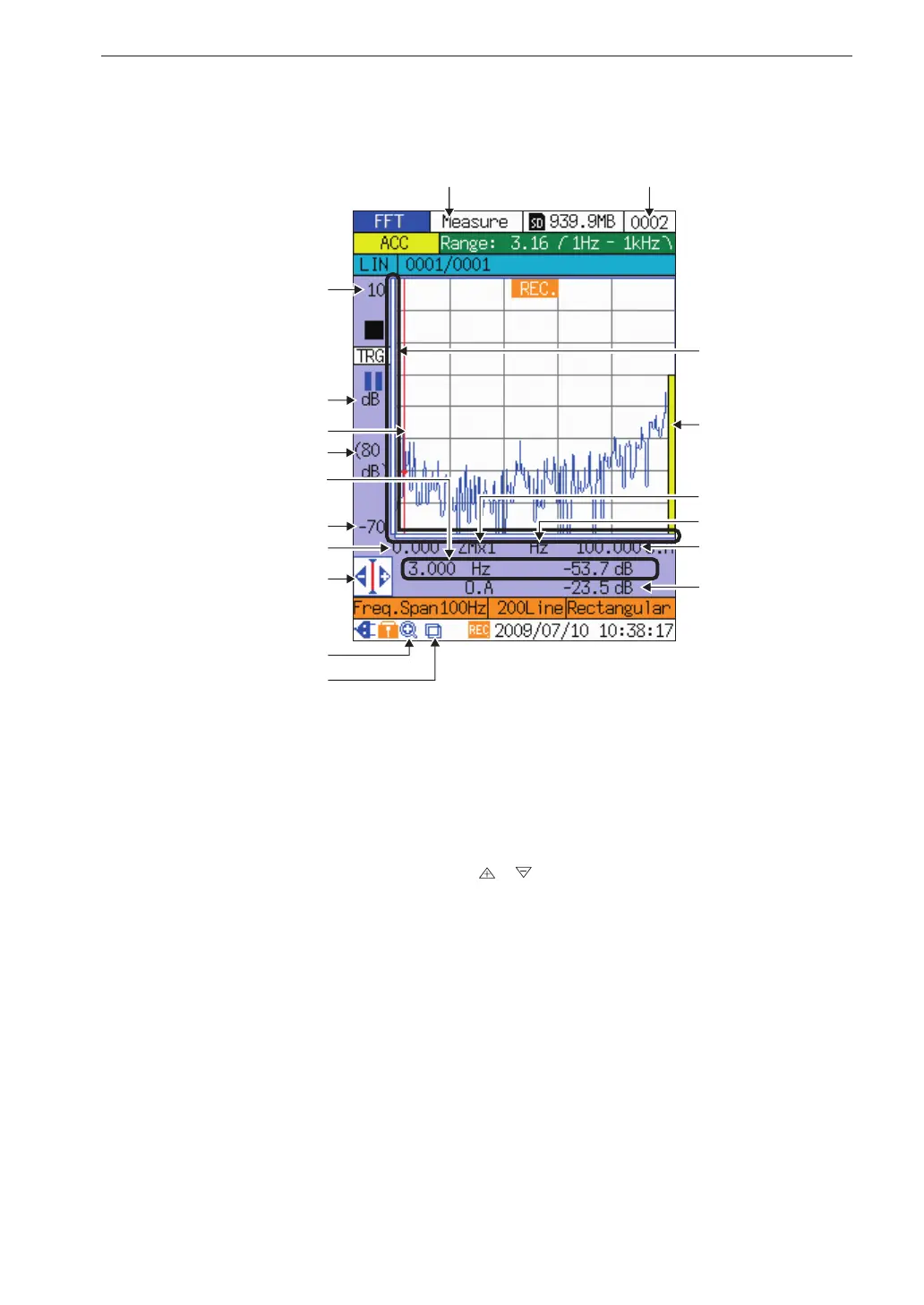

Graph display (display parameter items)
Measurement status
Shows “Measure”.
Store address
Shows the address that will next be used when storing data on the SD card.
This can be changed with the / keys, but if an address is selected
which already contains data, the indication is highlighted in red, to alert
the user that the data will be overwritten.
Scroll bar
The portion of the overall data that are currently displayed on the screen
is indicated by a white line. Cursor movement and zoom actions will
result in a change in the length of the white line.
Overall value bar graph
Shows the overall value as a bar graph.
Y axis upper limit
Measurement status Store address
Scroll bar
Overall value
bar graph
X axis zoom factor
X axis unit
X axis upper limit
Overall value
Overlay symbol
Magnifying
glass symbol
Graph zoom symbol
or Cursor move symbol
X axis lower limit
Y axis lower limit
Cursor value
readout and unit
Y axis zoom factor
Cursor
Y axis unit
