ProSYS User's Manual 73

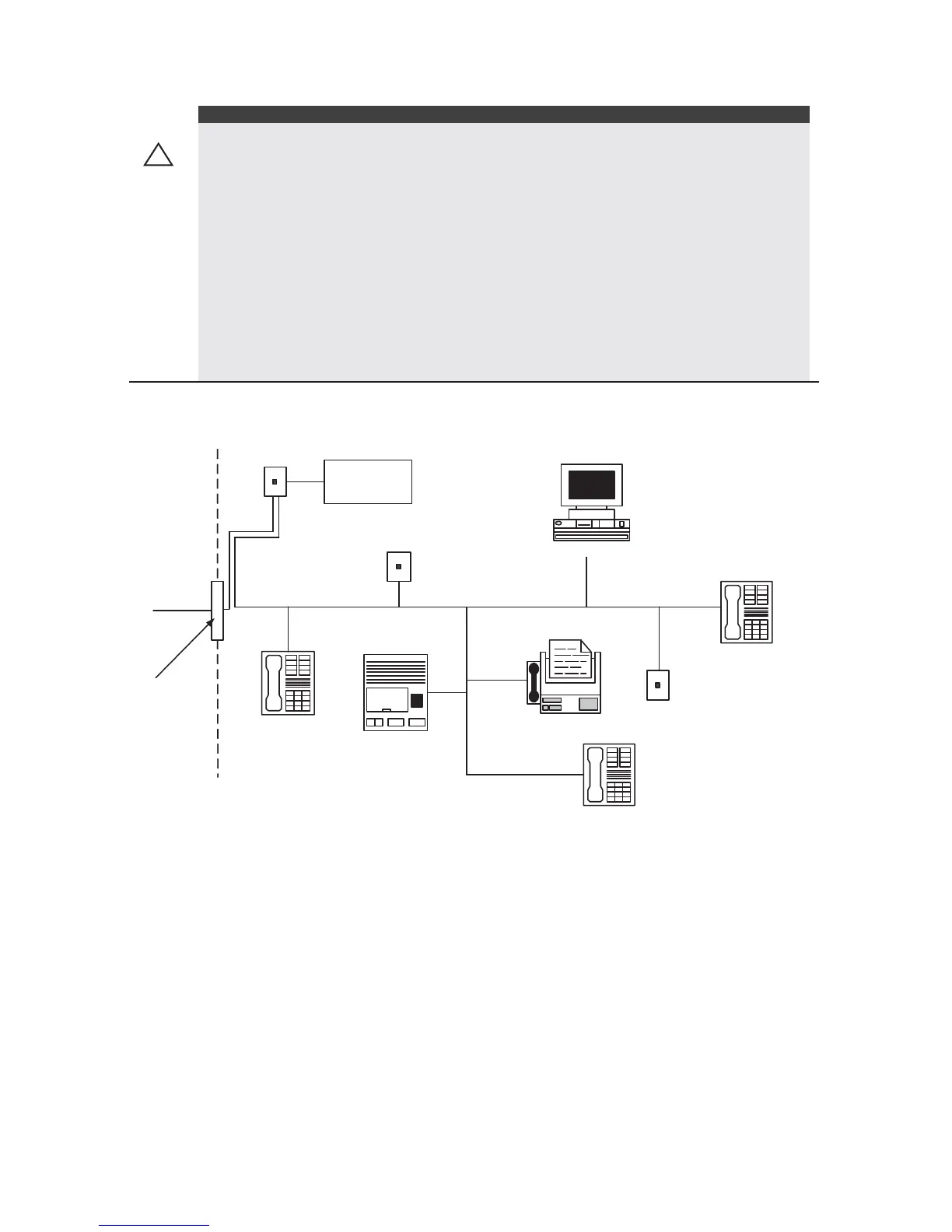

Computer
Answering
System
Fax Machine
Telephone
Telephone
Telephone
Unused
RJ-11
Jack
Unused
RJ-11 Jack
RJ-31X
Jack
Telephone
Line
Network
Demarcation
Point
Network
Service
Provider's
Facilities
Customer Premises Equipment and Wiring
Alarm
Dialing
Equipment
!
Caution:
To ensure proper operation, this equipment must be installed according to the
enclosed installation instructions. To verify that the equipment is operating
properly and can successfully report an alarm, this equipment must be tested
immediately after installation, and periodically thereafter, according to the
enclosed test.
Equipment must be installed according to the manufacturer instructions in order
for the alarm dialing equipment to work properly when other equipment connected
to the same line is in use, see drawing below for info.
Verification of the Line Seize capability should be made immediately after
installation, and periodically thereafter, in order to ensure that this equipment can
initiate a call even when other equipment (telephone, answering machine,
computer modem, etc.) connected to the same line in use.
