1.1. Product Description
The WiNG-MGR is a wireless sensor network manager that receives signals from wireless
devices and relays them to facilities monitoring systems as SNMP, Modbus TCP/IP, Modbus
RTU, BACnet/IP, and BACnet MS/TP signals.
1.2. Indicators

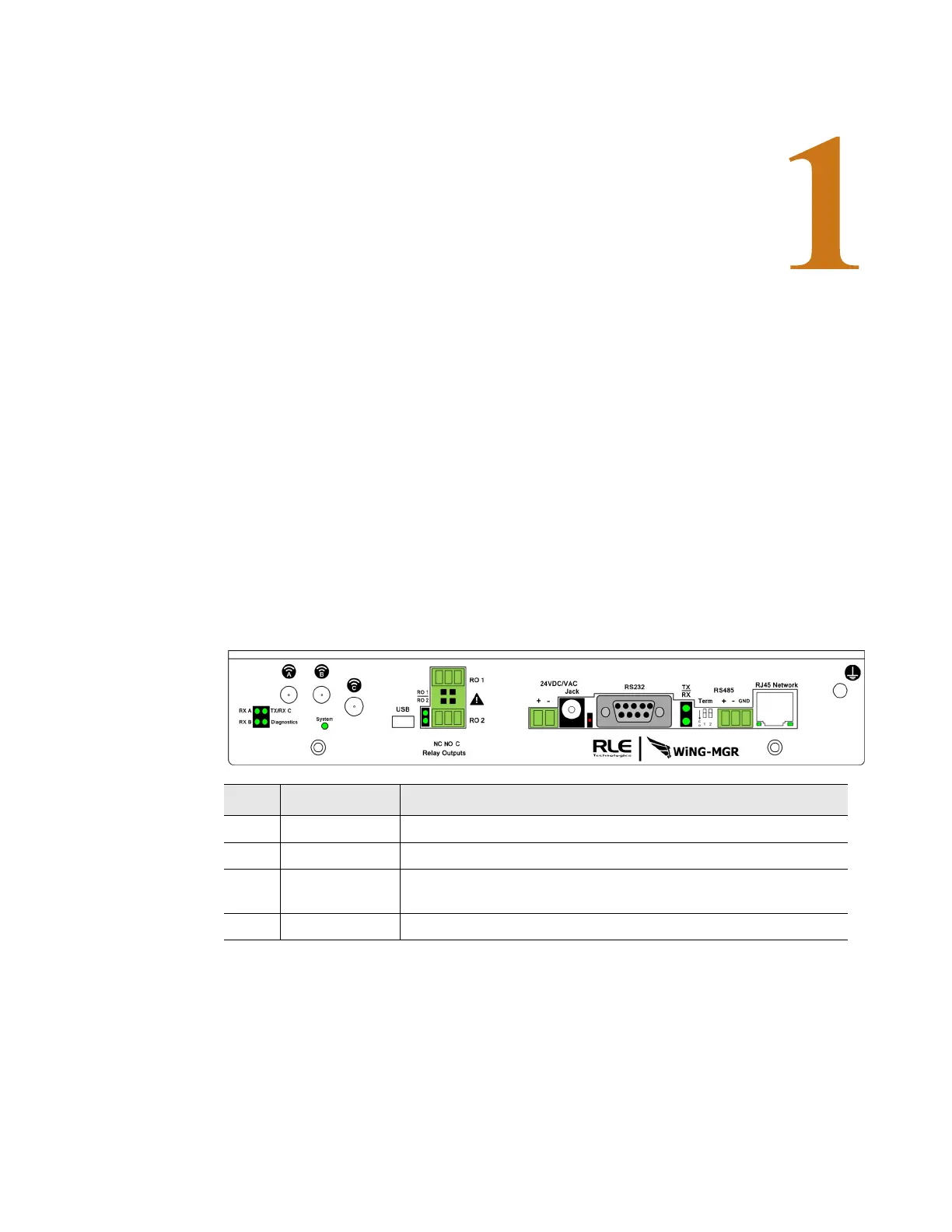

The LEDs on the WiNG-MGR indicate the status of a variety of actions.
5
1
2
4
3
7
6
LED Label Description
1 RX A The WiNG-MGR is receiving information over antenna A.
2 RX B The WiNG-MGR is receiving information over antenna B.
3 TX /RX C The WiNG-MGR is either receiving or transmitting information
over antenna C
4 Diagnostic Used for customer support and troubleshooting
Table 1.1 WiNG-MGR LED Indicators
