2 Getting Started
2.2.2 Wired Relay Outputs
The WiNG-MGR accommodates two wired relay outputs. Any relay output connections must
be made with double insulated wire (jacketed multi-conductor cable). If you wish to use this
functionality, wire the connections now. Your wiring may look similar to the connections
shown here:

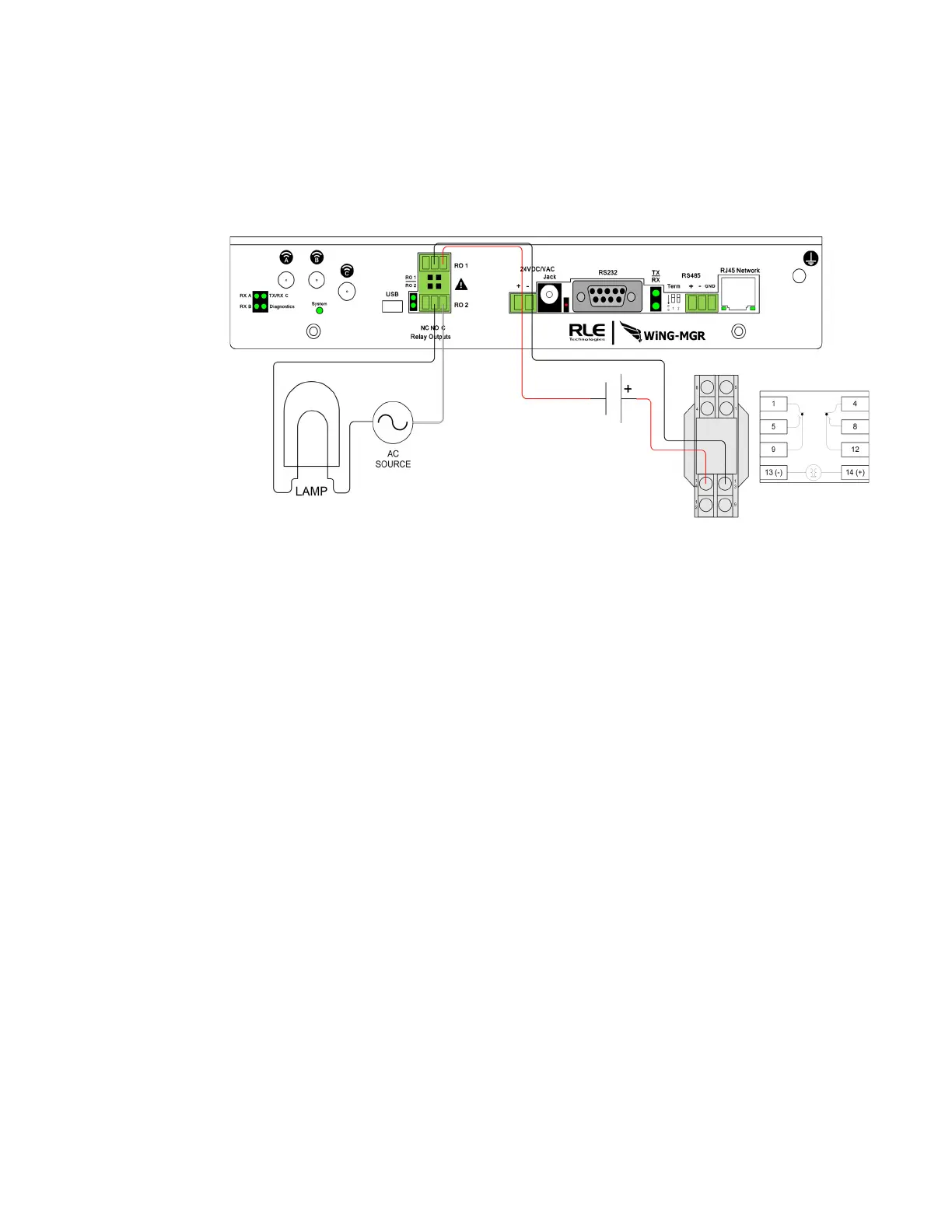

Figure 2.2 Wired Relay Output Connection
