3.5.4 Relay Outputs
The WiNG-MGR has two hard-wired relay outputs labeled K1 and K2. Use this tab to
individually configure the relay outputs. Use the individual sensor pages to designate when a
sensor alarm activates a relay output.

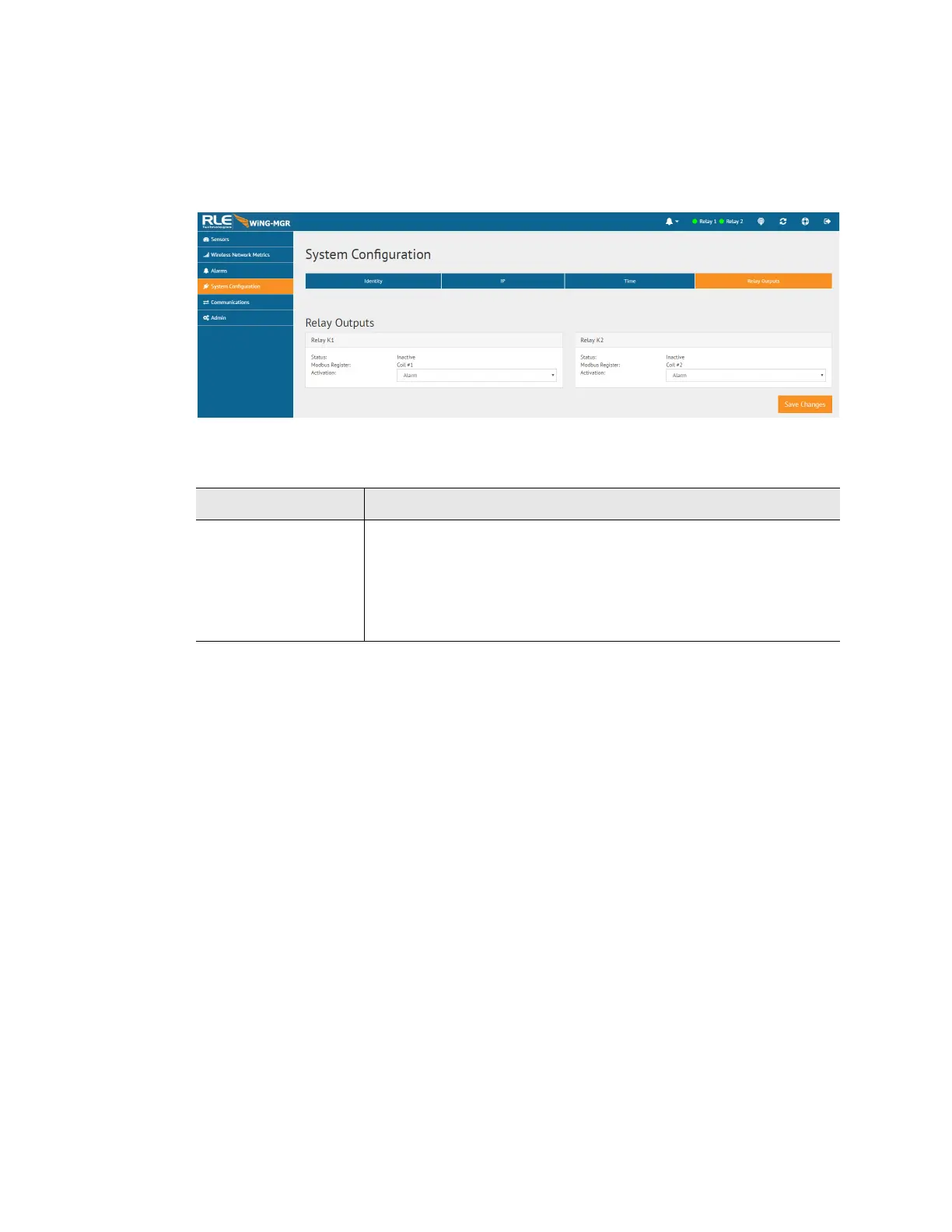

Figure 3.18
Relay Output Configuration
Option Description
Activation Each relay can be configured as an alarm relay, a latching alarm
relay, or a Modbus only relay. When the relay is activated, an alarm
can be triggered or the information can be conveyed via Modbus
only.
Default: Alarm
Table 3.9
Relay Output Configuration Options
