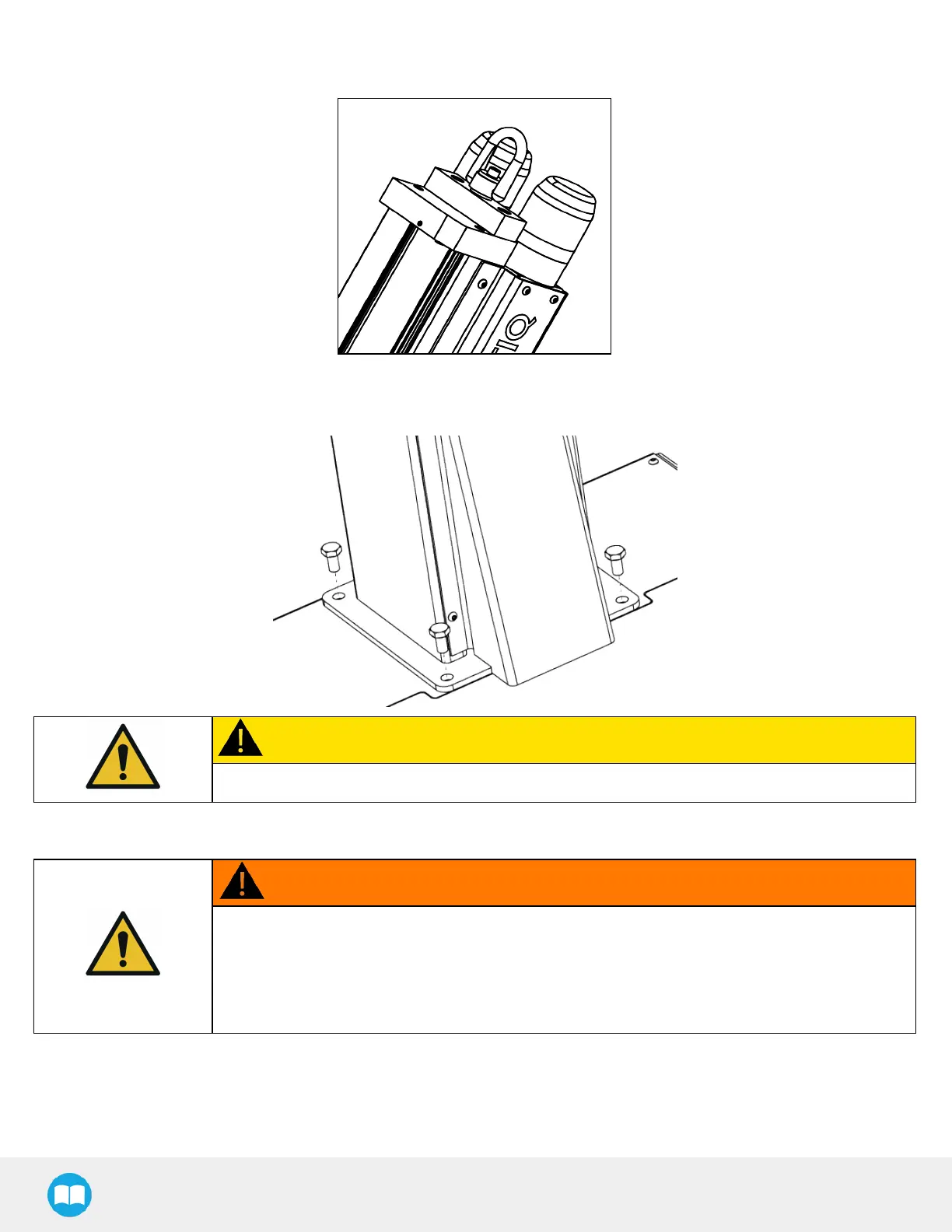

14. Lift and place the column onto the base. Robotiq recommends attaching the hook at the top of the column to a lifting
device (e.g., hoist) to bring the column upright.
15. Secure the column on the base using the four (4) M10 screws and washers provided. Tighten to a torque of 50 Nm.
CAUTION
Make sure to have all components at hand before discarding the crate and the packaging.
3.4.3. Moving and Positioning the Solution
WARNING
l
Failure to properly secure and install the equipment can result in material damage and bodily
injury. In addition, note that the warranty will not cover material damage resulting from an
installation that did not comply with the instructions found in this manual.
l
The transport, lifting, and moving of the Palletizing Solution should be done by qualified and
authorized personnel. Failure to do so may result in machine damage, bodily injury or death.
