Roche cobas b 221 system User Manual

Roche Diagnostics May 2009
B-22 Service Manual · Version 9.0
4 Components cobas b 221 system
T&D system (Turn & Dock)
6 Unplug the AutoQC tube from the tube connection.
7 Unscrew the three screws fastening the T&D module.
e For details, see Figure B-4 on page B-22.
8 Pull the T&D module forward and unplug the actuator bus cable.
A Three screws fastening the T&D module
B T&D lock
C AutoQC tube
D Sample inlet path
E Tubing strip

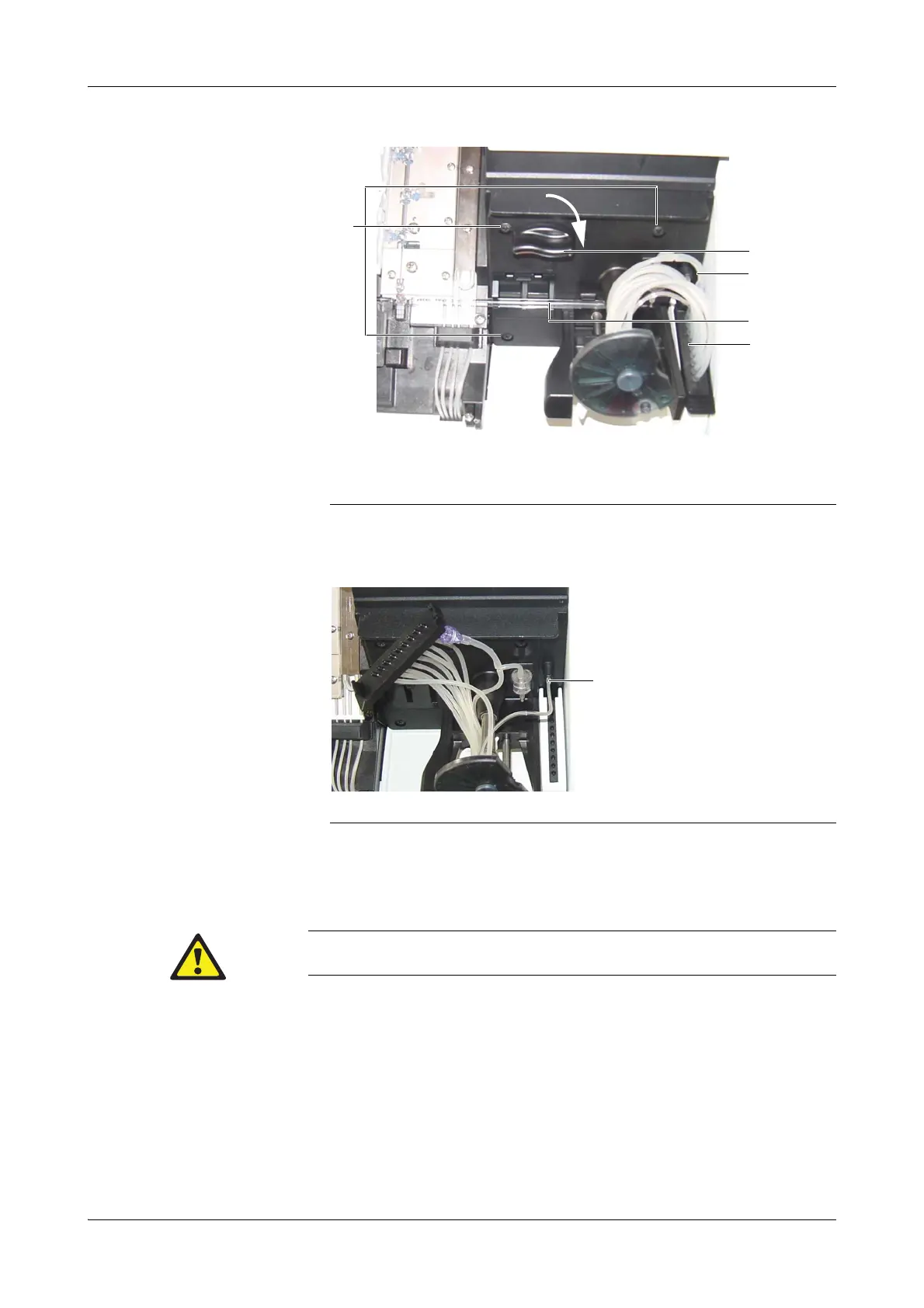

Figure B-4 T&D module
A AutoQC tube
Figure B-5 T&D module - AutoQC tube
B
A
C
E
D
A
Do not remove the fastening screws completely, because they are retained in place by plastic rings to
prevent loss.
