Rocketronics ELS 4 Basic - Appendix 3: Technical Data

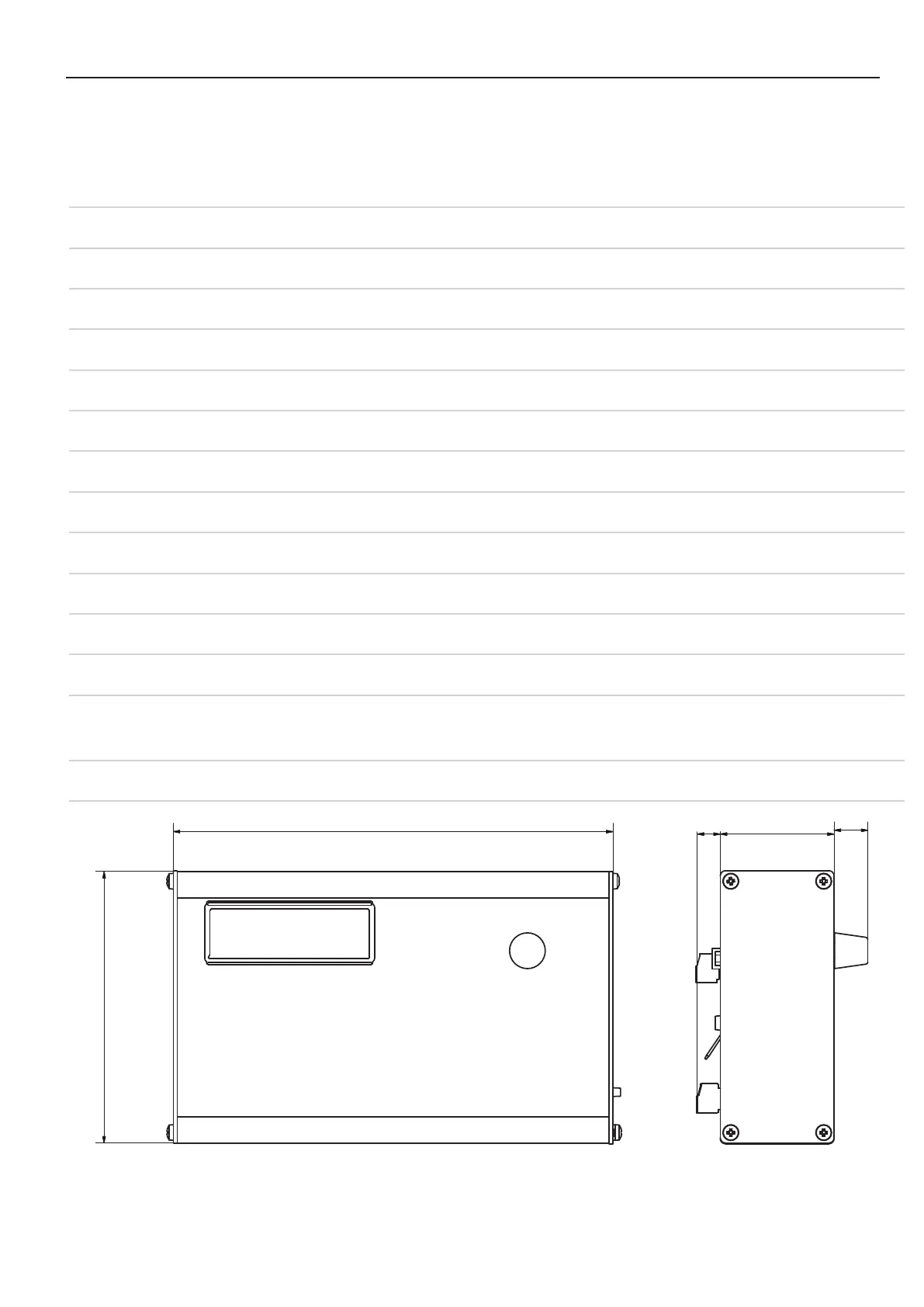

APPENDIX 3: TECHNICAL DATA
Dimensions ca. 168x104x65 mm
Weight 350 g
Operating voltage 12V DC stabilized
Current consumption Max. 1 A
Max. speed 3000 rpm
Max. speed threading 1200 rpm
Smallest step size 0,01mm way in Z- und X-Axis
Smallest possible thread pitch 0,001mm
Max. manual feed rate 4800 mm/min
(1)
Motor outputs 2, Screw and RJ45
Digital-inputs 4 screw
Digital outputs 4 (12V, max 300mA)
Encoder inputs 1, Screw or RJ45
Maximum feed rate ca. 20 mm/rev
(1)
(1)
Depending on encoder and motor setting
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
1
A2
ELS4Basic_Masse
Status Änderungen
Datum Name
Gezeichnet
Kontrolliert
Norm
Datum Name
30.07.2019 Louis
168,00
103,70
43,50
12,90
8,78
103
