GRINDING

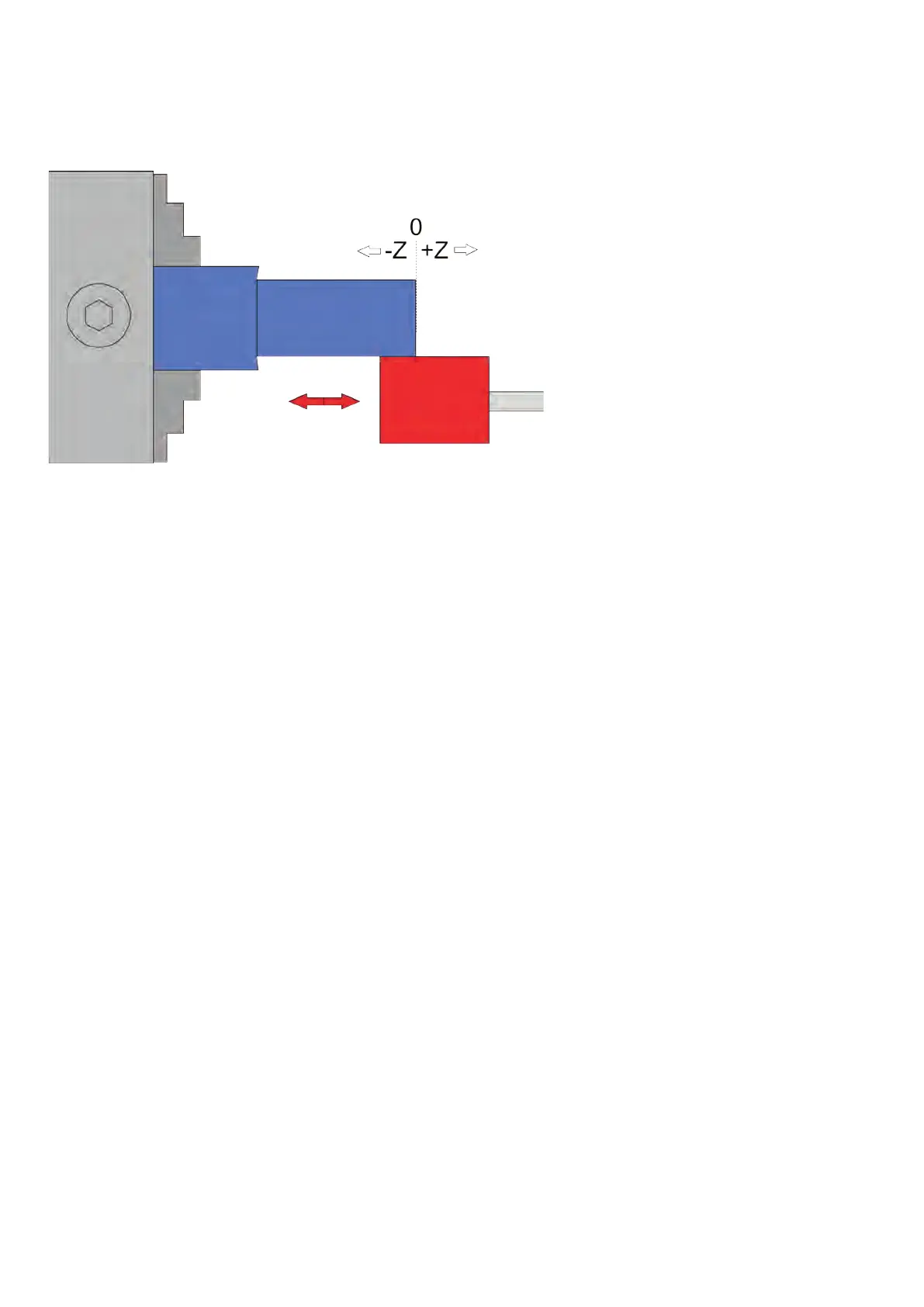

This mode is used for grinding, where up and down is moved in Z direction, the path is dened
by ZP, the feed speed by F.
Set the Z axis to 0, then enter the desired path at ZP. Press START to start the process, press
STOP to stop it.
ATTENTION: This mode works with both stationary and rotating spindles, so it is also
possible to use it for making keyslots when the spindle is left stationary!
You can also specify a path in X with XP. After starting, you can specify the number and depth
of infeeds, as in the other modes. If XP is less than 0 here, the X axis will be advanced at each
pass. This allows automatic grinding or grooving. The latter, however, requires a very strong
drive on the Z axis!
96
