PARTING

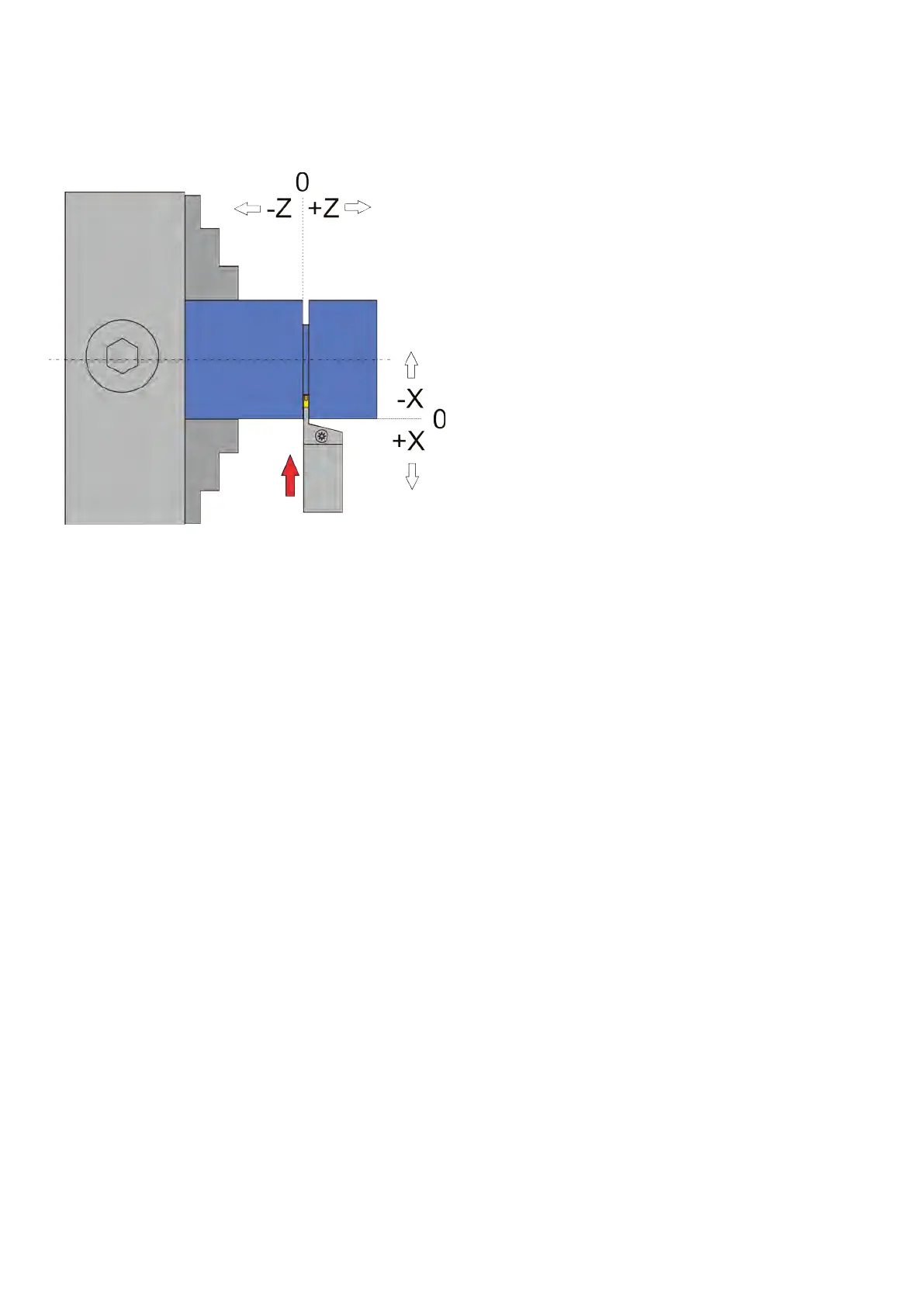

This mode is used to cut round workpieces. Starting from the zero point, the lathe tool travels
here to -X after XP in the direction of the diameter center. ZP values in the Z direction are ig-
nored!
ATTENTION: -X is ALWAYS in the removal direction, in this case -X is therefore away from the
operator. To zero the X axis, always approach the workpiece and set it to 0 to ensure that the
backlash is taken into account.
Moving axes and directions:
• X towards the chuck (-X)
• Z No movement
Required data:
• Feed F in mm/U
• XP: Machining depth in X direction, must be zero or negative
There are two possible variants:
1. XP = 0 so no end point is specied, in which case the movement after the START signal
goes in the -X direction after a safety query until the STOP key is pressed. START-Stop operation
is possible while the vehicle is moving. Only when the STOP button is pressed does the move-
ment abort, after which X is reset to the stop position.
2. XP < 0, so values for depth are specied Here, after a safety query, the system automat-
ically moves to XP at the set feed rate, and then retracts to the stop position. The movement
can be aborted at any time by pressing the STOP key, then it is reset to the stop position.
Values for ZP are ignored here! The Z axis is not moved in this mode.
Available parameters in the parameter menu:
- NONE
66
