E-RADIUS ( EXTERNAL RADIUS CONCAV
This mode is used to rotate concave outer radii. The X and Z axes are moved simultaneously. In
addition to round radii, elliptical radii are also possible.

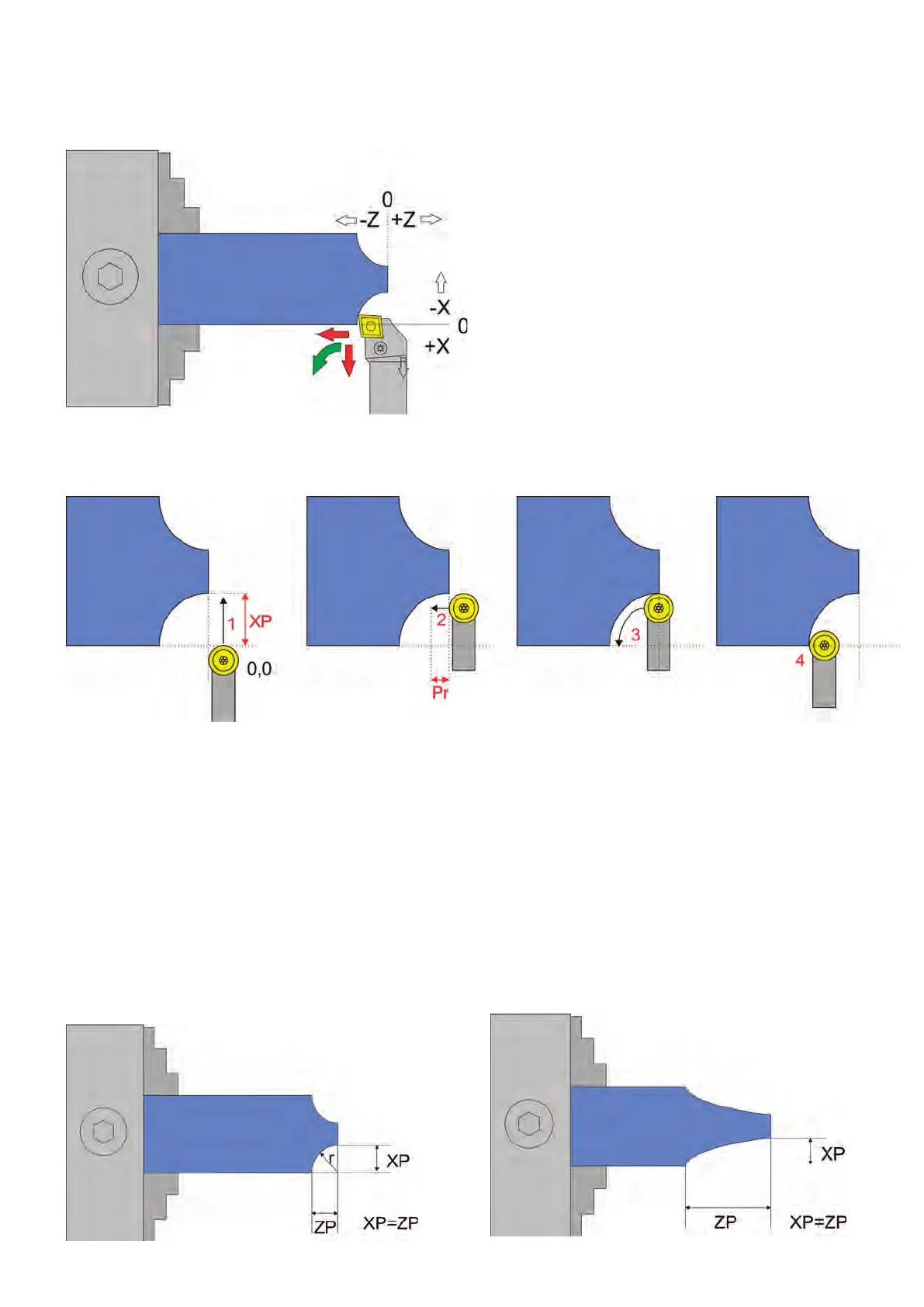

This operation does not go beyond XP and ZP. For clarication, the exact route is shown below:
Pr = cutting radius
1. Tool is moved to -XP
2. Tool is being moved to the left by the Tool Corner Radius PR into the materialContour is
being traversed
3. The traverse ends at -ZP, the tool then stands beyond 0 by the amount of the cutting radius.
4. Then the reset to 0.0 or to the set resting position takes place.
The radius is dened here by the values ZP and XP:
Circular radius: XP=ZP Elliptical radius: XP≠ ZP
