TURNING
Straight chip removal in the longitudinal direction towards the chuck to reduce the diameter of
a workpiece.

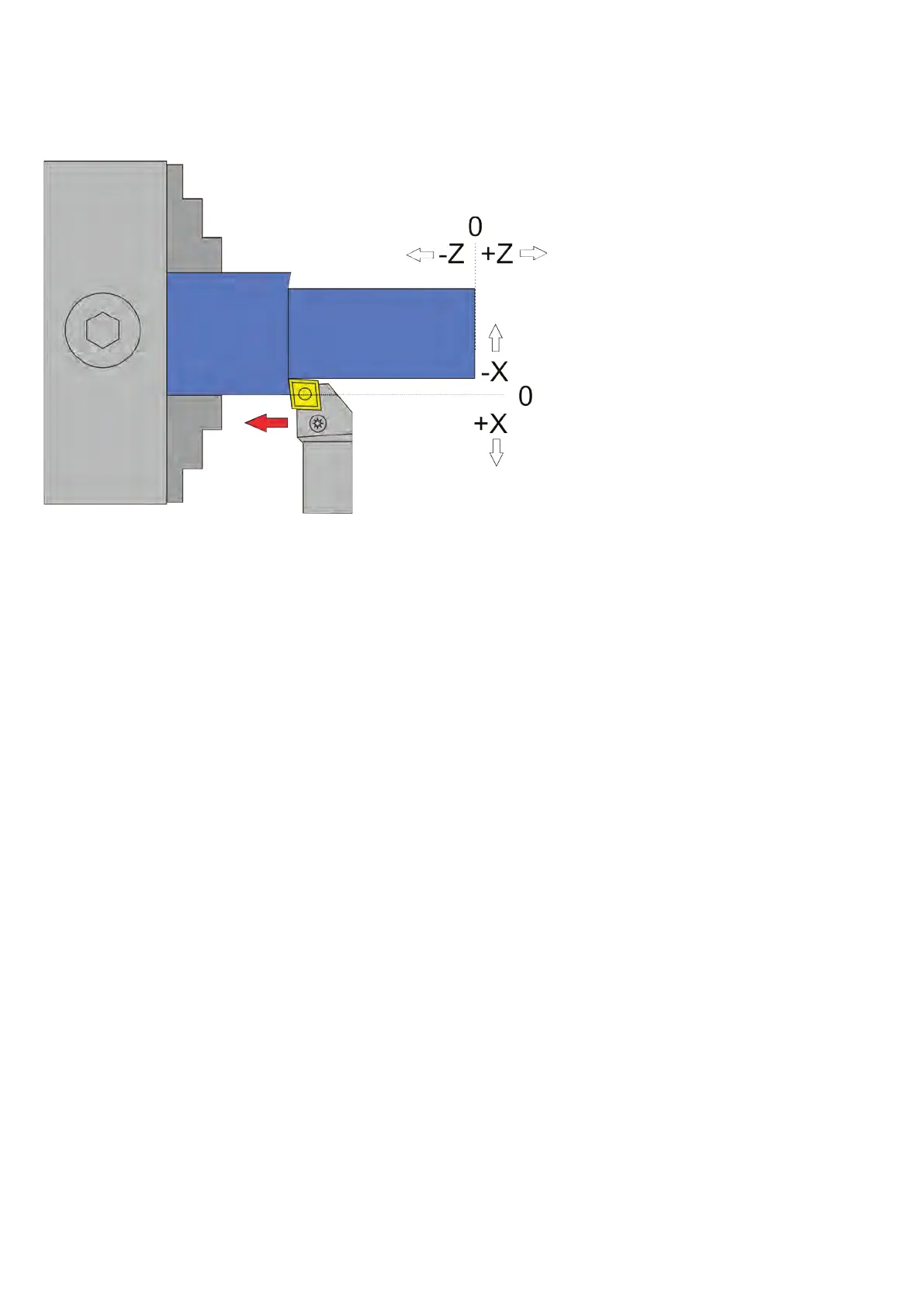

Moving axes and directions:
• X towards the chuck (-X)
• Z towards the chuck (-Z)
Required data:
• Feed F in mm/U
• ZP: Machining length in Z direction, must be zero or negative
Optional data
• XP: Cutting depth in X-direction, must be zero or negative.
• If XP=0, the material is only fed in the Z direction, e.g. for manual feed in the X direction.
• If XP >0, the number of cutting passes can be selected before the start of the process.
Available parameters in the parameter menu:
• X Ap Finish - depth of the last nishing pass in mm
• Finish feed rate - Speed of the nishing pass, either as a percentage of the feed rate set, or if
it continues to exceed 100%, also in discrete values in mm/revolution. The roughing pass is
then carried out at the feed rate (F) set in the cycle, the last nishing pass at the speed set
here in the parameter menu. The setting allows fast roughing with F and subsequent slow
nishing.
Limitations in dimensions: None
Maximum speed: 3000 rpm
The speed can be freely changed during the cut. A stop can be made at any time by pressing
the STOP button.
