Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 147
Chapter 7 Troubleshoot the Kinetix 5300 Drive System
When configured for Frequency Control (IM motors only), Decel and disable
should only be selected when the Current Limiting feature has been enabled.
For more information on this feature, refer to Appendix C on page 197
.
Only selected drive exceptions are configurable. In the drive behavior tables,
the controlling attribute is given for programmable fault actions.

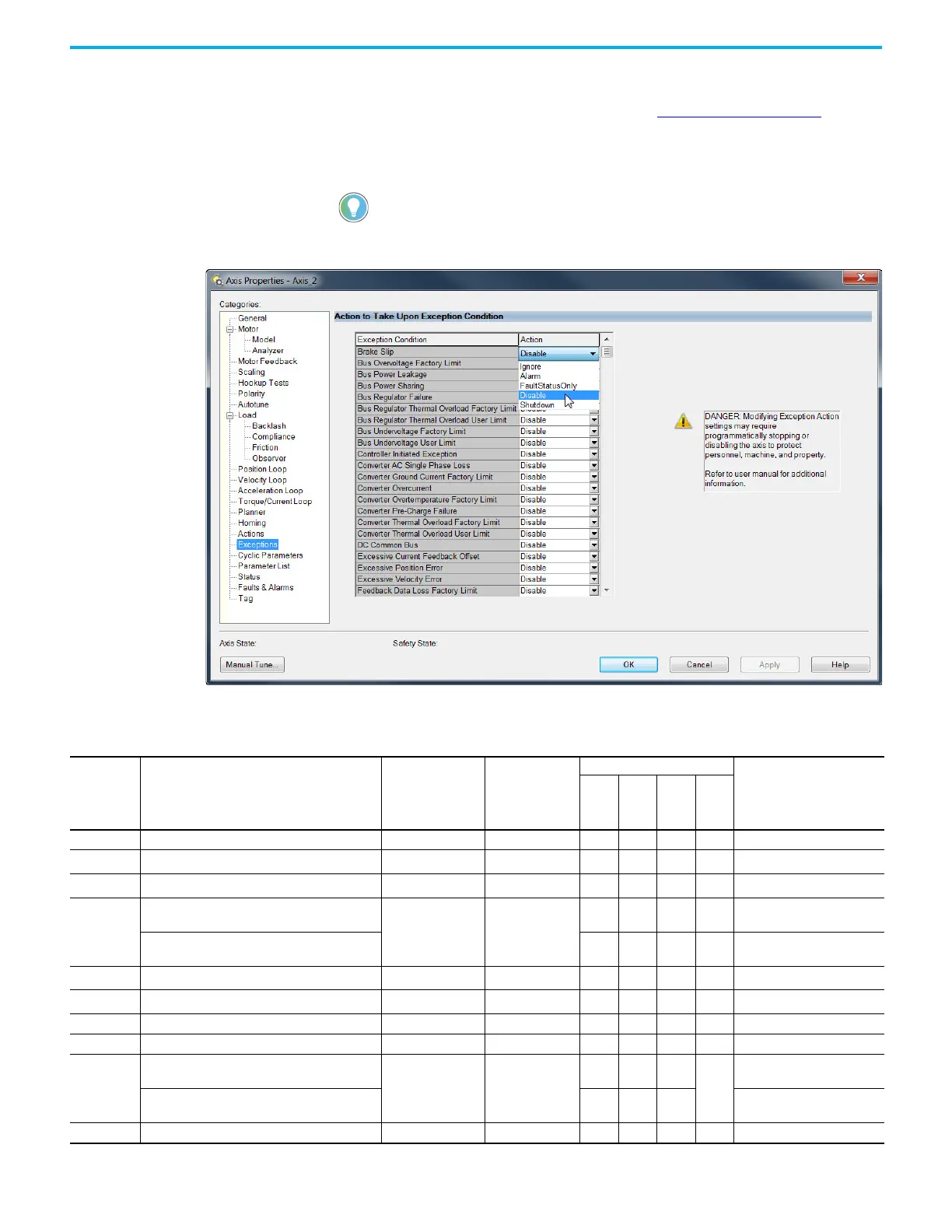

Figure 59 - Logix Designer Axis Properties - Exceptions Category
This dialog box applies to Kinetix 5300 servo drives.
In the Logix Designer application, version 32 or later, Disable replaced
StopDrive as the default Action.
Table 76 - Drive Behavior, Fxx Fault Codes
Exception
Fault Code
Exception Text
Permanent Magnet
Motor
Induction Motor
Fault Action
Best Available
Stopping Action
(applies to major faults)
Ignore
Alarm
Minor
Fault
Major
Fault
F02 Motor Commutation Fault X – – – – X Disable/Coast
F03
(1)
Motor Overspeed Factory Limit Fault X X – – – X Disable/Coast
F04
(1)
Motor Overspeed User Limit Fault X X X X X X
Ramped Decel
(2)
/Hold
F05
Motor Overtemperature Factory Limit Fault
(If #589 vertical load control)
XX
– – – – Current Decel/Disable
Motor Overtemperature Factory Limit Fault
(If not #589 vertical load control)
––––Disable/Coast
F07 Motor Thermal Overload Factory Limit Fault X X – – – X
Ramped Decel
(2)
/Disable
F08 Motor Thermal OverLoad User Limit Fault X X X X X X
Ramped Decel
(2)
/Hold
F09 Motor Phase Loss X – XXXXDisable/Coast
F10 Inverter Overcurrent Fault X X – – – X Disable/Coast
F11
Inverter Overtemperature Factory Limit Fault
(If #589 vertical load control)
XX
–––
X
Current Decel/Disable
Inverter Overtemperature Factory Limit Fault
(If not #589 vertical load control)
– – – Disable/Coast
F13 Inverter Thermal Overload Factory Limit Fault X X – – – X Current Decel/Disable
