Kinetix 6200 and Kinetix 6500 Modular Servo Drives
Modular Drive System (without LIM module)
C
A
T
.
N
O
.
L
D
C
-
M
075500
S
E
R
I
A
L
N
O
.
X
X
X
X
X
X
X
X
X
S
E
R
I
E
S
A
w
w
w
.
a
b
.
c
o
m
M
A
D
E
I
N
U
S
A

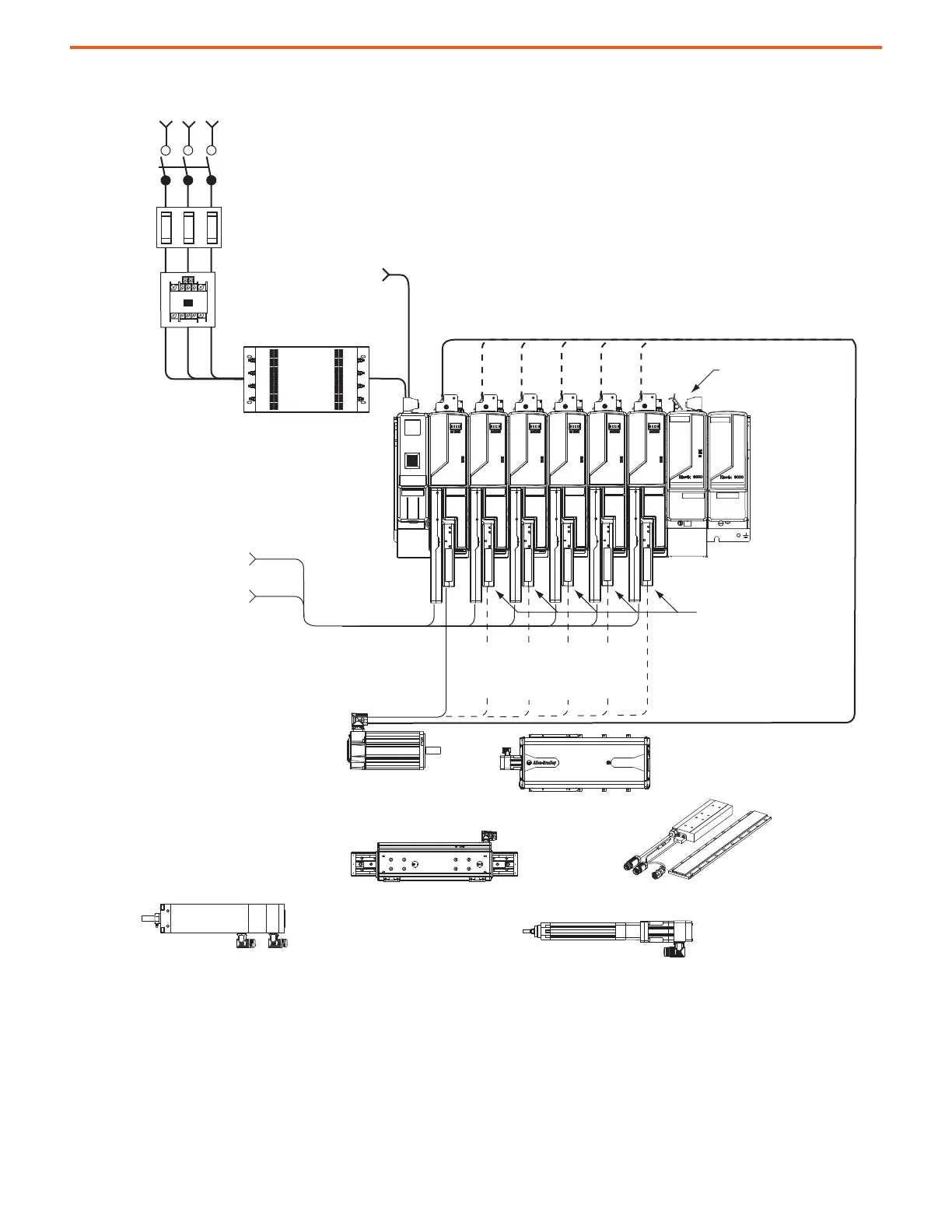

Kinetix 6200 or Kinetix 6500 Multi-axis Servo Drive System
Three-phase Input Power
Single-phase
Control Power
I/O Connections
To Input Sensors
and Control String
2090-K6CK-DxxM
Low Profile Connector Kits for I/O, Safety,
Motor Feedback, and Aux Feedback
Kinetix MPL Rotary Motors
(MPL-Bxxxx motors shown)
Bulletin 2090
Motor Feedback Cables
Bulletin 2090
Motor Power Cables
Line
Disconnect
Device
Magnetic
Contactor
Input
Fusing
2094-BMxx-M
AM Power Modules (5) with
Bulletin 2094
Control Modules (5)
2094-BCxx-Mxx-M
IAM Power Module
with
Bulletin 2094
Control Module
2094-BSP2
Shunt Module
(optional component)
2090-XXLF-xxxx
AC Line Filter
(required for CE)
2094-PRSx
Power Rail
2094-PRF
Slot Filler Module
(required to fill any
unused slots)
Kinetix MPAS Integrated Linear Stages
(MPAS-B9xxx ballscrew shown)
LDC-Series Linear Motors
(LDC-Cxxxxxxx linear motor shown)
Kinetix MPAR Electric Cylinders
(MPAR-Bxxxx electric cylinder shown)
Kinetix MPAI Heavy Duty Electric Cylinders
(MPAI-Bxxxx electric cylinders shown)
LDAT-Series Linear Thrusters
(LDAT-Sxxxxxx-xBx linear thrusters only)
