78 Rockwell Automation Publication KNX-SG001H-EN-P - December 2020
Kinetix 5500 Servo Drives

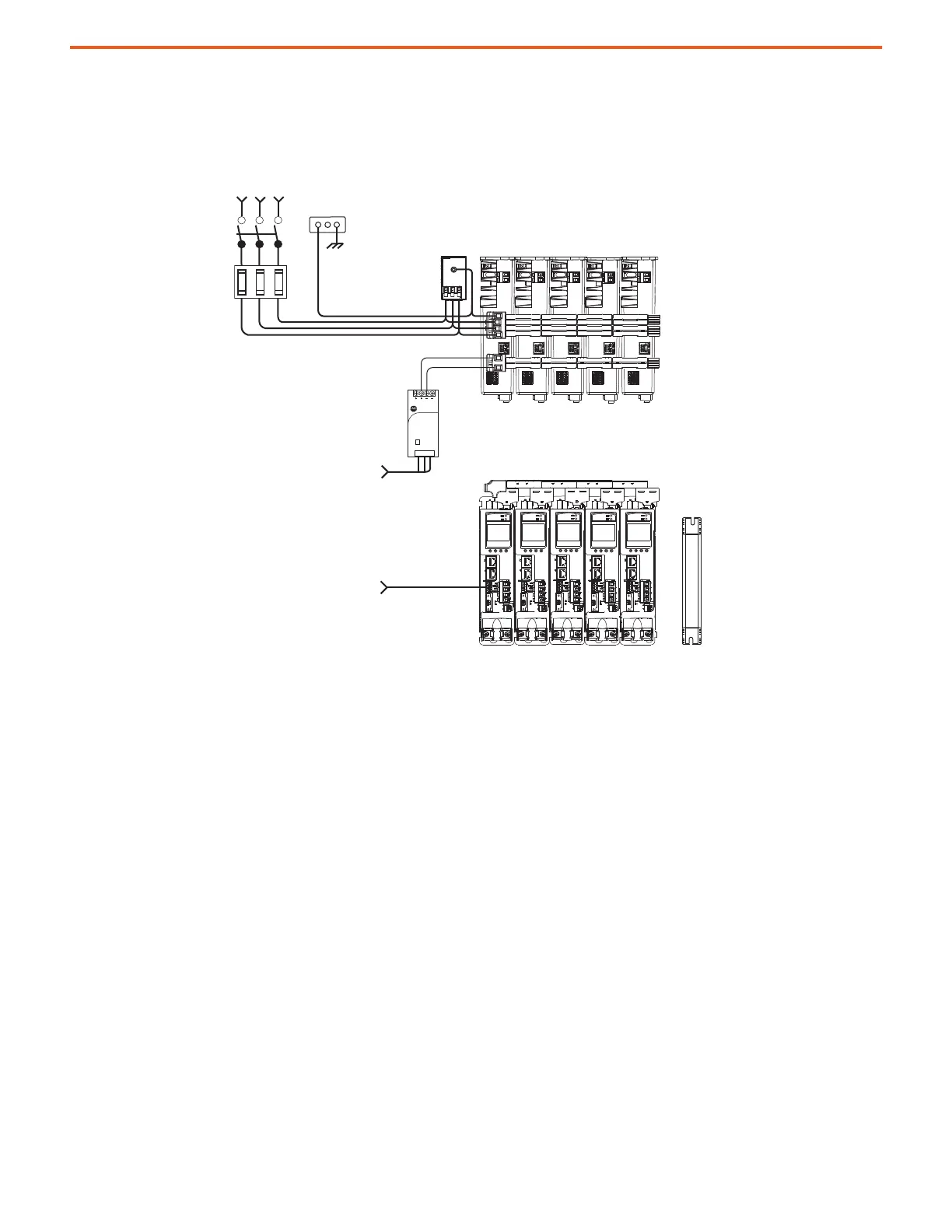

Shared AC Configurations
In this example, three-phase AC power and 24V control power is shared in a multi-axis configuration. All drives must have the same power
rating (catalog number). Capacitor modules are not supported.
1606-XL
Power Supply
Input
Allen-Bradley
Kinetix 5500 Servo Drives (top view)
(2198-H008-ERS drives are shown)
2097-Rx
Shunt Resistor
(optional component)
Line
Disconnect
Device
Circuit
Protection
Three-phase
Input Power
AC Input Power
Bonded Cabinet
Ground Bus
Kinetix 5500 Servo Drives (front view)
(2198-H008-ERS drives are shown)
2198-DBRx-F
AC Line Filter
(required for CE)
Shared AC (mains AC input)
Shared 24V (control power input)
Shared-bus connection system
for bus-sharing configurations.
Digital Inputs
to Sensors and Control String
1606-XLxxx
24V DC Control, Digital Inputs,
and Motor Brake Power
(customer-supplied)
