56 Rockwell Automation Publication 520-UM001K-EN-E - August 2021

Chapter 1 Installation/Wiring

IMPORTANT

The ground cable/shield for both input and output must pass through the EMC core(s), except for the following:

• Frame E drives with internal filters where the grounded input cable must not pass through EMC CORE-E-1.

• 600V drives with external filters where the grounded output cable must not pass through the EMC core(s).

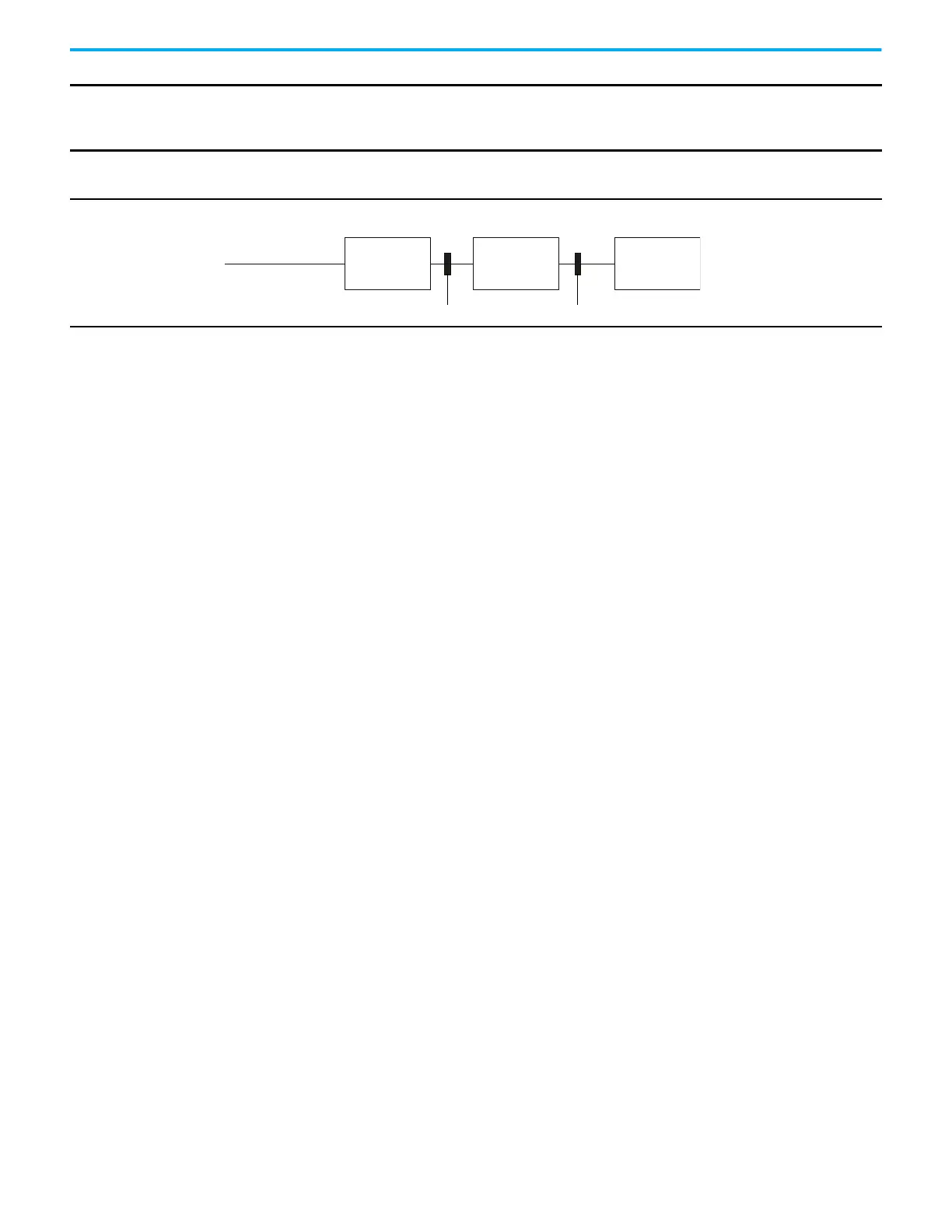

Recommended Placement of EMC Cores Relative to External Filter

Input core Output core

Incoming power

EMC Filter Drive Motor

All Frame sizes
