48 Rockwell Automation Publication 7000-UM202H-EN-P - November 2023
Chapter 2 Power Component Definition and Maintenance

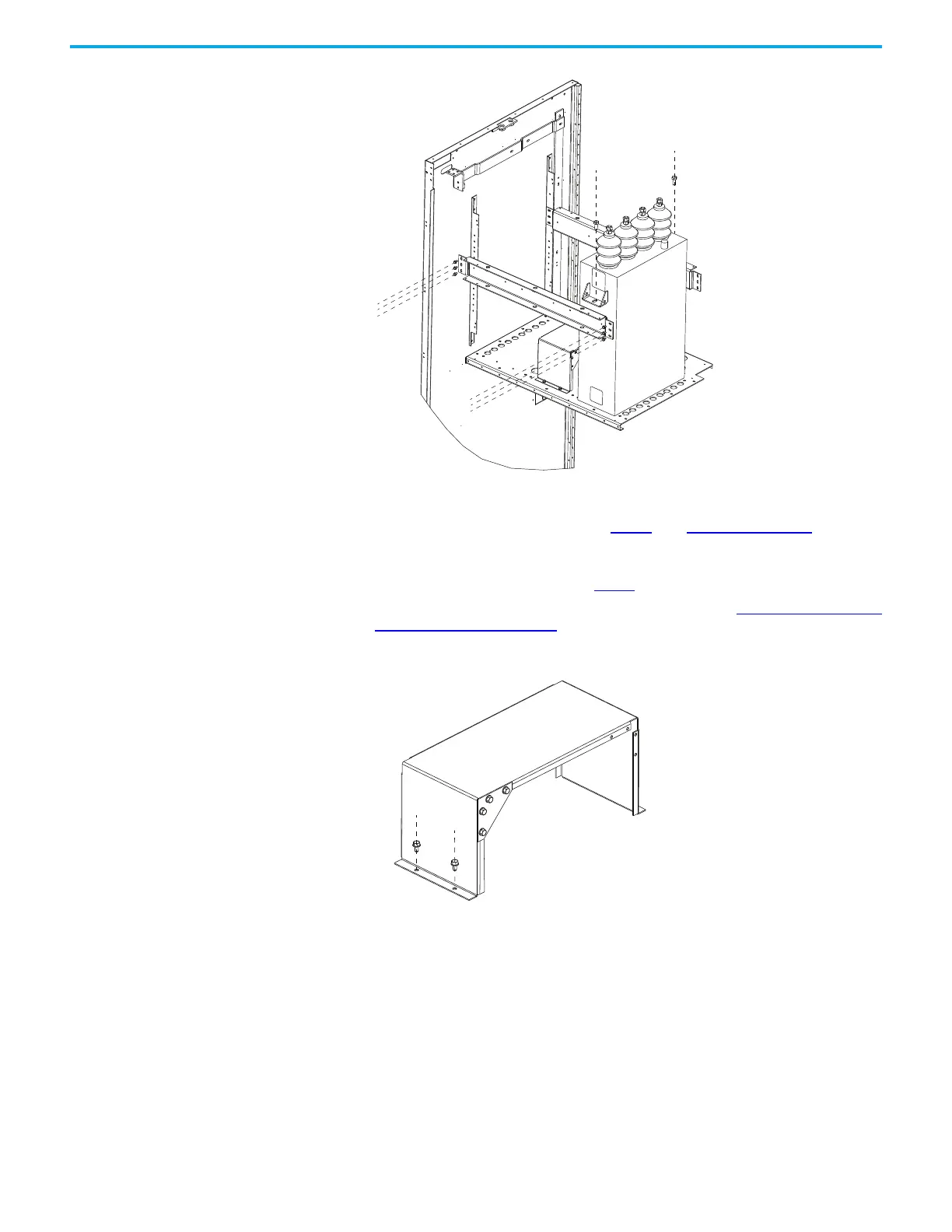

6. Remove the capacitor from the drive.
a. If you are removing a Ducati capacitor, remove the existing capacitor
mounting plate and proceed to step 8
. See Table 3 on page 45 for more
information.
If you are removing an ICAR capacitor, you must install a capacitor
mounting plate. Continue to step 7
.
7. Assemble the capacitor mounting plate as shown in Capacitor Mounting
Plate Assembly on page 46.
a. Fasten the mounting plate to the drive cabinet using four M6 bolts
(6 N•m [4.4 lb•ft]).
8. Slide the new capacitor back until it fits into the slot. Fasten the front
bracket.
Front mounting bracket not shown.
