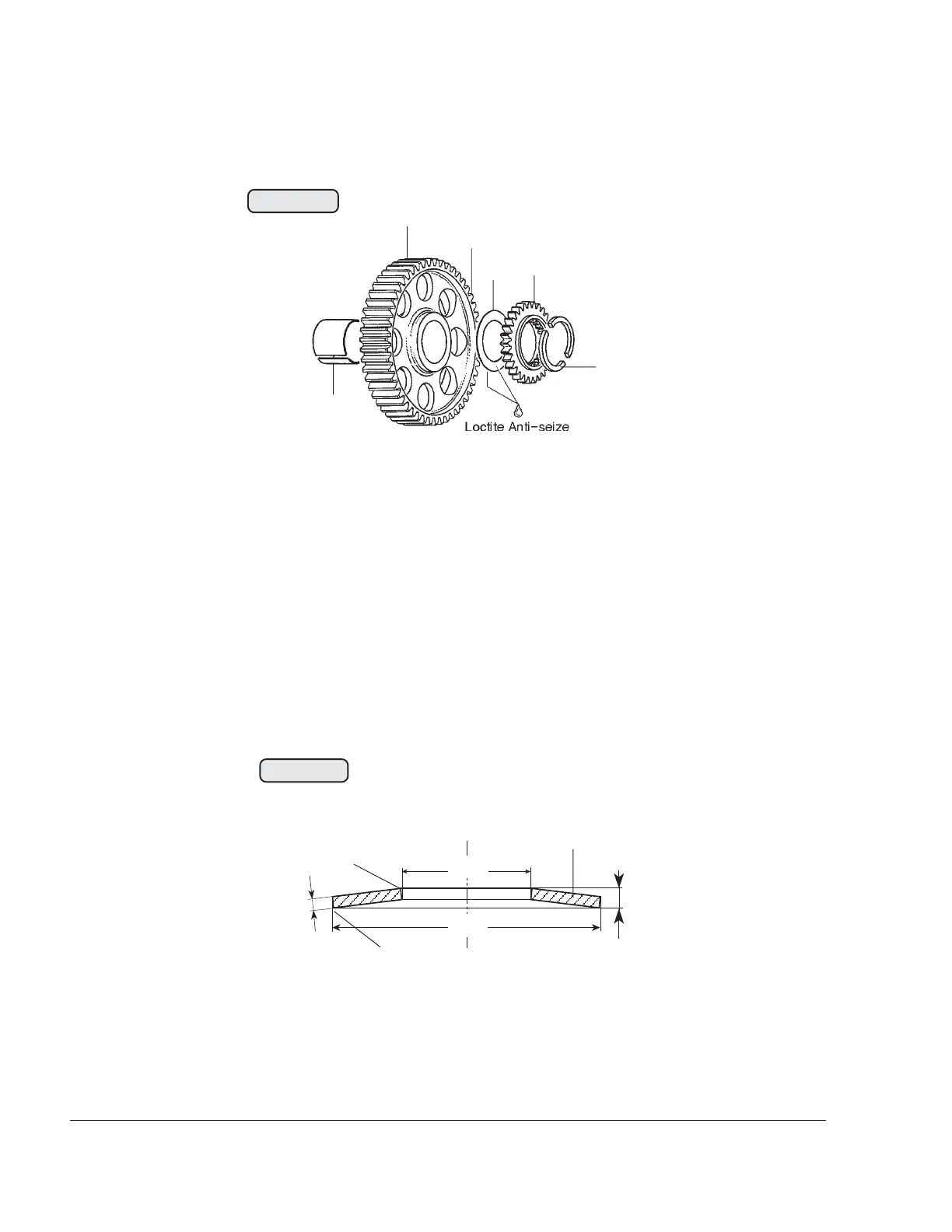

— Carry out a visual inspection of the ring halves (17) and replace if
necessary.
—If there is visible wear to the disc springs (18) in the contact area
(19), they must be replaced. Check dimension (GB13) of the
uncompressed disc spring.
See 72-00-00 sec. 4.
15
00269
Fig. 72-41
Fig. 72-42
3
41
ø
80
ø
Maß dim.
00271
GB13
16
18
19
14
13
17
19
15
11
