BRP-Rotax
Maintenance Manual
Effectivity 912/914 Series
Edition 1 / Rev. 0
72-00-00
page 117
May 01/2007
d02622
A
A
CY04
Description
Findings
Remarks Checked
yes no
Flywheel hub
Propeller shaft
dog gear
dog hub
drive gear
Description
Code
Readings
view min.
Actual readings Remarks Checked
Camshaft
CA05 630 HV10
CA04 900 N/mm2
Cyl. 1 Cyl. 2 Cyl. 3 Cyl. 4
Cylinder head CH08 85 HB
Cylinder CY04 90 HB
CH08
07424
07413
07207
07206

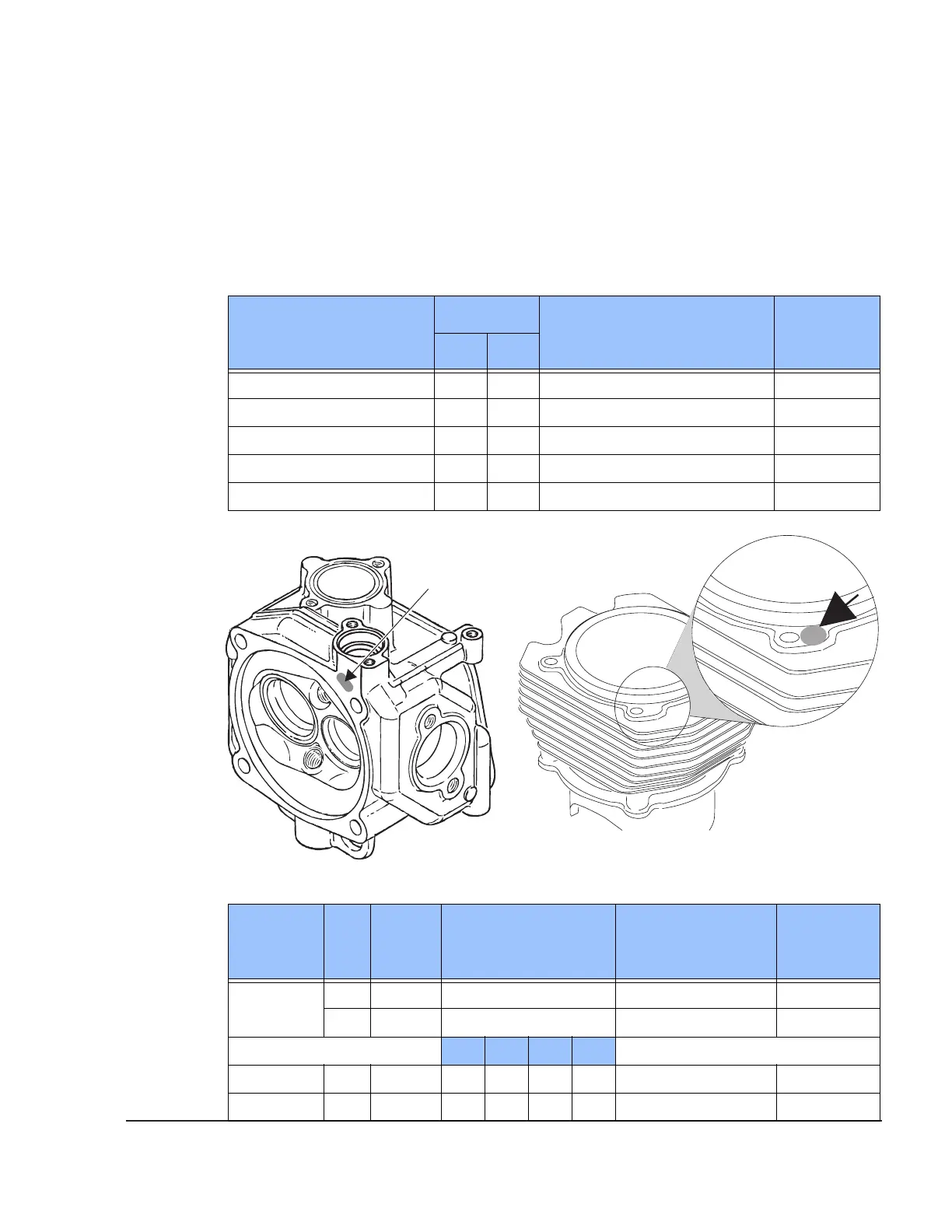

5) Form Sheets
5.1) Form sheet for material testing ROTAX 912/914 Series
5.1.1) Inspection on cracks
5.1.2) Hardness test
