Rotax 912 Series - 4 Wear Limits

Effectivity 912/914 Series
Edition 1 / Rev. 0
79-00-00
page 29
May 01/2007
d02628
BRP-Rotax
Maintenance Manual
Description
Code
Reading new
wear
limit
wear
limit
Readings
min max 100% 50%
Oil pump
Clearance main
pump (pump cover/
rotor)
OP01
0,00
0,0000
0,05
0,0020
0,20
0,0079
0,13
0,0049
actual
renewed
Clearance suction
pump (pump cover /
rotor)
OP01
0,00
0,0000
0,05
0,0020
0,20
0,0079
0,13
0,0049
actual
renewed
0
10
20
30
40
50
60
70
80
90
0.01mm
1
2
3
4
5
6
7
8
9
0

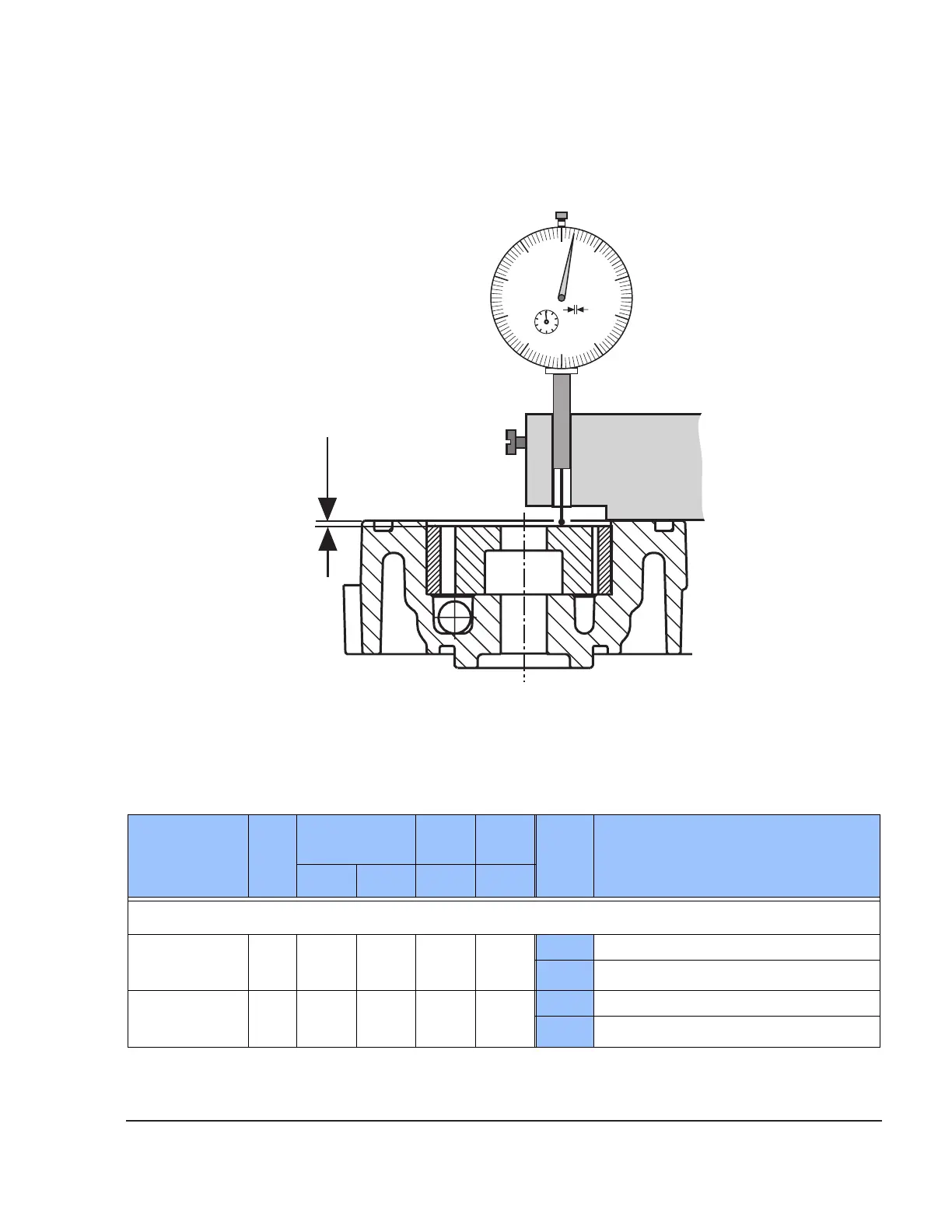

OP01
07429
07204
4) Wear limits
