Rotax 912 Series Service Manual

75-00-00
page 4
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02625
BRP-Rotax
Maintenance Manual
2.2) Connections for instrumentation
■ CAUTION: Consult also the relevant sections on connections for instru-
mentation in the latest Installation Manual.
2.2.1) Cylinder head temperature display
There are temperature sensors screwed in to the cylinder heads of
cylinders 2 and 3. They monitor the material temperature of the head,
not the coolant temperature. The temperature sensor can be con-
nected to a indicating instrument and/or a temperature warning switch.

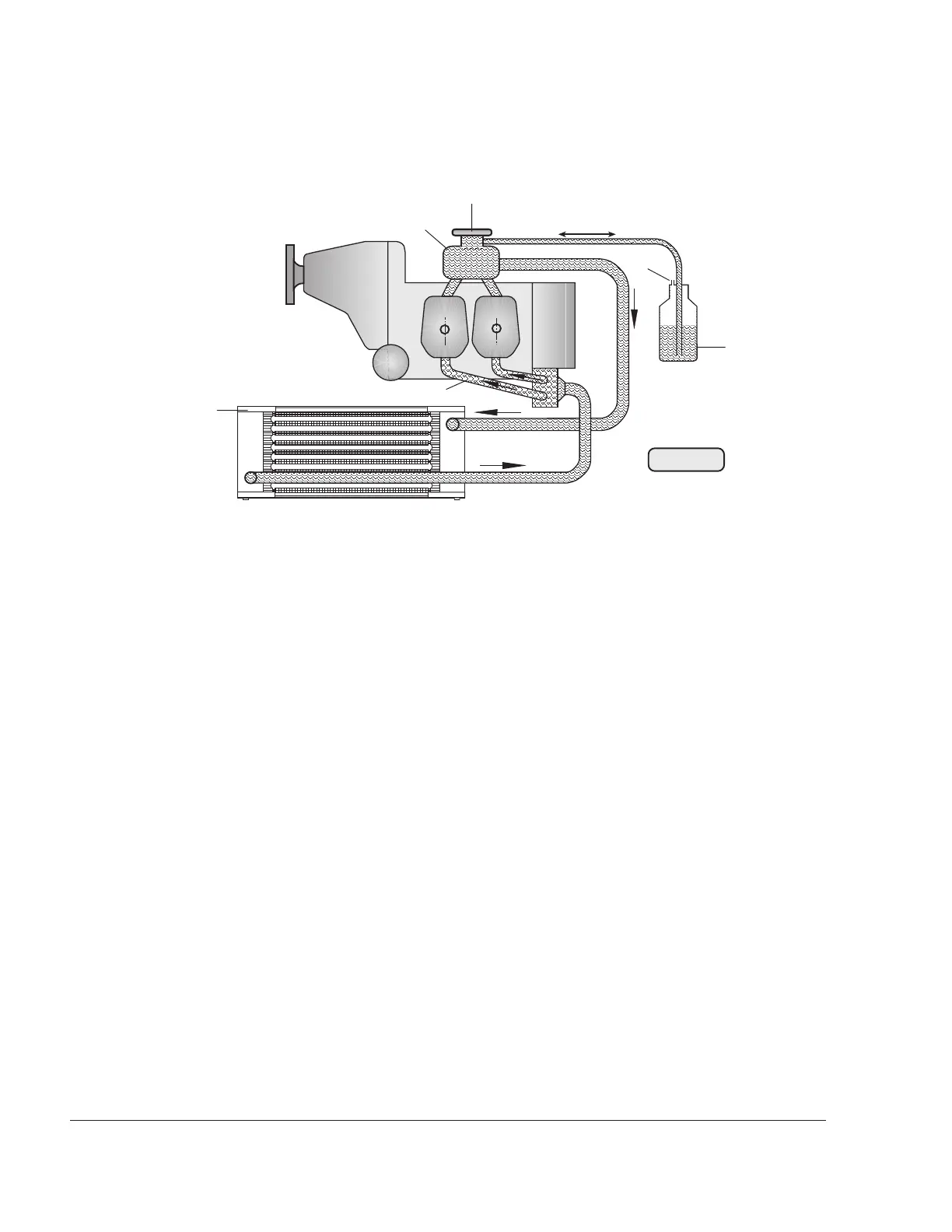

Fig. 75-1
00125
6
1
2
3
4
5

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
