Rotax 912 Series Service Manual

Effectivity 912/914 Series
Edition 1 / Rev. 0
80-00-00
page 7
May 01/2007
d02629
BRP-Rotax
Maintenance Manual
3.2) Electric starter — disassembly
3.2.1) Standard starter

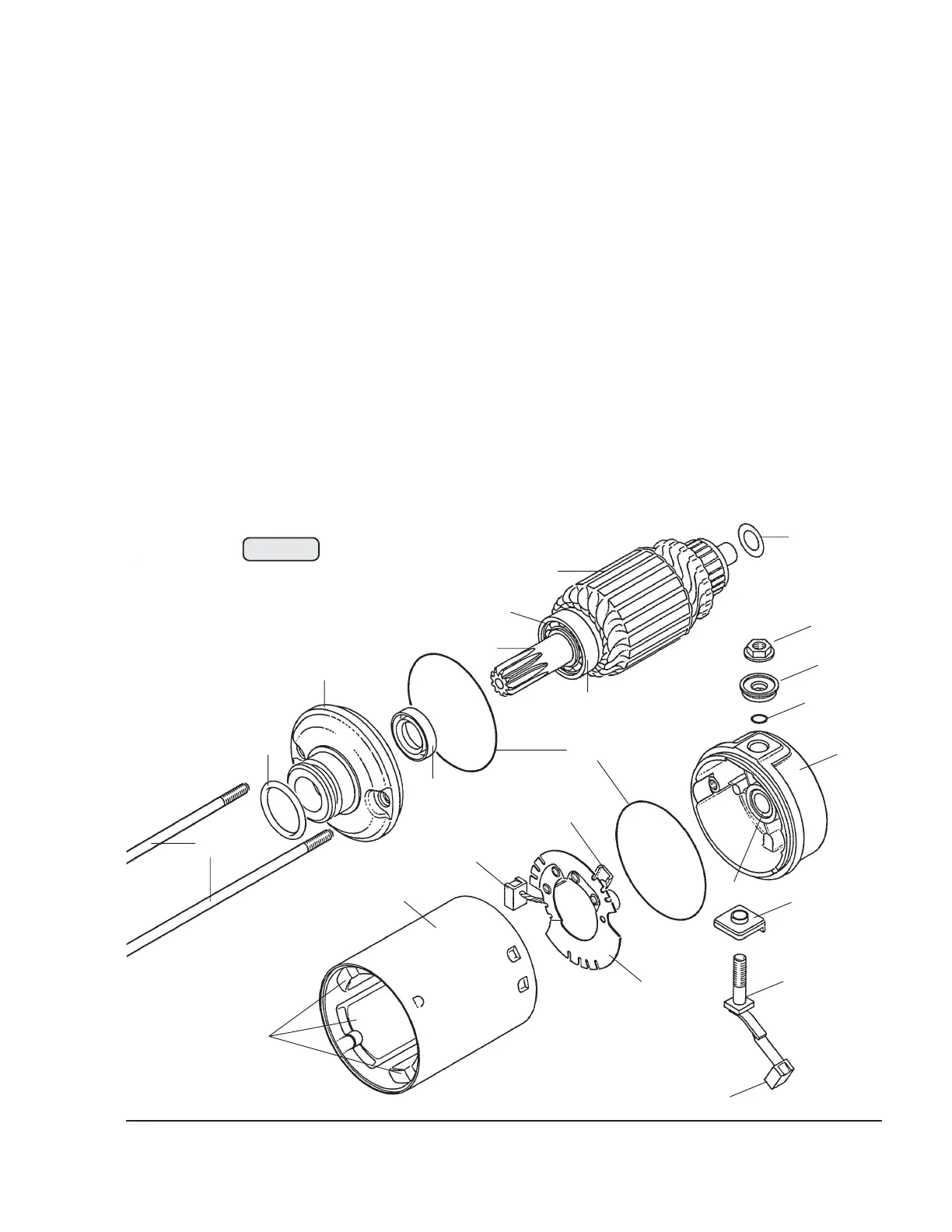

See Fig. 80-3
Unscrew combined nut (23) and remove connector sheath (17) with O-
ring (19). Pull bearing flange (1) off the starter housing (2). Carefully pull
rotor bearing (3) a short way off the starter housing and press the
positive carbon brush (23) with the connector sheath (17) out of the
rotor bearing.
Remove brush holder (4) with the carbon brushes from the rotor (5).
Pull rotor out of the starter housing together with compensating shim
(6) . Clean all parts thoroughly. See 00-00-00 sec. 10.3.
00231
22
19
20
1
23
17
10
12
5
6
13
3
19
14
15
23
4
17
21
18
2
14
11
Fig. 80-3

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
