Rotax 912 Series Service Manual

Effectivity 912/914 Series
Edition 1 / Rev. 0
74-00-00
page 53
May 01/2007
d02624
BRP-Rotax
Maintenance Manual
IGNITION CIRCUIT A
(1) alternator cable, red
shorting cable, white
(2) pick-up cable
white, for ignition circuit A-Cyl. 3
white/red, for ignition circuit A-Cyl. 4
(3) pick-up cable
white, for ignition circuit A-Cyl. 1
white/red, for ignition circuit A-Cyl. 2
(4) primary cable for ignition coil,
ignition circuit A, Cyl. 3/4, black (ground)
ignition circuit A, Cyl. 3/4, white
(5) primary cable for ignition coil,
ignition circuit A, Cyl. 1/2, black (ground)
ignition circuit A, Cyl. 1/2, white
04787
Fig. 74-35
Geberpaar
A1/2 B3/4
Geberpaar
A3/4 B1/2
3B
3T 1B
1T
2B
2T
4B
4T
B3/4
A1/2
Zündab-
schaltung:
Kondensator
oben:
Zündkreis A
Kondensator
unten:
Zündkreis B
B1/2
A3/4
6
9
10
1
4
5
B
A
zum
Kondensator
weiß - weiß/rot
weiß - weiß/rot
weiß - weiß/rot
weiß - weiß/rot
rot
rot
weiß
weiß
Generatorleitungen
Zündkreis A und B
3
7
8
Geberleitungen
von Zündkreis B
sind an beiden
Enden
rot
markiert
weiß
weiß
2
3B
3T
1T
1B
2B
2T
4B
4T
IGNITION CIRCUIT B
(6) alternator cable, red (from stator)
shorting cable, white (to capacitor)
(7) pick-up cable
white, for ignition circuit B-Cyl. 1
white/red, for ignition circuit B-Cyl. 2
(8) pick-up cable
white, for ignition circuit B-Cyl. 3
white/red, for ignition circuit B-Cyl. 4
(9) primary cable for ignition coil,
ignition circuit B, Cyl. 1/2, black (ground)
ignition circuit B, Cyl. 1/2, white
(10)primary cable for ignition coil,
ignition circuit B, Cyl. 3/4, black (ground)
ignition circuit B, Cyl. 3/4, white

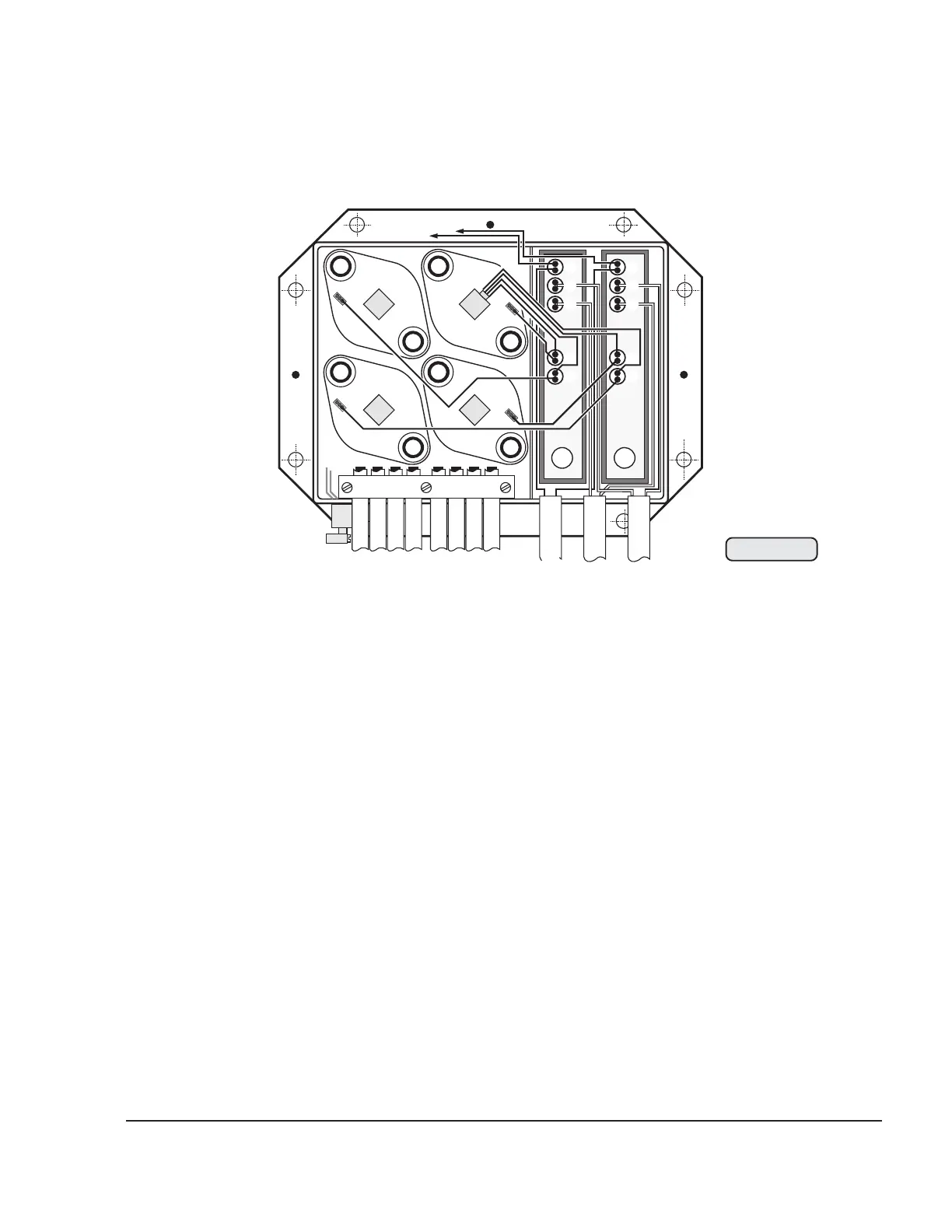

3.21.2) Interference suppression box wiring diagram

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
