3.3.2) Float needle valve leakage test
See Fig. 73-12.
This check is carried out to ensure that the float valve seat is not leaking.
If the pressure is not maintained, pay particular attention during
disassembly to the float valve with the viton tip and the carburetor
housing.
Turn the carburetor upside down, as the float needle valve is only
closed in this position.
Connect pump (1) to the fuel supply line (2) and generate an excessive
pressure of approx. 0.4 bar (5.8 p.s.i.).
The excessive pressure must be maintained for about 5 seconds.
■ CAUTION: If excessive pressure drops, this indicates leakage
which may cause fuel overflow and in consequence
engine damage due to hydraulic shock.
Replacement of the float valve seat is not permissible.
07714

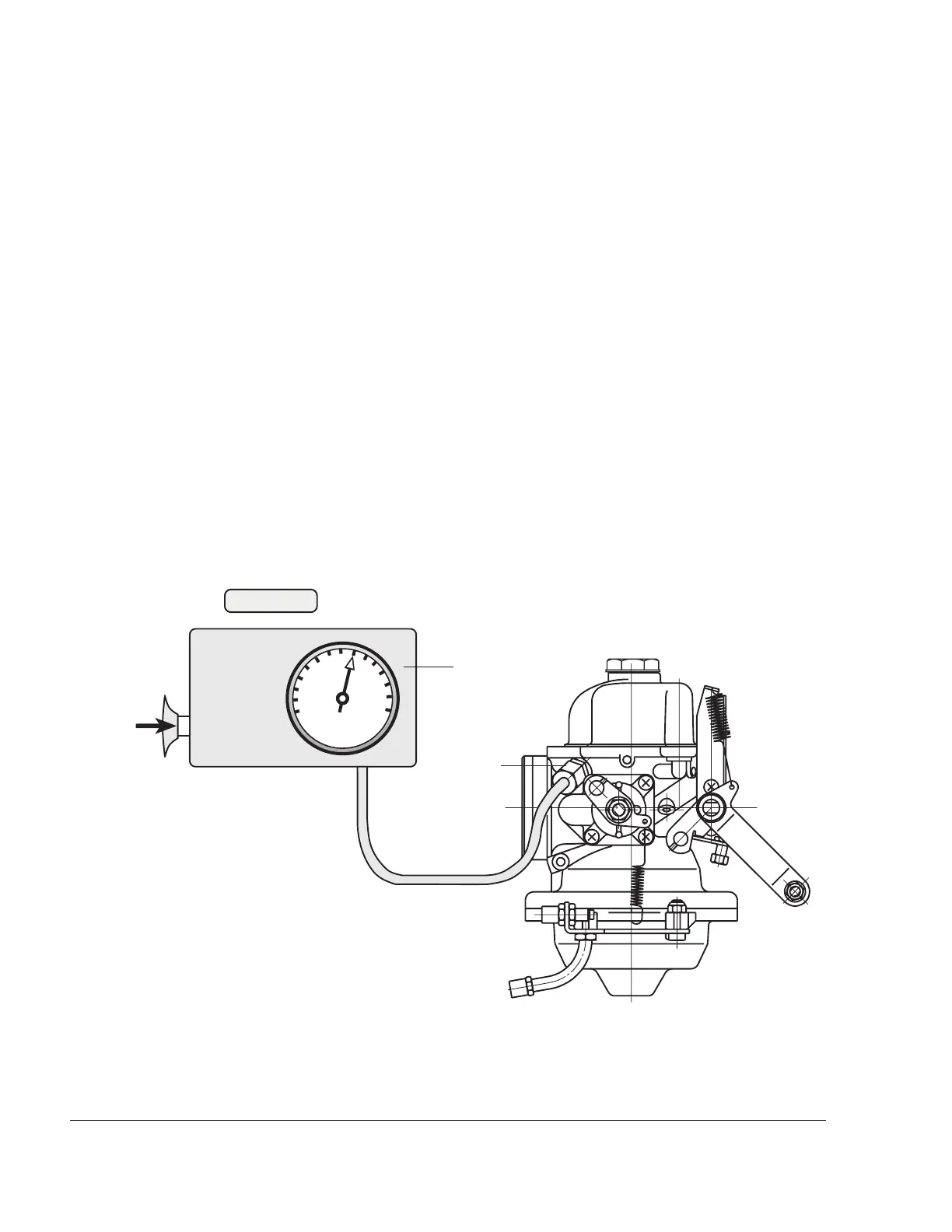

Fig. 73-12
1
2
