Rotax 912 Series Service Manual

BRP-Rotax
Maintenance Manual
72-00-00
page 50
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02622
07705
■ CAUTION : If the disc springs are not well centered, the dog gear
cannot be depressed sufficiently to allow insertion of
ring halves. Do not increase the pressure, but remove
the clutch again and center the disc springs more
accurately.
◆ NOTE: Coat contact surfaces of disc springs and dogs as well
as the tooth profile of propeller shaft with LOCTITE
Anti-Seize.

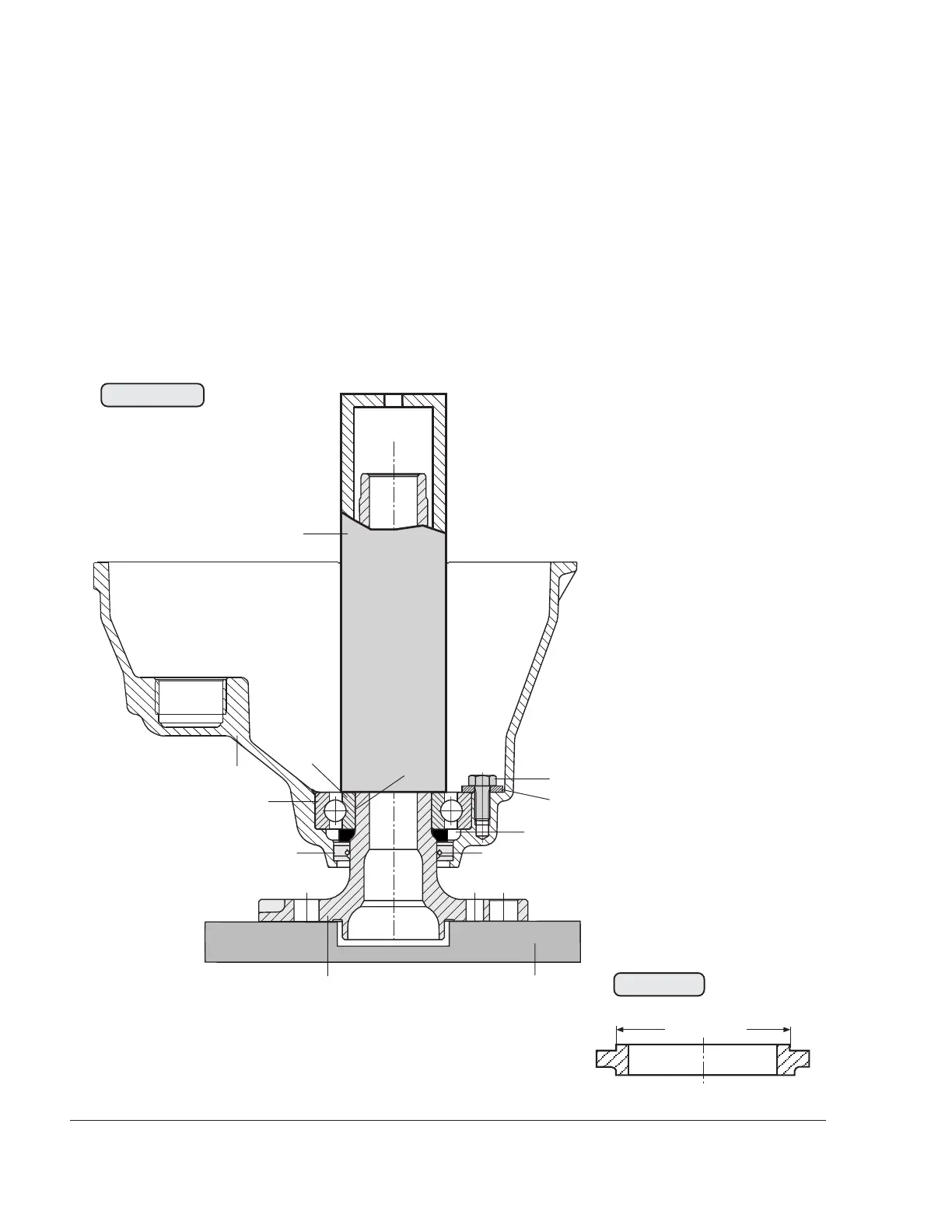

Fig. 72-51
ø 40,8 mm
1,606 in.
1
2
3
4
5
6
7
89
11
12
10
00276
Fig. 72-52

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
