Rotax 912 Series - Page 120

BRP-Rotax
Maintenance Manual
72-00-00
page 52
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02622
08208

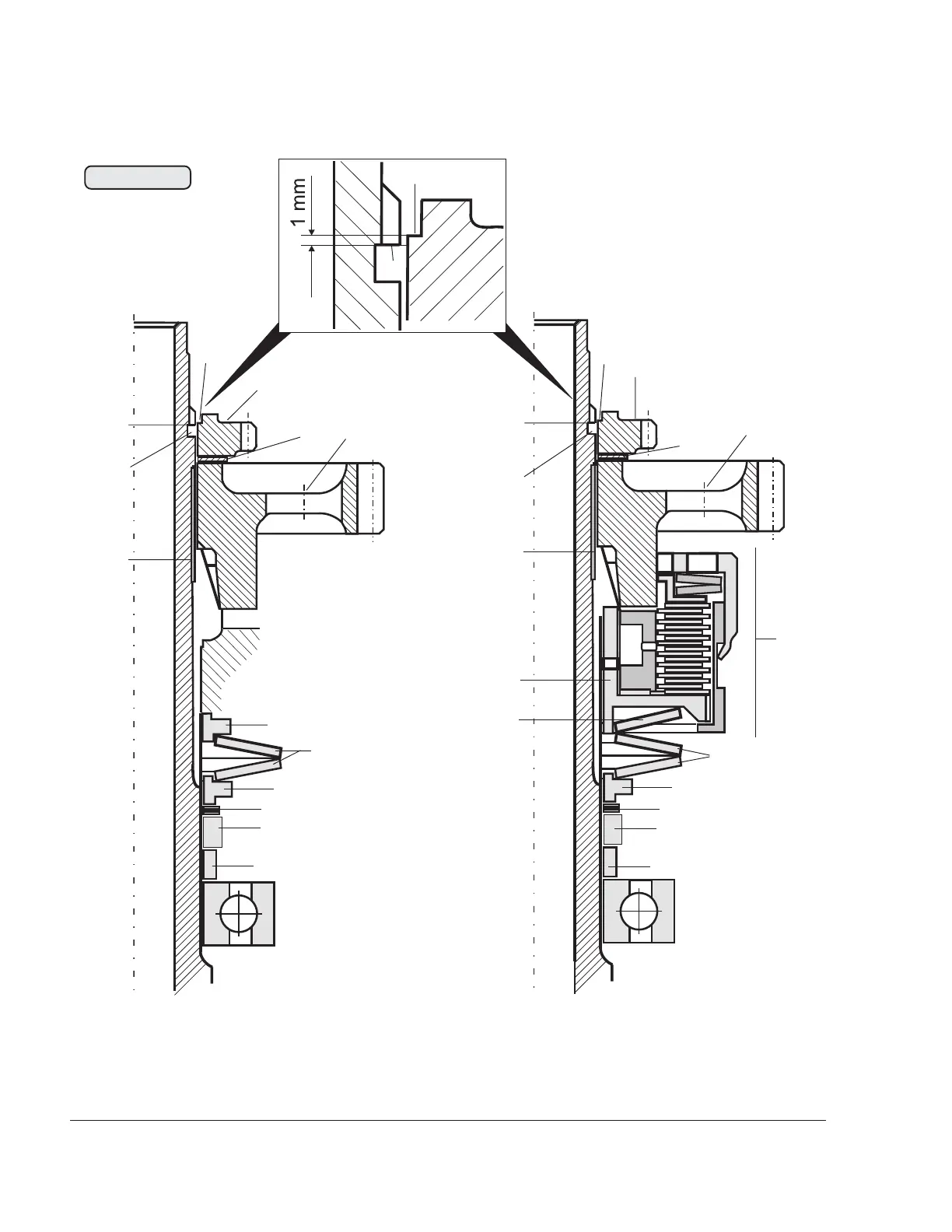

Fig. 72-53
Version with
dog hub
Version with
overload clutch
16
17
18
19
20
15
13
14
15
26
13
14
15
26
16
20
25
27
24
23
22
21
25
27
24
23
22
21
11
25
0.039 in.
