Rotax 912 Series Service Manual

Effectivity 912/914 Series
Edition 1 / Rev. 0
74-00-00
page 47
May 01/2007
d02624
BRP-Rotax
Maintenance Manual
07728
00089
IH03
IH02
Fig. 74-28
On older engine
models
On new engine models
(„clip on pickup“)
4
3
2
1
07138
07139
23
22
21

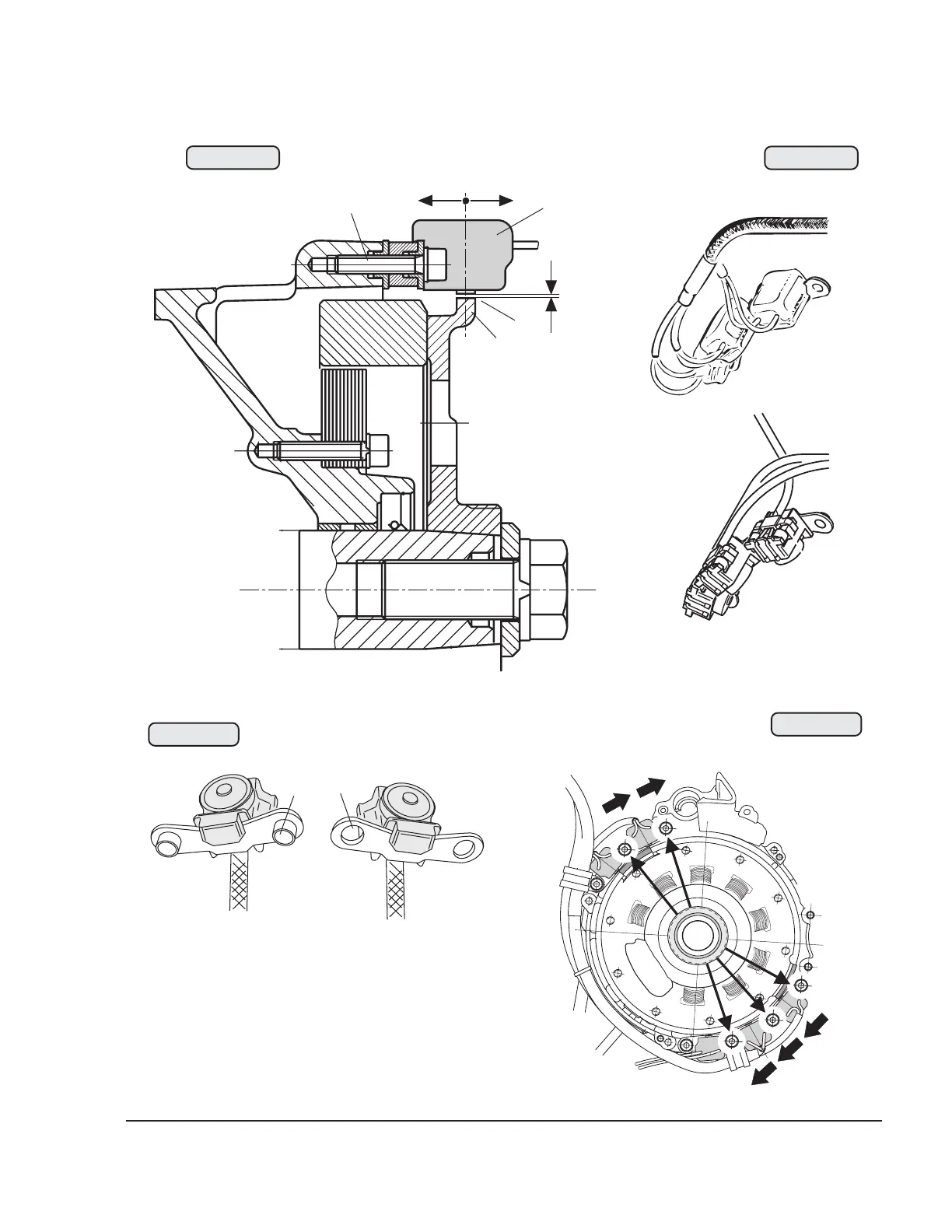

Trigger coil alignment
Fig. 74-29
Fig. 74-30
Fig. 74-31

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
