Rotax 912 Series Service Manual

Effectivity 914 Series
Edition 1 / Rev. 0
76-00-00
page 7
May 01/2007
d02626
BRP-Rotax
Maintenance Manual
1
2
7
00139
13
14
15
8
9
10
11
12
4
5
6
7
1
2
3

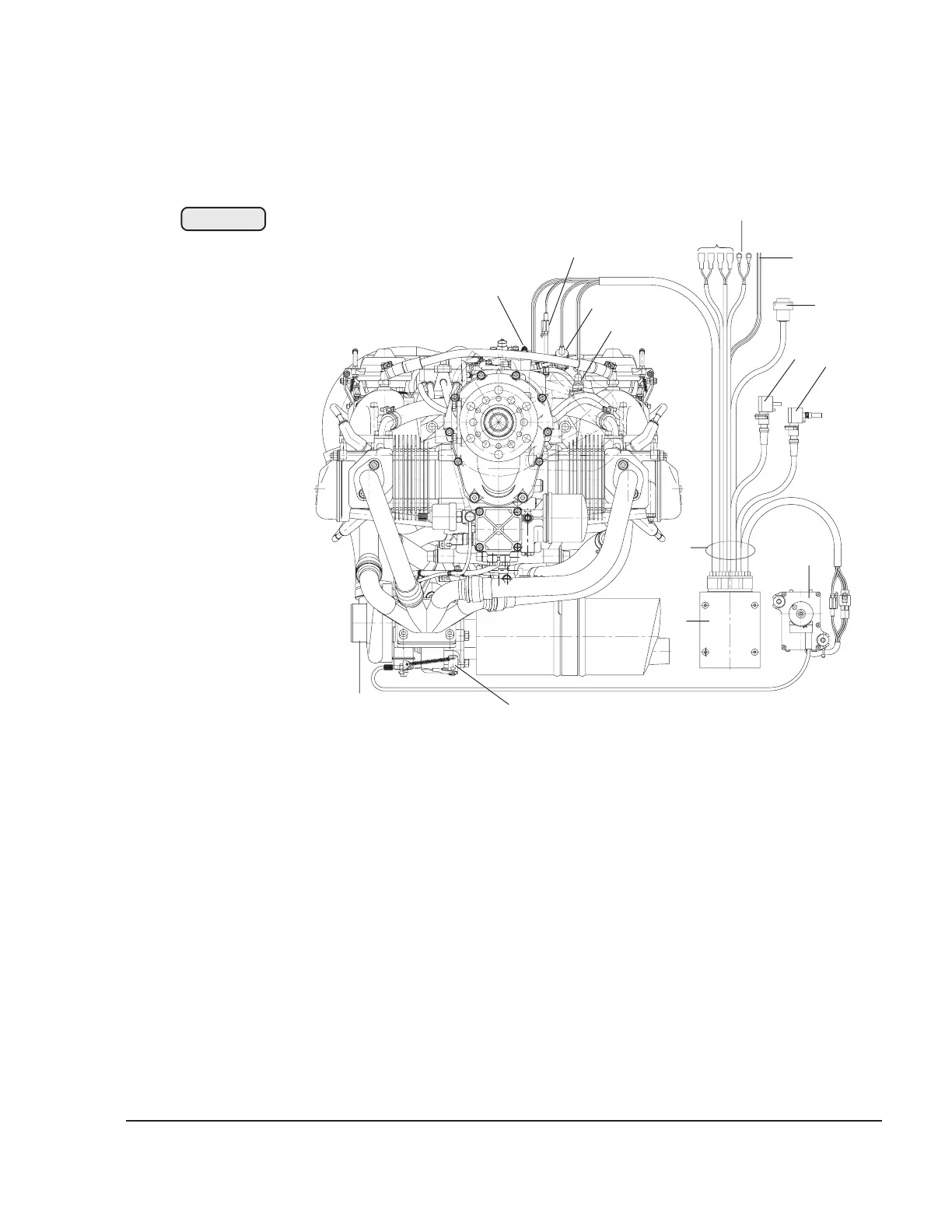

Fig. 76-5
(1) Turbocharger
(2) wastegate
(3) Servo motor
(4) TCU
(5) Ambient pressure sensor
(6) Airbox pressure sensor
(7) Throttle potentiometer
(8) to the rev pickup
(9) Resistance thermometer, Airbox temp.
(10) Wiring harness
(11) Voltage supply
(12) Lamps
(13) Three-way solenoid valve
(14) external rev counter (to tach)
(15) Rs232 interface

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
